This product has been superseded by part number C230TMD-B

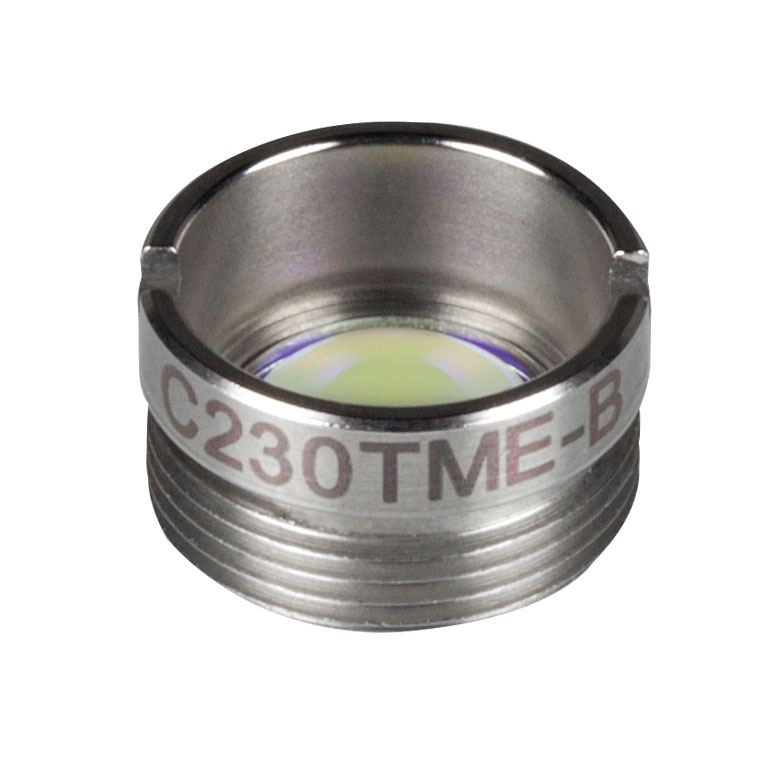

C230TME-B - f = 4.51 mm, NA = 0.55, Mounted Geltech Aspheric Lens, AR: 600-1050 nm
C230TME-B - f = 4.51 mm, NA = 0.55, Mounted Geltech Aspheric Lens, AR: 600-1050 nm
Zoom
C230TME-B
f = 4.51 mm, NA = 0.55, Mounted Geltech Aspheric Lens, AR: 600-1050 nm
Part Number:C230TME-B -Ask a technical question Ask a technical question.
Package Weight:0.04 lbs / Each
Available:Request Lead Time
RoHS:RoHS Compliant
Price: Call for Pricing
Release Date:Mar 17, 2008
This former catalog item is now offered as a special.

Drawings and Documents:
Auto CAD PDFAuto CAD PDF Copy to clipboard Share Document by Email
Auto CAD DXFAuto CAD DXF Copy to clipboard Share Document by Email
SolidworksSolidworks Copy to clipboard Share Document by Email
eDrawingeDrawing Copy to clipboard Share Document by Email
StepStep Copy to clipboard Share Document by Email
RoHSRoHS Compliant
REACH
Download all support documents
Building a Setup?
One-Click download of multiple documents available from the shopping cart. No purchase necessary.
Warranty (Subject to our General Terms and Conditions)
Two year warranty. Incorporated light sources are warrantied for the lesser of one year or (to the extent applicable) the number of hours stated in the specifications.
Share this Product Share this Product Print Friendly Print Friendly Add favorite Watch for updates
Aspheric Coefficients:
Surface
R
k
A4
A6
A8
A10
Side 2
2.96
-0.3552361
-0.0013285109
-0.000139745
-0.0000037686018
-0.000001012969
Side1
-18.73
-
-
-
-
-
