Products Home / Actuators, Adjusters, & Transducers / Adjustment Screws / Hex Adjusters, M6 x 0.25 FineHex Adjusters, M6 x 0.25 Fine

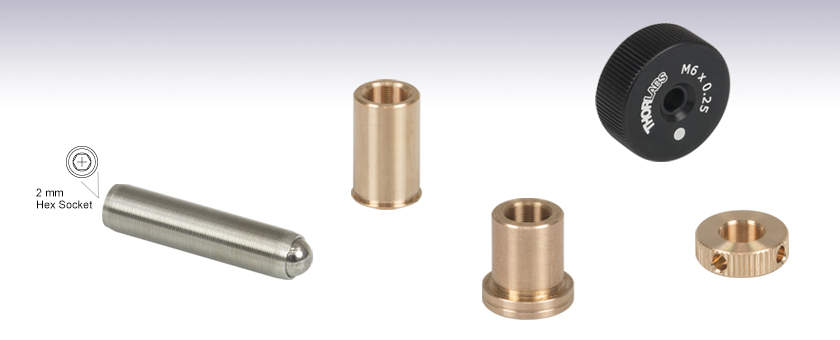

- M6 x 0.25 Hex Adjusters with Lengths from 10 mm to 50 mm
- Exceed Class 3 Thread Tolerances
- 250 µm Travel per Revolution
F6MSS25
F6MSSN1P
F6MSSA1
F6MSSK1L
LN6M25
Please Wait
| Selection Guide for Adjustment Screws |
|---|
| Imperial |
| 6-80 |
| 3/16"-100 |
| 3/16"-120 |
| 1/4"-80 |
| 1/4"-80 with Differential Adjuster |
| 1/4"-100 |
| 1/4"-100 Matched Adjuster/Bushing Pair |
| 1/4"-170 Matched Adjuster/Bushing Pair |
| 3/8"-100 |
| Metric |
| M2 x 0.20 |
| M2.5 × 0.20 |
| M3 × 0.20 |
| M3 × 0.25 |
| M4 x 0.25 |
| M6 × 0.25 |
Features
- Hex Adjusters Feature a 2 mm (5/64") Hex Socket
- Removable Adjustment Knobs Available for Hex Adjusters
- Threaded Bushings and Lock Nuts for Threading Integration
These M6 x 0.25 Hex Adjustment Screws come lubricated for smooth mating with compatible components. The adjuster body is constructed of 303 stainless steel and the ball tip is constructed using 440 stainless steel that is fixed onto the adjuster using epoxy. Each screw is individually tested with a master gauge set that ensures the interchangeability of our adjuster screws and threaded bushings. The adjustment screws also include hex sockets for a 2 mm (5/64") hex key or balldriver.
Thorlabs also offers removable adjustment knobs which thread onto an M6 x 0.25 threaded adjuster and provides a means to make fine adjustment without a hex key. Threaded bushings, an adapter for Ø3/8" barrels, and lock nuts are available to further aid the incorporation of fine adjustment in your application. The Integration tab provides additional information on using these components within optomechanical systems.
Integrating Fine Adjustment Screws Into Optomechanical Systems
The assembly process begins by producing the appropriately sized mating hole for the threaded bushing. Given the close fit between the threaded bushing and the mating adjuster screw, we caution against using a press fit to assemble these products. For our own production needs, we use a permanent anaerobic adhesive that provides excellent long-term performance.
We recommend using Loctite Anaerobic Adhesive product number 680 or equivalent. In order to ensure maximum strength between the bonded parts, we strongly urge the user to follow carefully the instructions provided by Loctite, which specify the amount of clearance between the threaded bushing and the mounting plate. The most common source of failure is not allowing for the proper clearance between the parts being bonded since this clearance provides for the proper volume of adhesive.
When assembling, apply a small amount of the Loctite adhesive to the threaded bushing only. Rotate the bushing as it is installed to ensure a uniform distribution of the adhesive. After insertion, remove any excess adhesive from around the part.
As shown in the figure to the right, the flange on the mating bushing is designed to support the axial load of the screw and bushing assembly.
OEM & Custom Precision Screws
Thorlabs manufactures custom and high volume OEM precision screws and bushings with various diameters, lengths, and threads. To inquire about custom or OEM precision screws, please contact Technical Support or use the "Contact Us" form to the right. A specialist will contact you within 24 hours or the next business day.
Precision Screw Capabilities
Thorlabs' in-house machine shop, located in Newton, NJ, gives us the ability to quickly produce large quantities of precision screws and bushings. We are equipped to manufacture screw diameters ranging from 2 mm to 20 mm with lengths up to 165 mm and a maximum thread pitch of 200 TPI. Our standard adjuster screw design has a hardened steel ball tip to provide a single point of contact; for other applications we are able to provide adjusters without the steel ball. Custom orders can be achieved on a case-by-case basis. For large orders of an item, Thorlabs passes on to the customer the cost savings associated with planned production of high volumes of that item. For more information on Thorlabs' discount pricing policy, click the "V" link to the right. We also offer a large variety of stock precision screws, which are available here.
Fast Turn-Around Times
Our experienced, highly skilled machinists are running our on-site Citizen Swiss Screw Machines 24 hours a day, allowing us to produce high-volume custom and OEM orders. Each machine is capable of running unattended, producing one screw every 30 to 120 seconds. This flexibility allows us to fulfill multiple orders at once without sacrificing quality.
High Quality
Thorlabs inspects all of our fabricated precision screws and bushings after the initial fabrication process and right before packaging. All inspections adhere to the ANSI AQL1.5 acceptable quality level, which states that if a certain percentage, based upon the amount of product in a certain lot, does not meet specification, then the entire lot is not sold. This ensures that all customers receive the highest quality product every time and that all items will be of equal performance.
Precision Screw Production
| Posted Comments: | |
user
(posted 2019-07-30 00:58:08.237) Hello, I'm a university student in Korea.
I want to buy Hex Adjusters, M6 x 0.25 sets. (F6MSS30, F6MSSK1, F6MSSN1P) But I don't know how to combine threaded bushing with Plate. How can I combine a bushing to a plate? Can you explain it to me? llamb
(posted 2019-07-31 02:35:14.0) Thank you for contacting Thorlabs. The F6MSSN1P bushing can be installed into a plate drilled out to a recommended bore diameter of 0.340" +0.001/-0.000". Please see the Integration tab for more details. I have reached out to you directly to discuss your application as well. |
Zoom
- Six Lengths Available from 10 mm to 50 mm
- 2 mm (5/64") Hex Key Compatible
- Max Load: 6.8 kg (15 lbs)
Our high precision M6 x 0.25 Fine Hex Adjusters can be adjusted with a 2 mm (5/64") hex key or with our removable adjustment knobs (sold separately below). These M6 hex adjusters have a maximum load of 6.8 kg (15 lbs).
These adjuster screws are designed to be used with M6 x 0.25 threaded bushings, available below.
Zoom- Use with M6 x 0.25 Hex Adjusters
- Clearance Hole Allows Access to Adjuster's Hex Socket
- Available in 2 Sizes
- Knurled Knob Increases Adjustment Sensitivity
The F6MSSK1 and F6MSSK1L Removable Adjustment Knobs are manufactured using anodized aluminum and thread onto our M6 x 0.25 hex adjusters to allow adjustment without the use of a hex key. This provides quick and easy adjustments for a broad range of applications. The adjuster knobs are available in two sizes: standard (Ø14.7 mm) and large (Ø21.1 mm). To install, loosely screw the knob onto the adjuster end and then use a hex key to hold the adjuster in place while using tightening the knob further.
Zoom- Ideal for Slip Fit Applications
- Material: 510 Phosphor Bronze (Vacuum Rated for 10-6 Torr)
- Recommended Bore Diameter: 0.3395" +0.0005/-0.0000"
Our F6MSSN1P M6 x 0.25 threaded bushing is commonly used in slip fit applications where fine adjusters are needed. Due to the tolerances of our fine adjusters, we discourage press fitting these bushings. The recommended bore diameter for our M6 x 0.25 bushings is 0.3395" +0.0005/-0.0000". Please see the Integration tab for more information. For vacuum applications, we recommend a thorough ultrasonic cleaning to remove any grease or particulates prior to use.
Zoom- Material: 510 Phosphor Bronze (Vacuum Rated for 10-6 Torr)
- Adapts M6 x 0.25 Adjusters to Ø3/8" Barrel Size
- Recommended Bore Diameter: 0.3740" +0.0005"/-0.0000"
These M6 x 0.25 thread to Ø3/8" barrel adapters are made from 510 Phosphor Bronze (vacuum rated for 10-6 torr). They allow our M6 x 0.25 adjusters to be used with linear translation stages that accept actuators with Ø3/8" (Ø9.5 mm) barrels. For vacuum applications, we recommend a thorough ultrasonic cleaning to remove any grease or particulates prior to use.
Zoom- Knurled Outside Diameter for Easy Tightening
- Material: 510 Phosphor Bronze
- Vacuum Compatible: 10-6 Torr
The LN6M25 lock nut features a knurled outer diameter to make gripping the nut easier when loosening or tightening. The lock nut is made from 510 Phosphor Bronze, which is vacuum rated for 10-6 Torr. Each nut features blind holes that allow a hex key to be used to help tighten the lock nut.
