Compact Fiber-Coupled OEM Terahertz Spectrometer


  • Turnkey System Operation, Ideal for OEM Integration
  • Remote Control and Data Transfer Over Network
  • Industry-Proven Ultra Stable Optical Delay Unit
  • Industry-Proven All-PM Fiber Laser Technology with Instantaneous Mode Locking

TERA-SMART

Related Items


Please Wait

Applications

  • Broadband THz Spectroscopy
  • Time-Resolved THz Spectroscopy
  • Material Characterization
  • Quality Inspection and Non-Destructive Testing
  • Inline Thickness Measurements
  • THz Combs
  • Forensic Paint Analysis
Simon Kocur
Simon Kocur
Menlo Systems
Feedback?
Questions?
Need a Quote?

Please note that the TERA-SMART is available directly from Menlo Systems, Inc. within the United States and from Menlo Systems GmbH outside the United States.
United States
Phone: +1-973-300-4490
Email: ussales@menlosystems.com
Outside United States
Phone: +49-89-189166-0
Email: sales@menlosystems.com

Features

  • All-PM Femtosecond Fiber Laser with figure 9® Technology
  • Fiber-Coupled THz Antennas for Arrangement Outside the Spectrometer Housing
  • Transmission and Reflection Scanning Geometries
  • >5 THz Bandwidth
  • >90 dB Dynamic Range
  • >850 ps Scan Range, Flexible Range and Speed Settings
  • Up to 50 Hz Scan Rate
  • Compact 19" Rack-Compatible Housing

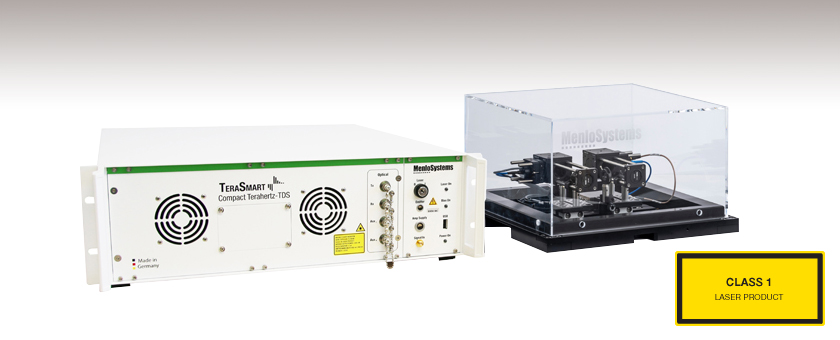

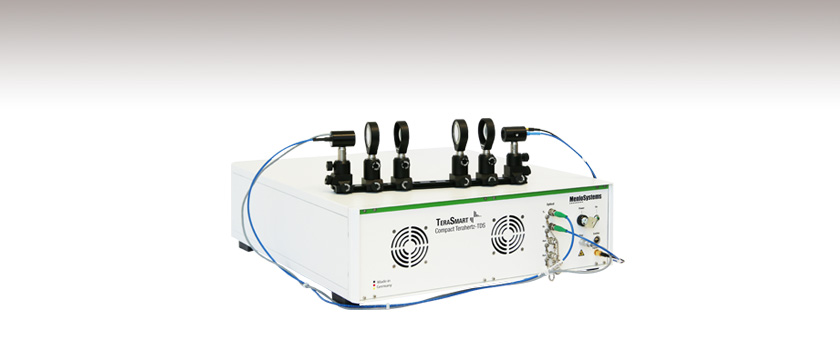

Menlo Systems' TERA-SMART compact terahertz spectrometer integrates the latest achievements in broadband terahertz time domain spectroscopy (THz-TDS) into an easy-to-use turnkey solution. It combines Menlo Systems’ latest fiber-based femtosecond laser sources featuring their figure 9® mode locking technology with their industry-proven THz components.

Based on Menlo Systems' ELMO laser platform for OEM applications, the modular design ensures a flexible configuration of the system to meet the needs for integration in any industrial or scientific environment. Custom fiber lengths to the THz emitter and THz detector are available upon request. Moreover, multibranch configurations are possible, enabling simultaneous measurements of several emitter/detector pairs using only one femtosecond fiber laser oscillator.

Rounding off the product, a smart TCP socket interface allows platform-independent remote control over ethernet connections for seamless integration into existing experiments or into industrial non-destructive testing (NDT) environments. This turnkey, OEM-integrable, THz spectrometer is engineered for 24/7 operation.

Included Components

Optical Components Measurement and Control Electronics
  • Integrated ELMO Femtosecond Laser Source
  • Integrated FIber-Coupled Optomechanical Delay Line
  • External Fiber-Coupled THz Emmiter and Receiver Modules (TERA15-FC)
  • THz TPX Polymer Lens-Based Optical Beam Path
  • Data Acquisition Platform
  • Integrated PC and Software Package for Measurement and Data Analysis
  • TCP Socket Remote Control Interface
  • Transimpedance Amplifier

Optional Packages

DUALCHANNEL
Additional THz Emitter/Detector Pair, Including Additional Laser Outputs, Electronics, and Software

MULTIBRANCH Additional Seed Ports
Seeding of Multiple Amplifiers with Optional Subsequent Frequency Conversion to Cover Multiple Wavelengths

TERA Image
Automated XY Translation Stage for THz Imaging

ImageLab
Hyperspectral Image Processing Software for THz Imaging Data

TeraLyzer
Advanced Software for Thin Sample Analysis and Parameter Extraction

Reflection Guide
Quick Manual Adjustment of Transmission and Reflection Geometry

Parabolic Mirrors
Gold-Coated Off-Axis Parabolic Mirrors for Maximum THz Bandwidth

Custom Fiber Patch Cable Length
Up to 30 m

Performance Specifications

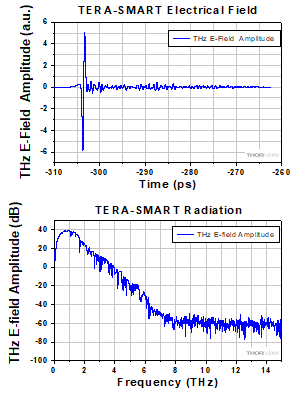

Spectral Range >5 THz (5.5 THz Typ.)
Dynamic Range >90 dB (95 dB Typ.)
Total Scan Range >850 psa
THz Frequency Resolution <1.2 GHz
Scan Rate Up to 50 Hz
Laser Output Ports for THzb Two Fiber-Coupled Ports: FC/APC, PM Fiberc
Laser Output Wavelength 1560 nm
Laser System Repetition Rate 100 MHz
  • Scanning Range and Speed Can be Adjusted
  • Allows for Optional Multichannel Extension
  • <90 fs after 2.5 m Patch Cable
EnvironmentalSpecifications
Operating Voltage 100/115/230 VAC
Frequency 50 to 60 Hz
Power Consumption <200 W
Operating Temperature 15 to 35 °C
Storage Temperature 0 to 40 °C
Humidity 80% RH (Non-Condensing Environment)
Cooling No Water-Cooling Required
Enclosure Dimensions 3U (5.25") x 19" Rack System Compatible
(448 mm x 132 mm x 495 mm)
Weight 30 kg
