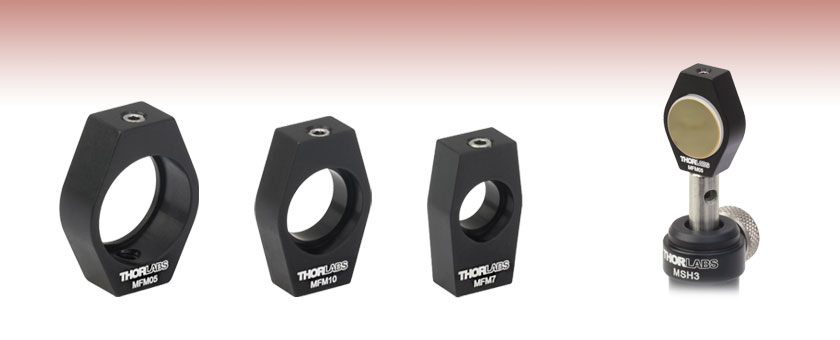

Mini-Series Fixed Mirror Mounts
Ø10 mm Bore
Ø7 mm Bore
Gold Mirror in a Post-Mounted MFM05 Mount
Click for Details

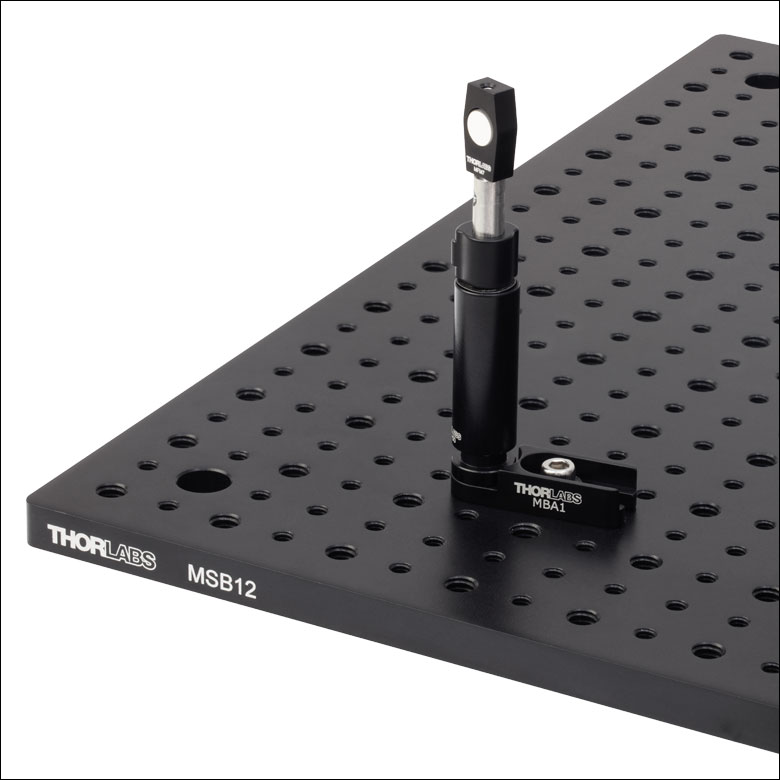

Our Mini-Series Fixed Mirror Mounts are available for Ø7 mm, Ø10 mm, or Ø1/2" optics. They feature a double-bored mounting area that provides two stable lines of contact. The rear of the optic rests against a small lip, and the optic is secured by a nylon-tipped setscrew which can be actuated by a 0.05" balldriver or hex key on the imperial mounts or a 1.5 mm balldriver or hex key on the metric mounts. These mounts are designed to provide a 10 mm optic axis height when measured from the bottom of the mount to match our Mini-Series Kinematic Mounts. The MFM05(/M) is also compatible with Ø12.5 mm optics, but the optic will not be centered in the mount. A bottom-located 4-40 (M3) tapped hole is provided to mount directly to our Ø6 mm Mini-Series posts or Ø12 mm pedestal posts. Our Mini-Series post holders allow our Ø6 mm posts to be mounted onto our Mini-Series breadboards.
