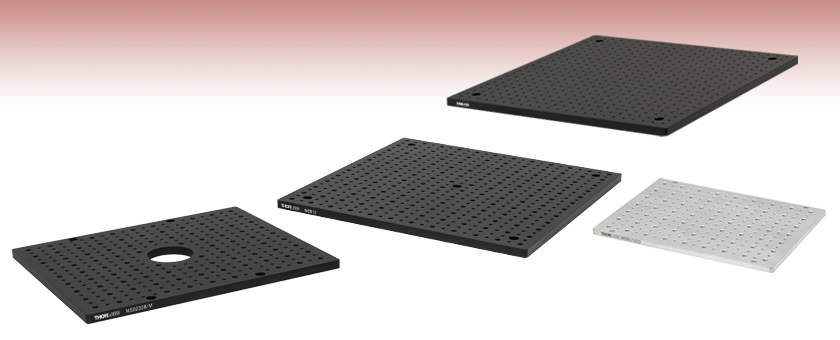

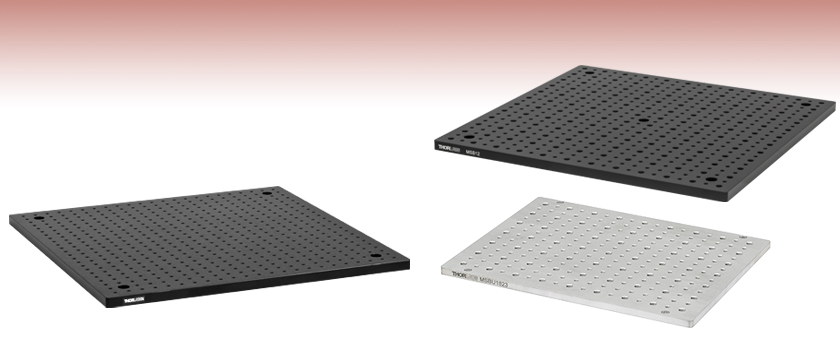

High-Density Optical Breadboards, Mini-Series and Standard Series Taps

Designed to Mount Standard and Mini-Series Components
4-40 (M3) or Both 8-32 (M4) and 1/4"-20 (M6) Mounting Holes
Versions for Electronics Enclosures or Imaging Systems
Matte Black Anodized or Unanodized Finish

MSB1218

12" x 18"
8-32 and 1/4"-20 Taps
0.5" Spacing

MBY12

12" x 12"
4-40 Taps
0.4" Spacing

MSBU1823

180 mm x 230 mm
8-32 and 1/4"-20 Taps
Unanodized Surface

MSB2328/M

230 mm x 280 mm
8-32 and 1/4"-20 Taps
Ø50.0 mm Central Access Aperture

Counterbored Ø1/4" (M6)
Mounting Holes

Please Wait

Overview
Feedback
BB Selection Guide

Click for Details

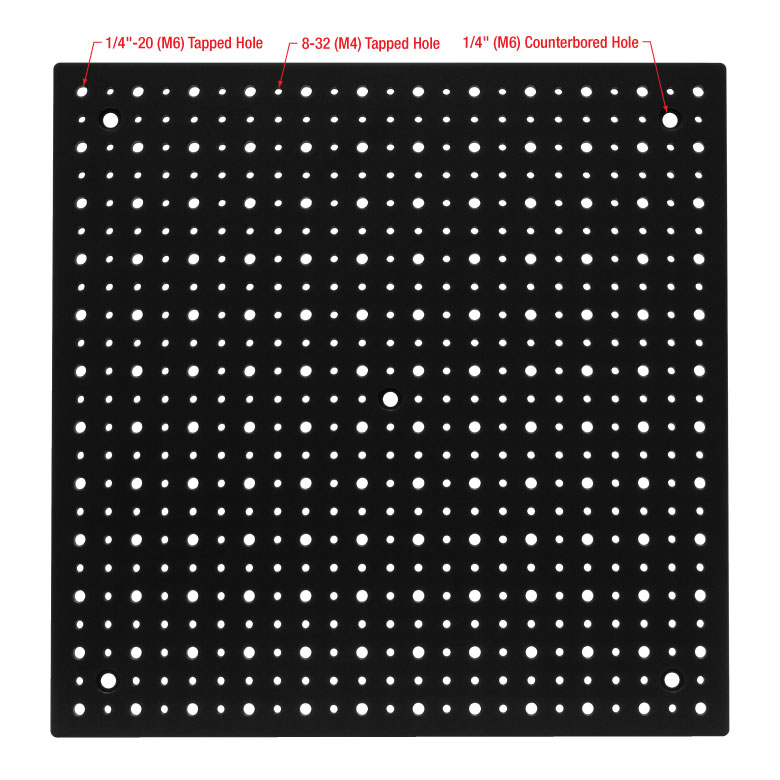

Figure 1.2 A fifth mounting hole in the middle of larger breadboards increases rigidity and reduces stress when mounting heavy loads.

Click to Enlarge

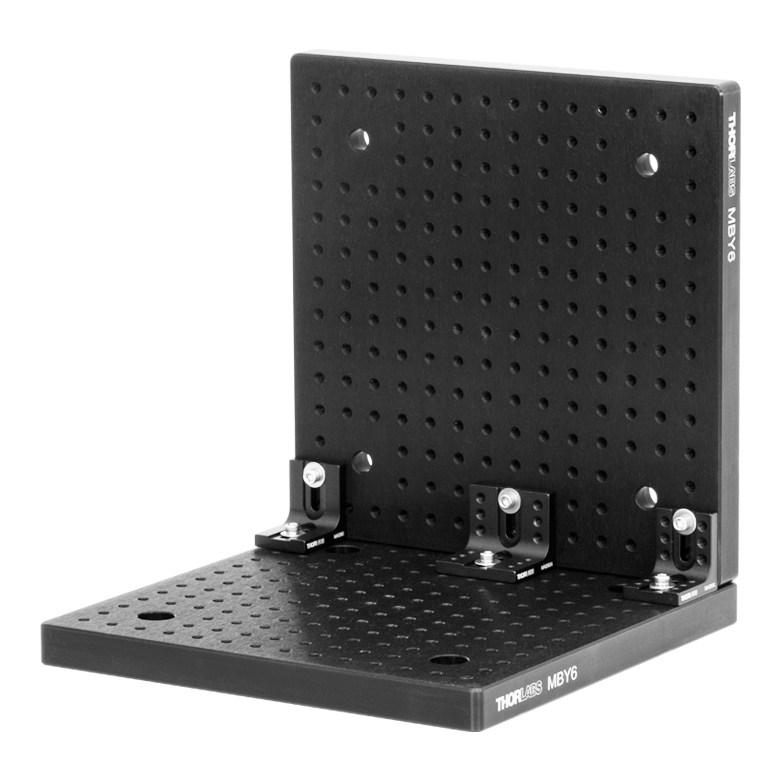

Figure 1.1 Mini-Series Right-Angle Brackets can hold Mini-Series Breadboards at 90°

Features

High-Density 0.4" or 1/2" (10.0 mm or 12.5 mm) Hole Spacing
Two Imperial (Metric) Threaded Hole Options:
- 4-40 (M3) Taps for Mini-Series Components
- 8-32 (M4) and 1/4"-20 (M6) Taps for Both Standard and Mini-Series Components
Counterbores for Mounting Breadboards to Optical Tables, on Mounting Feet, Inside Electronics Enclosures, or on Imaging Systems
Black Anodized Solid Aluminum Construction Minimizes Reflectance
- Unanodized Breadboards for Electronics Enclosures Also Available
Double-Density and Standard 1/4"-20 (M6) Tapped Versions Also Available
Custom Breadboards Available; Contact Tech Support

Thorlabs' Mini-Series breadboards, designed for setups where space is a premium, offer increased tapped hole density with 0.4" or 0.5" (10.0 mm or 12.5 mm) spacing. These high-density breadboards are offered with either 4-40 (M3) tapped holes or both 8-32 (M4) and 1/4"-20 (M6) tapped holes.

Our Mini-Series line consists of components that are compatible with 4-40 (M3) or 8-32 (M4) threads. Breadboards with 4-40 (M3) taps are compatible with smaller Mini-Series components, such as our Ø6 mm posts. Our other breadboards are compatible with 8-32 (M4) Mini-Series components, such as our Ø12 mm pedestal posts and MSL post holders, and also include 1/4"-20 (M6) taps for integrating larger optomechanical components, such as our Ø1/2", Ø1", and Ø1.5" post assemblies.

Each breadboard features two, four, or five counterbored mounting holes, depending on the size of the board, enabling these breadboards to be mounted onto our standard breadboards, mounting feet, or post assemblies. For breadboards that have a fifth counterbored hole, it is located at the center of the breadboard to reduce stress at the four corners and to increase system rigidity when mounted. Refer to the tables below for more specifications.

We also offer a selection of breadboards with 8-32 (M4) and 1/4"-20 (M6) mounting holes designed for use with Thorlabs' Customizable Electronics Enclosures or LCC7201C Birefringence Imaging System. These breadboards have counterbored mounting holes positioned to allow the breadboards to be mounted directly into the compatible system. The breadboards for the imaging systems also feature a Ø1.97" (Ø50.0 mm) central aperture aligned with the optical axis of the imaging system.

Custom Breadboards
We offer a service for custom breadboard orders, with options that include hole pattern and spacing, size, thickness, and anodizing. For a quote, please use our contact Tech Sales.

Posted Comments:

Thomas Nørskov Stoustrup (posted 2022-04-05 11:37:04.8)

Hey Thorlabs I am mounting components that use two M4 taps next to each other (in order to secure alignment). For this, a "pure M4 edition" of the "Breadboards with 8-32 (M4) and 1/4"-20 (M6) Taps" would offer greatly enhanced flexibility. That is, an edition where all M6 taps are replaced by M4 taps. Best regards Thomas

cwright (posted 2022-04-06 08:57:08.0)

Response from Charles at Thorlabs: Thank you for your query. I can see how this could be helpful and it is something we can perhaps offer as a custom item. Since you opted not to be contacted, please contact your local technical support team if you would be interested in a quote. Our contact details can be found here: https://www.thorlabs.com/supportcontact.cfm

Breadboards	Nexus, Optimized Damping	Intrinsically Damped	Aluminum Honeycomb	Stainless Steel	Solid Aluminum
Construction
Breadboard Thickness	60 mm (2.4") 110 mm (4.3")	58 mm (2.28")	25 mm (0.98") 55 mm (2.2")	12.7 mm (0.5")	7.0 mm (0.28") 9.5 mm (0.375") 12.7 mm (0.5") 19.05 mm (0.75")
Working Surface	4003 Grade Stainless Steel or 304L Grade Non-Magnetic Steel Top Plate	4003 Grade Stainless Steel Top Plate	Aluminum	416 Grade Stainless Steel	Solid Aluminum Anodized or Unanodized
Top Skin	5 mm (0.20")	5 mm (0.20")	6 mm (0.24")	N/A	N/A
Bottom Skin	5 mm (0.20")	3 mm (0.12")	3 mm (0.12")	N/A	N/A
Core Design	High-Density Plated Steel Honeycomb, 0.26 mm Thick		High-Density Plated Aluminum Honeycomb	N/A	N/A
Side Panels	Rigid Steel Box Section	Unplasticized Polyvinyl Chloride (uPVC)	Black Laminated Aluminum Sides	N/A	N/A
Ferromagnetism	Magnetic or Non-Magnetic Options	Magnetic	Non-Magnetic	Magnetic	Non-Magnetic
Sealed Holes	Sealed (25 mm Depth) or Non-Sealed Options	Non-Sealed		N/A	N/A
Thread Options	1/4"-20 (M6) Tapped Holes	1/4"-20 (M6) Tapped Holes		1/4"-20 (M6) Tapped Holes	4-40 (M3), 8-32 (M4) and 1/4"-20 (M6), or 1/4"-20 (M6) Tapped Holes
Spacing	1" (25 mm) Centers	1" (25 mm) Centers		1" (25 mm) Centers	0.4" (10 mm) Centers, 0.5" (12.5 mm) Centers, or 1" (25 mm) Centers
Distance from Edge to First Holes	0.5" (12.5 mm) on all Sides		0.5" (12.5 mm) or 1.0" (25 mm) on all Sides	0.5" (12.5 mm) on all Sides	0.4" (10 mm) on all Sides or 0.5" (12.5 mm) on all Sides
Performance^a
Damping				N/A	N/A
Stiffness	60 mm (2.4") Thick	58 mm (2.28") Thick	25 mm (0.98") Thick	12.7 mm (0.5") Thick	7.0 mm (0.28") Thick
Stiffness	110 mm (4.3") Thick	58 mm (2.28") Thick	55 mm (2.2") Thick	12.7 mm (0.5") Thick	19.05 mm (0.75") Thick

The damping and stiffness performance shown here is qualitative and does not relate to exact specifications of each breadboard.

Optical Breadboard Selection Guides

Table 10A and Table 10B list every size offered for our honeycomb, solid aluminum, and acrylic breadboards. Simply locate the specific width and length needed and then select the type of breadboard. Expand each table by clicking the More [+] button within the header.

Thorlabs also offers several unique breadboard solutions. For applications requiring temperature control, we offer aluminum liquid-cooled breadboards and baseplates in several sizes, in addition to a temperature-controlled mini-series breadboard for small-scale applications. Our anodized aluminum large-area translation stages and rotating breadboards offer hand-operated positioning control, while our manual and motorized translating mounting platforms are ideal for use in microscopy applications.

Table 10A Imperial Optical Breadboard Size Options
Width	Length	Honeycomb					Stainless Steel	Solid Aluminum^a
Width	Length	Nexus (60 mm Thick)^b	Nexus (110 mm Thick)^b	Intrinsically Damped (58 mm Thick)	Aluminum (25 mm Thick)	Aluminum (55 mm Thick)	Stainless Steel	Standard	Double Density	High Density

Solid aluminum breadboards are offered with four different thicknesses: 0.5" (Item # prefix MB), 0.75" (Item # prefix MBH), 3/8" (Item # prefix MS), or 0.28" (Item # prefix MS). Select sizes are also available without an anodized coating (Item #s ending with U).
Item Number Suffix:

F, A, B, or G: Non-Sealed Mounting Holes
T, L, U, or N: Sealed Mounting Holes
FN or AN: Non-Magnetic Mounting Holes
Y or Z: No Mounting Holes
S: Stainless Steel

Tapped Hole Pattern Aligned at 45°
Build-to-Order
Includes a T-Slot in Side Panels for Compatibility with 25 mm Rail Accessories
This product has an access aperture.

Table 10B Metric Optical Breadboard Size Options
Width	Length	Honeycomb					Stainless Steel	Solid Aluminum^a
Width	Length	Nexus (60 mm Thick)^b	Nexus (110 mm Thick)^b	Intrinsically Damped (58 mm Thick)	Aluminum (25 mm Thick)	Aluminum (55 mm Thick)	Stainless Steel	Standard	Double Density	High Density

50 mm	75 mm	-	-	-	-	-	-	-	-	MSB5075/M
75 mm	100 mm	-	-	-	-	-	-	-	-	MSB7510/M
75 mm	150 mm	-	-	-	-	-	-	-	-	MSB7515/M
100 mm	100 mm	-	-	-	-	-	MB10S/M	-	-	-
100 mm	150 mm	-	-	-	-	-	MB1015S/M	MB1015/M MB1015U/M	M45B1015/M^c	MSB1015/M
100 mm	300 mm	-	-	-	-	-	-	MB1030/M	-	-
100 mm	600 mm	-	-	-	-	-	-	-	MB1060/M	-
100 mm	900 mm	-	-	-	-	-	-	-	MB1090/M	-
Ø149 mm		-	-	-	-	-	-	-	MBR150U/M	-
Ø150 mm		-	-	-	-	-	-	-	MBR150/M	-
150 mm	150 mm	-	-	-	-	-	MB15S/M	MB1515/M MB1515U/M	M45B1515/M^c	MBY1515/M MSB15/M
150 mm	300 mm	-	-	-	-	-	-	MB1530F/M	MB1530/M M45B1530/M^c	-
150 mm	450 mm	-	-	-	-	-	-	MB1545/M	-	-
150 mm	600 mm	-	-	-	-	-	-	MB1560/M	-	-
150 mm	900 mm	-	-	-	-	-	-	MB1590/M	-	-
150 mm	1200 mm	-	-	-	-	-	-	MB15120/M	-	-
180 mm	230 mm	-	-	-	-	-	-	-	-	MSB1823/M MSBU1823/M
200 mm	200 mm	-	-	-	-	-	-	MB2020/M MB2020U/M	-	-
200 mm	250 mm	-	-	-	-	-	-	MB2025/M	-	-
200 mm	600 mm	-	-	-	-	-	-	-	MB2060/M	-
200 mm	900 mm	-	-	-	-	-	-	-	MB2090/M	-
250 mm	300 mm	-	-	-	-	-	-	MB2530/M MB2530U/M	-	-
Ø300 mm		-	-	-	-	-	-	-	MBR300/M MBR300U/M	-
300 mm	300 mm	B3030A^d B3030L^d	-	-	PBG3030A^e	-	-	MB3030/M MB3030U/M	MB3030D/M	MBY3030/M MSB30/M MS12B/M
300 mm	450 mm	B3045A^d B3045L^d	-	B3045AX	PBG3045A^e	-	-	MB3045/M MB3045A/M^f MB3045U/M	-	MBY3045/M MSB3045/M
300 mm	600 mm	B3060A^d B3060L	-	B3060AX^d	PBG3060A	PBG52502^d	-	MB3060/M MB3060U/M	-	-
300 mm	900 mm	B3090A^d B3090L^d	-	-	PBG3090A^e	PBG52503^d	-	MB3090/M	-	-
300 mm	1200 mm	-	-	-	-	-	-	MB30120/M	-	-
350 mm	1150 mm	-	-	-	-	-	-	MB35115/M	-	-
350 mm	1425 mm	-	-	-	-	-	-	MB35142/M	-	-
450 mm	450 mm	B4545A^d B4545L^d	-	-	PBG4545A	-	-	MB4545/M	-	-
450 mm	600 mm	B4560A^d B4560L^d	-	B4560AX^d	PBG4560A^e	PBG52522^d	-	MB4560/M MB4560A/M^f MB4560U/M	-	-
450 mm	750 mm	-	-	-	-	-	-	MB4575/M	-	-
450 mm	900 mm	-	-	-	-	-	-	MB4590/M	-	-
600 mm	600 mm	B6060A^d B6060L	-	B6060AX^d	PBG6060A^e	PBG52505^d	-	MB6060/M	-
600 mm	900 mm	B6090A B6090L B6090AN^d B6090Z	B6090B^d B6090N^d	B6090AX	PBG6090A^e	PBG52506^d	-	MB6090/M	-	-
600 mm	1200 mm	B60120A B60120L	B60120B^d B60120N^d	B60120AX	PBG60120A^e	-	-	MB60120/M	-	-
600 mm	1500 mm	-	B60150B^d B60150N^d	-	-	PBG52508^d	-	-	-	-
750 mm	750 mm	B7575A B7575L	-	-	-	-	-	MB7575/M	-	-
750 mm	900 mm	B7590A B7590L B7590AN^d B7590Z	B7590B^d B7590N^d	B7590AX	PBG7590A^e	PBG52510^d	-	-	-	-
750 mm	1200 mm	B75120A B75120L B75120AN^d B75120Z	B75120B B75120N^d	B75120AX	PBG75120A^e	PBG52511	-	-	-	-
750 mm	1500 mm	-	B75150B B75150N	B75150AX	-	-	-	-	-	-
900 mm	900 mm	B9090A B9090L	B9090B^d B9090N^d	-	-	-	-	-	-	-
900 mm	1200 mm	B90120A B90120L B90120AN B90120Z	B90120B B90120N	B90120AX	PBG90120A^e	PBG52513	-	-	-	-
900 mm	1500 mm	-	B90150B B90150N	B90150AX	-	PBG52514	-	-	-	-
900 mm	1800 mm	-	B90180B B90180N	B90180AX	-	-	-	-	-	-
1200 mm	1500 mm	-	B120150B^d B120150N^d	-	-	-	-	-	-	-
1200 mm	1800 mm	-	B120180B B120180N^d	-	-	-	-	-	-	-

Solid aluminum breadboards are offered with four different thicknesses: 12.7 mm (Item # prefix MB), 19.05 mm (Item # prefix MBH), 9.5 mm (Item # prefix MS), or 7.0 mm (Item # prefix MS). Select sizes are also available without an anodized coating (Item #s ending with U).
Item Number Suffix:

F, A, B, or G: Non-Sealed Mounting Holes
T, L, U, or N: Sealed Mounting Holes
FN or AN: Non-Magnetic Mounting Holes
Y or Z: No Mounting Holes
S: Stainless Steel

Tapped Hole Pattern Aligned at 45°
Build-to-Order
Includes a T-Slot in Side Panels for Compatibility with 25 mm Rail Accessories
This product has an access aperture.

Breadboards with 4-40 (M3) Taps

Table G1.1 Imperial Breadboards
Item #	Top Surface Dimensions	Breadboard Thickness	Hole Threading and Spacing	Distance from Edge to First Hole	Number of Counterbored Holes	Material	Finish	Flatness
MBY6	6" x 6"	1/2"	4-40 Tapped Holes on 0.4" Centers	0.4" on All Sides	Four 1/4"^a	Aluminum Plate	Matte Black Anodized	0.006" (0.15 mm) over 1 ft² (0.09 m²)
MS12B	12" x 12"	3/8"	4-40 Tapped Holes on 0.5" Centers	0.5" on All Sides	Four 1/4"^a	Aluminum Plate	Matte Black Anodized	0.015" (0.38 mm) over 1 ft² (0.09 m²)
MBY12	12" x 12"	1/2"	4-40 Tapped Holes on 0.4" Centers	0.4" on All Sides	Five 1/4"^a,b	Aluminum Plate	Matte Black Anodized	0.006" (0.15 mm) over 1 ft² (0.09 m²)
MBY1218	12" x 18"	1/2"	4-40 Tapped Holes on 0.4" Centers	0.4" on All Sides	Five 1/4"^a,b	Aluminum Plate	Matte Black Anodized	0.006" (0.15 mm) over 1 ft² (0.09 m²)

One counterbored hole is located at each corner with a 1" inset.
The fifth counterbored mounting hole is located at the center of the breadboard.

Table G1.2 Metric Breadboards
Item #	Top Surface Dimensions	Breadboard Thickness	Hole Threading and Spacing	Distance from Edge to First Hole	Number of Counterbored Holes	Material	Finish	Flatness
MBY1515/M	150 mm x 150 mm	12.7 mm	M3 Tapped Holes on 10.0 mm Centers	10.0 mm on All Sides	Four M6^a	Aluminum Plate	Matte Black Anodized	0.15 mm (0.006") over 0.09 m² (1 ft²)
MS12B/M	300 mm x 300 mm	9.5 mm	M3 Tapped Holes on 12.5 mm Centers	12.5 mm on All Sides	Four M6^a	Aluminum Plate	Matte Black Anodized	0.38 mm (0.015") over 0.09 m² (1 ft²)
MBY3030/M	300 mm x 300 mm	12.7 mm	M3 Tapped Holes on 10.0 mm Centers	10.0 mm on All Sides	Five M6^a,b	Aluminum Plate	Matte Black Anodized	0.15 mm (0.006") over 0.09 m² (1 ft²)
MBY3045/M	300 mm x 450 mm	12.7 mm	M3 Tapped Holes on 10.0 mm Centers	10.0 mm on All Sides	Five M6^a,b	Aluminum Plate	Matte Black Anodized	0.15 mm (0.006") over 0.09 m² (1 ft²)

One counterbored hole is located at each corner with a 25 mm inset.
The fifth counterbored mounting hole is located at the center of the breadboard.

Based on your currency / country selection, your order will ship from Newton, New Jersey

+1 Qty Docs Part Number - Imperial Price Available

MBY6	Customer Inspired! 6" x 6" x 1/2" Mini-Series Aluminum Breadboard, 4-40 Taps on 0.4" Centers

$173.34

Today

MS12B 12" x 12" x 3/8" Mini-Series Aluminum Breadboard, 4-40 Taps on 0.5" Centers

$334.31

Today

MBY12 Customer Inspired! 12" x 12" x 1/2" Mini-Series Aluminum Breadboard, 4-40 Taps on 0.4" Centers

$369.15

Today

MBY1218 Customer Inspired! 12" x 18" x 1/2" Mini-Series Aluminum Breadboard, 4-40 Taps on 0.4" Centers

$481.50

Today

+1 Qty Docs Part Number - Metric Price Available

MBY1515/M Customer Inspired! 150 mm x 150 mm x 12.7 mm Mini-Series Aluminum Breadboard, M3 Taps on 10 mm Centers

$173.34

Today

MS12B/M 300 mm x 300 mm x 9.5 mm Mini-Series Aluminum Breadboard, M3 Taps on 12.5 mm Centers

$334.31

Today

MBY3030/M Customer Inspired! 300 mm x 300 mm x 12.7 mm Mini-Series Aluminum Breadboard, M3 Taps on 10 mm Centers

$369.15

Today

MBY3045/M Customer Inspired! 300 mm x 450 mm x 12.7 mm Mini-Series Aluminum Breadboard, M3 Taps on 10 mm Centers

$481.50

Today

Breadboards with 8-32 (M4) and 1/4"-20 (M6) Taps

Table G2.1 Imperial Breadboards
Item #	Top Surface Dimensions	Breadboard Thickness	Hole Threading and Spacing	Distance from Edge to First Hole	Number of Counterbored Holes	Material	Finish	Flatness
MSB23	2" x 3"	3/8"	8-32 Taps with 0.5" Spacing & 1/4"-20 Taps with 1" Spacing^a	0.5" on All Sides	Two 1/4"^b	Aluminum Plate	Matte Black Anodized	0.015" (0.38 mm) over 1 ft² (0.09 m²)
MSB34	3" x 4"				Four 1/4"^b
MSB36	3" x 6"
MSB46	4" x 6"
MSB6	6" x 6"
MSB12	12" x 12"				Five 1/4"^b,c
MSB1218	12" x 18"				Five 1/4"^b,c

Note that the 8-32 and 1/4"-20 grids overlap. See Figure 1.1.
Inset from the Corners by 1"
The fifth counterbored hole is located at the center of the breadboard.

Table G2.2 Metric Breadboards
Item #	Top Surface Dimensions	Breadboard Thickness	Hole Threading and Spacing	Distance from Edge to First Hole	Number of Counterbored Holes	Material	Finish	Flatness
MSB5075/M	50 mm x 75 mm	9.5 mm	M4 Taps with 12.5 mm Spacing & M6 Taps with 25 mm Spacing^a	12.5 mm on All Sides	Two M6^b	Aluminum Plate	Matte Black Anodized	0.015" (0.38 mm) over 1 ft² (0.09 m²)
MSB7510/M	75 mm x 100 mm				Four M6^b
MSB7515/M	75 mm x 150 mm
MSB1015/M	100 mm x 150 mm
MSB15/M	150 mm x 150 mm
MSB30/M	300 mm x 300 mm				Five M6^b,c
MSB3045/M	300 mm x 450 mm				Five M6^b,c

Note that the M4 and M6 grids overlap. See Figure 1.1.
Inset from the Corners by 25 mm
The fifth counterbored hole is located at the center of the breadboard.

Based on your currency / country selection, your order will ship from Newton, New Jersey

+1 Qty Docs Part Number - Imperial Price Available

MSB23 2" x 3" x 3/8" Mini-Series Aluminum Breadboard, 8-32 and 1/4"-20 High-Density Taps

$33.27

Today

MSB34 3" x 4" x 3/8" Mini-Series Aluminum Breadboard, 8-32 and 1/4"-20 High-Density Taps

$45.25

Today

MSB36 3" x 6" x 3/8" Mini-Series Aluminum Breadboard, 8-32 and 1/4"-20 High-Density Taps

$58.56

Today

MSB46 4" x 6" x 3/8" Mini-Series Aluminum Breadboard, 8-32 and 1/4"-20 High-Density Taps

$73.19

Today

MSB6	6" x 6" x 3/8" Mini-Series Aluminum Breadboard, 8-32 and 1/4"-20 High-Density Taps

$91.83

Today

MSB12 12" x 12" x 3/8" Mini-Series Aluminum Breadboard, 8-32 and 1/4"-20 High-Density Taps

$294.11

Lead Time

MSB1218 12" x 18" x 3/8" Mini-Series Aluminum Breadboard, 8-32 and 1/4"-20 High-Density Taps

$459.48

Today

+1 Qty Docs Part Number - Metric Price Available

MSB5075/M 50 mm x 75 mm x 9.5 mm Mini-Series Aluminum Breadboard, M4 and M6 High-Density Taps

$33.27

Today

MSB7510/M 75 mm x 100 mm x 9.5 mm Mini-Series Aluminum Breadboard, M4 and M6 High-Density Taps

$45.25

Today

MSB7515/M 75 mm x 150 mm x 9.5 mm Mini-Series Aluminum Breadboard, M4 and M6 High-Density Taps

$58.56

Today

MSB1015/M 100 mm x 150 mm x 9.5 mm Mini-Series Aluminum Breadboard, M4 and M6 High-Density Taps

$73.19

Today

MSB15/M 150 mm x 150 mm x 9.5 mm Mini-Series Aluminum Breadboard, M4 and M6 High-Density Taps

$91.83

Today

MSB30/M 300 mm x 300 mm x 9.5 mm Mini-Series Aluminum Breadboard, M4 and M6 High-Density Taps

$294.11

Today

MSB3045/M 300 mm x 450 mm x 9.5 mm Mini-Series Aluminum Breadboard, M4 and M6 High-Density Taps

$459.48

Today

Breadboards for Electronics Enclosures, 8-32 (M4) and 1/4"-20 (M6) Taps

The MSB1823(/M) and MSBU1823(/M) breadboards are designed to fit inside the EC2030A(R) or EC2030B(R) benchtop enclosures for custom electronics, and the MSBU3038(/M) breadboard is designed to fit inside the EC2U and EC3U 19" rack enclosures for custom electronics.The MSB1823(/M) and MSBU1823(/M) have a thickness of 0.28" (7.0 mm) while the MSBU3038(/M) has a thickness of 0.37" (9.5 mm). In addition, these breadboards have four M3 counterbored mounting holes for compatibility with the enclosure, rather than 1/4" (M6) counterbored holes. See Tables G3.1 and G3.2 for specifications, and see the PDF drawings for details by clicking on the red Docs icons ( info icon ) below.

Table G3.1 Imperial Breadboards
Item #	Top Surface Dimensions	Breadboard Thickness	Hole Threading and Spacing	Distance from Edge to First Hole	Number of Counterbored Holes	Material	Finish	Flatness
MSB1823	7.09" x 9.06"	0.28"	8-32 Taps with 0.5" Spacing & 1/4"-20 Taps with 1" Spacing^a	0.54" and 0.53", Two Sides Each	Four M3^b	Aluminum Plate	Matte Black Anodized	±0.006" (0.15 mm) over Entire Surface
MSBU1823	7.09" x 9.06"	0.28"		0.54" and 0.53", Two Sides Each	Four M3^b	Aluminum Plate	None	±0.006" (0.15 mm) over Entire Surface
MSBU3038	15.00" x 11.98"	0.37"	8-32 Taps with 0.5" Spacing & 1/4"-20 Taps with 1" Spacing^a	0.5" on All Sides	Four M3^c	Aluminum Plate	None	±0.012" (0.3 mm) over Entire Surface

Note that the 8-32 and 1/4"-20 grids overlap. See Figure 1.1.
Aligned with Taps in EC2030 Enclosures
Aligned with Taps in EC2U and EC3U Enclosures

Table G3.2 Metric Breadboards
Item #	Top Surface Dimensions	Breadboard Thickness	Hole Threading and Spacing	Distance from Edge to First Hole	Number of Counterbored Holes	Material	Finish	Flatness
MSB1823/M	180.0 mm x 230.0 mm	7.0 mm	M4 Taps with 12.5 mm Spacing & M6 Taps with 25 mm Spacing^a	15.0 mm on All Sides	Four M3^b	Aluminum Plate	Matte Black Anodized	±0.006" (0.15 mm) over Entire Surface
MSBU1823/M	180.0 mm x 230.0 mm	7.0 mm	M4 Taps with 12.5 mm Spacing & M6 Taps with 25 mm Spacing^a	15.0 mm on All Sides	Four M3^b	Aluminum Plate	None	±0.006" (0.15 mm) over Entire Surface
MSBU3038/M	375.4 mm x 304.3 mm	9.5 mm	M4 Taps with 12.5 mm Spacing & M6 Taps with 25 mm Spacing^a	12.9 mm and 14.9 mm, Two Sides Each	Four M3^c	Aluminum Plate	None	±0.012" (0.3 mm) over Entire Surface

Note that the M4 and M6 grids overlap. See Figure 1.1.
Aligned with Taps in EC2030 Enclosures
Aligned with Taps in EC2U and EC3U Enclosures

Based on your currency / country selection, your order will ship from Newton, New Jersey

+1 Qty Docs Part Number - Imperial Price Available

MSB1823 Aluminum Breadboard for EC2030 Enclosures, 7.09" x 9.06" x 0.28", 8-32 and 1/4"-20 High-Density Taps

$152.04

Today

MSBU1823 Unanodized Aluminum Breadboard for EC2030 Enclosures, 7.09" x 9.06" x 0.28", 8-32 and 1/4"-20 High-Density Taps

$137.08

Today

MSBU3038 Aluminum Breadboard for 19" Rack Enclosures, 15.00" x 11.98" x 0.37", 8-32 and 1/4"-20 Taps

$411.36

Today

+1 Qty Docs Part Number - Metric Price Available

MSB1823/M Aluminum Breadboard for EC2030 Enclosures, 180 mm x 230 mm x 7 mm, M4 and M6 High-Density Taps

$152.04

Today

MSBU1823/M Unanodized Aluminum Breadboard for EC2030 Enclosures, 180 mm x 230 mm x 7 mm, M4 and M6 High-Density Taps

$137.08

Today

MSBU3038/M Aluminum Breadboard for 19" Rack Enclosures, 375.4 mm x 304.3 mm x 9.5 mm, M4 and M6 Taps

$411.36

Today

Breadboards for Imaging Systems, Access Aperture and 8-32 (M4) and 1/4"-20 (M6) Taps

The MSB2328(/M) breadboards are designed for use with Thorlabs' LCC7201C Birefringence Imaging System. They each have a thickness of 0.37” (9.5 mm), and the four mounting counterbores are positioned to allow the breadboards to be mounted in the LCC7201C system. These breadboards have a Ø1.97" (Ø50.0 mm) central access aperture aligned with the optical axis of this imaging system.

Table G4.1 Imperial Breadboard
Item #	Top Surface Dimensions	Breadboard Thickness	Central Aperture Diameter	Hole Threading and Spacing	Distance from Edge to First Hole	Number of Counterbored Holes	Material	Finish	Flatness
MSB2328	9.06" x 11.02"	0.37"	1.97"	8-32 Taps with 1/2" Spacing and 1/4"-20 Taps with 1" Spacing^a	0.51" from the Short Edges and 0.53" from the Long Edges	Four M5^b	Aluminum Plate	Matte Black Anodized	±0.010" (0.25 mm) over Entire Surface

Note that the 8-32 and 1/4"-20 grids overlap. See Figure 1.1.
Aligned with Taps in LCC7201C Birefringence Imaging System

Table G4.2 Metric Breadboard
Item #	Top Surface Dimensions	Breadboard Thickness	Central Aperture Diameter	Hole Threading and Spacing	Distance from Edge to First Hole	Number of Counterbored Holes	Material	Finish	Flatness
MSB2328/M	230 mm x 280 mm	9.5 mm	50.0 mm	M4 Taps with 12.5 mm Spacing and M6 Taps with 25 mm Spacing^a	15 mm on All Sides	Four M5^b	Aluminum Plate	Matte Black Anodized	±0.010" (0.25 mm) over Entire Surface

Note that the M4 and M6 grids overlap. See Figure 1.1.
Aligned with Taps in LCC7201C Birefringence Imaging System

2"	3"	-	-	-	-	-	-	-	-	MSB23
3"	4"	-	-	-	-	-	-	-	-	MSB34
3"	6"	-	-	-	-	-	-	-	-	MSB36
4"	4"	-	-	-	-	-	MB4S	MB4U	-	-
4"	6"	-	-	-	-	-	MB46S	MB4	M45B4^c	MSB46
4"	12"	-	-	-	-	-	-	MB412	-	-
4"	24"	-	-	-	-	-	-	-	MB424	-
4"	36"	-	-	-	-	-	-	-	MB436	-
Ø5.87"		-	-	-	-	-	-	-	MBR6U	-
Ø6"		-	-	-	-	-	-		MBR6	-
6"	6"	-	-	-	-	-	MB6S	MB6 MB6U	M45B6^c	MBY6 MSB6
6"	12"	-	-	-	-	-	-	MB612F	MB612 M45B612^c	-
6"	18"	-	-	-	-	-	-	MB618	-	-
6"	24"	-	-	-	-	-	-	MB624	-	-
6"	36"	-	-	-	-	-	-	MB636	-	-
6"	48"	-	-	-	-	-	-	MB648	-	-
7.09"	9.06"	-	-	-	-	-	-	-	-	MSB1823 MSBU1823
8"	8"	-	-	-	-	-	-	MB8 MB8U	-	-
8"	10"	-	-	-	-	-	-	MB810 MB810U	-	-
8"	24"	-	-	-	-	-	-	-	MB824	-
8"	36"	-	-	-	-	-	-	-	MB836	-
10"	12"	-	-	-	-	-	-	MB1012 MB1012U	-	-
Ø12"		-	-	-	-	-	-	-	MBR12 MBR12U	-
12"	12"	B1212F B1212T^d	-	-	PBG1212F^e	-	-	MB12 MB12U	MB12D	MBY12 MS12B MSB12
12"	18"	B1218F B1218T	-	B1218FX	PBG1218F^e	-	-	MB1218 MB1218U MB1218A^f	-	MBY1218 MSB1218
12"	24"	B1224F B1224T^d	-	B1224FX	PBG1224F^e	PBG12102^d	-	MB1224 MB1224U	-	-
12"	36"	B1236F B1236T^d	-	-	PBG1236F^e	PBG12103^d	-	MB1236	-	-
12"	48"	-	-	-	-	-	-	MB1248	-	-
14"	45"	-	-	-	-	-	-	MB1445	-	-
14"	56"	-	-	-	-	-	-	MB1456	-	-
18"	18"	B1818F B1818T	-	-	PBG1818F^e	-	-	MB18	-	-
18"	24"	B1824F B1824T	-	B1824FX	PBG1824F^e	PBG12118	-	MB1824 MB1824U MB1824A^f	-	-
18"	30"	-	-	-	-	-	-	MB1830	-	-
18"	36"	-	-	-	-	-	-	MB1836	-	-
24"	24"	B2424F B2424T	-	B2424FX	PBG2424F^e	PBG12105	-	MB2424	-	-
24"	36"	B2436F B2436T B2436FN^d B2436Y	B2436G^d B2436U^d	B2436FX	PBG2436F^e	PBG12106	-	MB2436	-	-
24"	48"	B2448F B2448T	B2448G^d B2448U^d	B2448FX	PBG2448F^e	-	-	MB2448	-	-
24"	60"	-	B2460G^d B2460U^d	-	-	PBG12108^d	-	-	-	-
30"	30"	B3030F B3030T^d	-	-	-	-	-	MB30	-	-
30"	36"	B3036F B3036T B3036FN^d B3036Y	B3036G^d B3036U^d	B3036FX	PBG3036F^e	PBG12110	-	-	-	-
30"	48"	B3048F B3048T B3048FN^d B3048Y	B3048G^d B3048U^d	B3048FX	PBG3048F^e	PBG12111	-	-	-	-
30"	60"	-	B3060G B3060U^d	B3060FX	-	-	-	-	-	-
36"	36"	B3636F B3636T	B3636G^d B3636U^d	-	-	-	-	-	-	-
36"	48"	B3648F B3648T B3648FN^d B3648Y	B3648G B3648U	B3648FX	PBG3648F^e	PBG12113	-	-	-	-
36"	60"	-	B3660G B3660U	B3660FX	-	PBG12114	-	-	-	-
36"	72"	-	B3672G B3672U^d	B3672FX	-	-	-	-	-	-
48"	60"	-	B4860G^d B4860U^d	-	-	-	-	-	-	-
48"	72"	-	B4872G B4872U^d	-	-	-	-	-	-	-
