Scientific Camera Selection Guide


Scientific Camera Selection Guide
  • Zelux™ CMOS, Kiralux® CMOS, Quantalux® sCMOS, and Scientific CCD Cameras
  • Models for Low Light, High Speed, UV, Visible, Near-IR, or Polarization
  • Versatile ThorCam™ Software with SDK and Programming Interfaces
  • Support for C, C++, C#, .NET, Python, LabVIEW, MATLAB, and µManager

Non-Cooled, Standard
Scientific CCD Cameras

Passively Cooled, Compact
Monochrome sCMOS Camera

CMOS Sensor Cameras
with Low Read Noise

Polarization-Sensitive CMOS
Sensor Camera

Hermetically Sealed, TE-Cooled
Scientific CCD Cameras

Hermetically Sealed, TE-Cooled
Monochrome sCMOS Camera

Ultra-Compact CMOS Cameras
with Low Read Noise



Please Wait

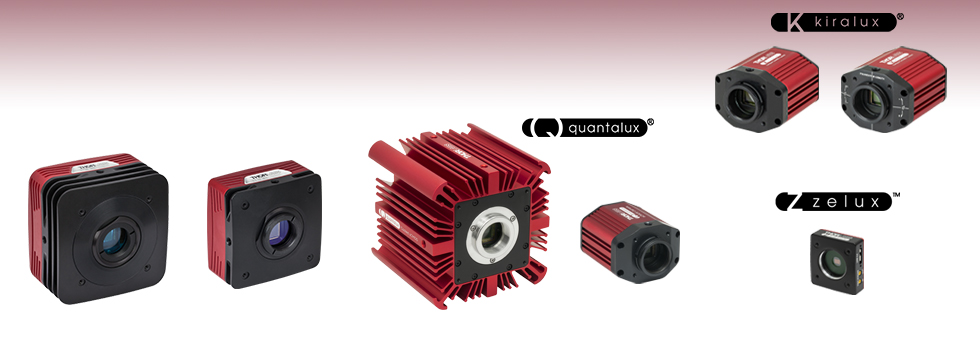

Thorlabs offers four families of scientific cameras: Zelux™, Kiralux®, Quantalux®, and Scientific CCD. Zelux cameras are designed for general-purpose imaging and provide high imaging performance while maintaining a small footprint. Kiralux cameras have CMOS sensors in compact, passively cooled housings and are available with monochrome, color, NIR-enhanced, or polarization-sensitive sensors. The polarization-sensitive Kiralux camera incorporates an integrated micropolarizer array that, when used with our ThorCam™ software package, captures images that illustrate degree of linear polarization, azimuth, and intensity at the pixel level. Our Quantalux monochrome sCMOS cameras feature high dynamic range combined with extremely low read noise for low-light applications. They are available in either a compact passively cooled housing or a hermetically sealed TE-cooled housing. We also offer scientific CCD cameras with a variety of features, including versions optimized for operation at UV, visible, or NIR wavelengths; fast-frame-rate cameras; TE-cooled or non-cooled housings; and versions with the sensor face plate removed. The tables below provide a summary of our camera offerings.

Compact Scientific Cameras
Camera Type Zelux™ CMOS Kiralux® CMOS Quantalux® sCMOS
1.6 MP 1.3 MP 2.3 MP 5 MP 8.9 MP 12.3 MP 2.1 MP
Item # Monochrome: CS165MUa
Color: CS165CUa
Mono.: CS135MU
Color: CS135CU
NIR-Enhanced
Mono.: CS135MUN
Mono.: CS235MU
Color: CS235CU
Mono.: CS505MU
Color: CS505CU
Polarization:
CS505MUP
Mono.:
CS895MU
Color:
CS895CU
Mono.:
CS126MU
Color:
CS126CU
Monochrome,
Passive Cooling: CS2100M-USB
Active Cooling: CC215MU
Product Photos
(Click to Enlarge)
Quantaluc Cameras
Electronic Shutter Global Shutter Global Shutter Rolling Shutterb
Sensor Type CMOS CMOS sCMOS
Number of Pixels (H x V) 1440 x 1080 1280 x 1024 1920 x 1200 2448 x 2048 4096 x 2160 4096 x 3000 1920 x 1080
Pixel Size 3.45 µm x 3.45 µm 4.8 µm x 4.8 µm 5.86 µm x 5.86 µm 3.45 µm x 3.45 µm 5.04 µm x 5.04 µm
Optical Format 1/2.9"
(6.2 mm Diag.)
1/2"
(7.76 mm Diag.)
1/1.2"
(13.4 mm Diag.)
2/3"
(11 mm Diag.)
1"
(16 mm Diag.)
1.1"
(17.5 mm Diag.)
2/3"
(11 mm Diag.)
Peak Quantum
Efficiency

(Click for Plot)
Monochrome:
69% at 575 nm

Color:
Click for Plot

Monochrome:
59% at 550 nm

Color:
Click for Plot

NIR:
60% at 600 nm
Monochrome:
78% at 500 nm

Color:
Click for Plot
Monochrome & Polarization:
72%
(525 to 580 nm)

Color:
Click for Plot
Monochrome:
72%
(525 to
580 nm)

Color:
Click for Plot
Monochrome:
72%
(525 to
580 nm)

Color:
Click for Plot
Monochrome:
61% (at 600 nm)
Max Frame Rate
(Full Sensor)
34.8 fps 92.3 fps 39.7 fps 35 fps 20.8 fps 14.6 fps 50 fps
Read Noise <4.0 e- RMS <7.0 e- RMS <7.0 e- RMS <2.5 e- RMS <1 e- Median RMS; <1.5 e- RMS
Digital Output
10 Bit (Max) 10 Bit (Max) 12 Bit (Max) 16 Bit (Max)
PC Interface USB 3.0
Available
Fanless Cooling
Passive Thermal Management 0 °C at 20 °C Ambient
Housing Size
(Click for Details)
0.59" x 1.72" x 1.86"
(15.0 x 43.7 x 47.2 mm3)
2.77" x 2.38" x 1.88"
(70.4 mm x 60.3 mm x 47.6 mm)
Passively Cooled sCMOS Camera
TE-Cooled sCMOS Camera
Typical
Applications
General Purpose Imaging,
Brightfield Microscopy,
Machine Vision & Robotics,
UAV, Drone, & Handheld Imaging,
Inspection,
Monitoring
VIS/NIR Imaging,
Electrophysiology/Brain Slice Imaging,
Materials Inspection,
Multispectral Imaging,
Ophthalmology/Retinal Imaging,
Vascular Imaging,
Laser Speckle Imaging,
Semiconductor Inspection,
Fluorescence Microscopy,
Brightfield Microscopy
Fluorescence Microscopy,
Immunohistochemistry,
Machine Vision,
Inspection,
General Purpose Imaging
Mono. & Color:
Fluorescence Microscopy,
Immunohistochemistry,
Machine Vision & Inspection,

Polarization:
Machine Vision & Inspection,
Transparent Material Detection,
Surface Reflection Reduction
Fluorescence Microscopy,
Immunohistochemistry,
Large FOV Slide Imaging,
Machine Vision,
Inspection
Fluorescence Microscopy,
VIS/NIR Imaging,
Quantum Dots,
Autofluorescence,
Materials Inspection,
Multispectral Imaging
  • These item numbers are representative of the Zelux family. These cameras are available with or without external hardware triggers.
  • Rolling Shutter with Equal Exposure Pulse (EEP) Mode for Synchronizing the Camera and Light Sources for Even Illumination
Scientific CCD Cameras
Camera Type Fast Frame Rate
VGA CCD
1.4 MP CCD 4 MP CCD 8 MP CCD
Item # Prefix Monochrome:
340M
UV-Enhanced
Monochrome:
340UV
Monochrome: 1501M
Color: 1501C
Monochrome: 4070M
Color: 4070C
Monochrome: 8051M
Color: 8051C
Monochrome,
No Sensor Face Plate: S805MU
Product Photo
(Click to Enlarge)
Electronic Shutter Global Shutter
Sensor Type CCD
Number of Pixels
(H x V)
640 x 480 1392 x 1040 2048 x 2048 3296 x 2472
Pixel Size 7.4 µm x 7.4 µm 6.45 µm x 6.45 µm 7.4 µm x 7.4 µm 5.5 µm x 5.5 µm
Optical Format 1/3" (5.92 mm Diagonal) 2/3" (11 mm Diagonal) 4/3" (21.4 mm Diagonal) 4/3" (22 mm Diagonal)
Peak QE
(Click for Plot)
55%
at 500 nm
10%
at 485 nm
Monochrome: 60% at 500 nm
Color: Click for Plot
Monochrome: 52% at 500 nm
Color: Click for Plot
Monochrome: 51% at 460 nm
Color: Click for Plot
51% at 460 nm
Max Frame Rate
(Full Sensor)
200.7 fps (at 40 MHz
Dual-Tap Readout)
23 fps (at 40 MHz
Single-Tap Readout)
25.8 fps (at 40 MHz
Quad-Tap Readout)a
17.1 fps (at 40 MHz
Quad-Tap Readout)b
17.1 fps (at 40 MHz
Quad-Tap Readout)
Read Noise <15 e- at 20 MHz <7 e- at 20 MHz (Standard Models)
<6 e- at 20 MHz (-TE Models)
<12 e- at 20 MHz <10 e- at 20 MHz
Digital Output (Max) 14 Bitc 14 Bit 14 Bitc 14 Bit
Available
Fanless Cooling
Passive Thermal Management -20 °C at 20 °C Ambient Temperature -10 °C at 20 °C Ambient Passive Thermal Management
Available PC
Interfaces
USB 3.0 or Gigabit Ethernet USB 3.0
Housing
Dimensions

(Click for Details)
Non-Cooled Scientific
CCD Camera
Cooled Scientific CCD Camera
Non-Cooled Scientific CCD Camera
No Face Plate Scientific
CCD Camera
Typical Applications Ca++ Ion Imaging,
Particle Tracking,
Flow Cytometry,
SEM/EBSD,
UV Inspection
Fluorescence Microscopy,
VIS/NIR Imaging,
Quantum Dots,
Multispectral Imaging,
Immunohistochemistry (IHC),
Retinal Imaging
Fluorescence Microscopy,
Transmitted Light Micrsoscopy,
Whole-Slide Microscopy,
Electron Microscopy (TEM/SEM),
Inspection,
Material Sciences
Fluorescence Microscopy,
Whole-Slide Microscopy,
Large FOV Slide Imaging,
Histopathology,
Inspection,
Multispectral Imaging,
Immunohistochemistry (IHC)
Beam Profiling & Characterization,
Interferometry,
VCSEL Inspection,
Quantitative Phase-Contrast Microscopy,
Ptychography,
Digital Holographic Microscopy
  • Limited to 13 fps at 40 MHz dual-tap readout for Gigabit Ethernet cameras; quad-tap readout is unavailable for Gigabit Ethernet cameras.
  • Limited to 8.5 fps at 40 MHz dual-tap readout for Gigabit Ethernet cameras; quad-tap readout is unavailable for Gigabit Ethernet cameras.
  • Gigabit Ethernet cameras operating in dual-tap readout mode are limited to 12-bit digital output.
