Rail-Mountable Shelf for Enclosure Frames

Click to Enlarge

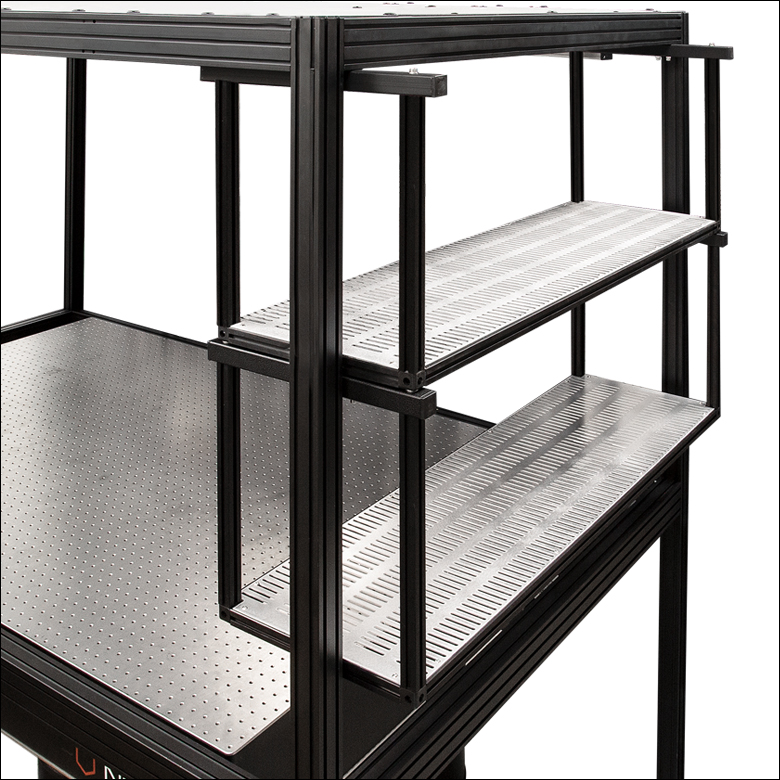

Figure 1.1  Stacked LFES1 Shelves for
Laminar Flow Enclosure Frames

Features

• Shelf Mounts to T-Slots in 50 mm or 75 mm Rails
• Also Compatible with Thorlabs' LFE1220(W) Enclosure Frames and Laminar Flow Enclosures
• Multiple Shelves can be Stacked for Additional Storage Space

The LFES1 Hanging Shelf can be mounted to systems constructed from 50 mm or 75 mm XE Construction Rails, such as Thorlabs' LFE1220(W) Enclosure Frames or Laminar Flow Enclosures. The shelf panel is slotted to improve airflow for mounted equipment and to preserve laminar flow within laminar flow enclosures. To mount the shelf, the top-bar of the shelf's hanging frame can be connected two adjacent T-slots in a 50 mm or 75 mm rail using the included mounting hardware. The shelf features 403.0 mm of vertical space from the shelf surface to the top of the mounting cross bars, and the height can be adjusted by swapping out the included vertical hanging bars with 25 mm rail extrusions of a different length. For additional shelving space, multiple hanging shelf units can be stacked, as shown in Figure 1.1.
