- Polarization Optics Modules Designed for FiberBench Systems
- Interchangeable Modules Maintain Optical Axis Height
- Polarizers Available for Visible through Mid-IR
LPR-1550
Linear Polarization
Reference Module
FBR-LPVIS
Rotating Linear
Polarizer Module
PBB-VIS-10-L
Beam Displacer Module
Application Idea
Variable Optical Attenuator Constructed Within a FiberBench System (See Applications Tab)
Please Wait
Thorlabs offers several polarization modules that can be used with our FiberBenches. Each module has two dowel pins on its base that precisely align it on a FiberBench. The Rotating Linear Polarizer Modules are made from nanoparticle film polarizers held in FBR Rotation Mounts that allow the user to easily adjust the State of Polarization (SOP) and are ideal for use in the 500 nm - 5.0 µm wavelength range. The Linear Polarization Reference Module is ideal for use in PM fiber alignment, polarimetry, and extinction ratio measurements. The left-/right-handed Beam Displacer Modules consist of an AR-coated Calcite crystal on a static mounting base. They are designed to displace the horizontal polarization for a variety of wavelength ranges. For more information or custom requests, please contact Tech Support.
| Fiber Polarization Management Selection Guide | |||||
|---|---|---|---|---|---|
| Polarization Controllers | Linear Polarizers | ||||
 |
 |
 |
 |
 |
 |
| Paddle Operated | Rotatable Fiber Squeezer | Free-Space FiberBench | In-Line Package | Polarizing Fiber | Free-Space FiberBench Modules |
| FiberBench Accessories | |||
|---|---|---|---|
| FiberPorts | Optic Mounts | Alignment Tools | Polarizers |
| Beamsplitter Modules | Mirror Modules | Rotating Wave Plates | FiberBenches |
Rotating Linear Polarizer Modules
| Item # | Wavelength | Transmission | Extinction Ratioa | Damage Threshold | Alignment Accuracy |
|---|---|---|---|---|---|
| FBR-LPVIS | 500 - 720 nm | >65% | >40 dB (10 000:1) | 1 W/cm2 (Continuous Block) 5 W/cm2 (Continuous Pass) |
±3° (Typical) |
| FBR-LPNIR | 650 - 2000 nm | >76% | >30 dB (1 000:1) | 1 W/cm2 (Continuous Block) 5 W/cm2 (Continuous Pass) |
|
| 750 - 1800 nm | >80% | >40 dB (10 000:1) | |||
| 850 - 1600 nm | >82% | >50 dB (100 000:1) | |||
| FBR-LPMIR | 1.5 - 5.0 µm | >35% | >30 dB (1 000:1) | 10 W/cm2 (Continuous Block) 25 W/cm2 (Continuous Pass) |
|
| 2.0 - 4.5 µm | >65% | >40 dB (10 000:1) |
Linear Polarization Reference Module
| Item # | Wavelength | Transmission | Extinction Ratioa |
|---|---|---|---|
| LPR-1550 | 1500 - 1600 nm | >98% | >40 dB |
Calcite Beam Displacer Modules
| Item # | Wavelength | Transmission | Extinction Ratioa |
|---|---|---|---|
| PBB-VIS-10-L | 620 - 690 nm | >96% | >50 dB |
| PBB-VIS-10-R | 620 - 690 nm | >96% | >50 dB |
| PBB-NIR-10-L | 770 - 870 nm | >97% | >50 dB |
| PBB-NIR-10-R | 770 - 870 nm | >97% | >50 dB |
| PBB-YAG-10-L | 970 - 1080 nm | >97% | >50 dB |
| PBB-YAG-10-R | 970 - 1080 nm | >97% | >50 dB |
| PBB-IR-10-L | 1280 - 1625 nm | >97% | >50 dB |
| PBB-IR-10-R | 1280 - 1625 nm | >97% | >50 dB |
Click to Enlarge
Variable Optical Attenuator
| Item #a | Qty | Description |
|---|---|---|
| FB-51W | 1 | Single-Axis FiberBench |
| HCA3 | 2 | FiberBench Wall Plate |
| - | 2 | FiberPort Collimator/Coupler |
| - | 1 | Calcite Beam Displacer (Left-Handed)b |
| - | 1 | Calcite Beam Displacer (Right-Handed)b |
| - | 1 | Rotating Half-Wave Plate |
| - | 2 | SM or PM Fiber Patch Cable |
Variable Optical Attenuator Application

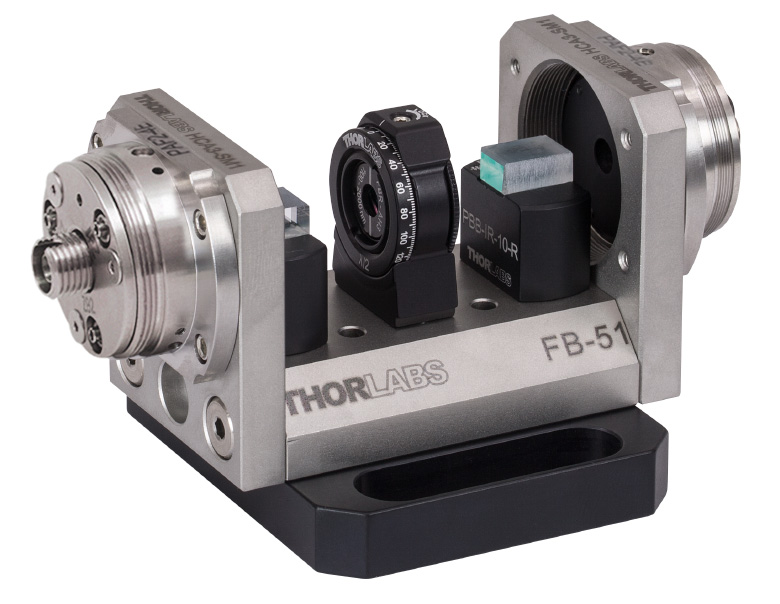

A continuously variable attenuator can be assembled using the FiberBench components listed in the table to the right. Since a variety of AR coatings and connectors are available, we recommend selecting individual components suited to your application.
The FiberPort collimates the beam from a SM or PM fiber, and the collimated beam then goes through a calcite beam displacer (walk-off polarizer) where it is split into its respective horizontal (P) and vertical (S) components. The orientation of the wave plate controls how much energy is in the beam. It can be rotated to give the desired attenuation - zero, partial, or full. The signal then enters a reversed beam displacer where it will be recombined or further separated. The only energy that will couple back into the output fiber is the signal on the central axis. The central beam will then be focused into the output fiber by the output FiberPort.
Click to Enlarge
The half-wave plate is rotated so that there is only one output beam; this also means that the input and output polarizations are the same.
Click to Enlarge
The half-wave plate is rotated so that there are three output beams. Its orientation will control how much energy is in each beam. The only energy that will couple into the fiber is the energy in the central beam. The attenuation range is 1 to 40 dB with any value in-between.
Click to Enlarge
The half-wave plate is rotated so that there are two output beams, which will be displaced to the left and to the right of the center. In this position, there will be minimal coupling efficiency, resulting in a maximum attenuation of 40 dB.
Click to Enlarge
Polarization Beamsplitter
Polarization Splitter
A polarization splitter can be assembled using the components listed in the table below. Since a variety of AR coatings, connectors, and configurations are available, we recommend selecting individual components suited to your application.
The offset (pickoff) mirror is positioned such that it will intersect the displaced beam from the preceding calcite beam displacer (walk-off polarizer) and reflect it by 90°. This combination simplifies the alignment of complex systems by decoupling the reflected beam from the transmitted beam, thus allowing for the independent adjustment of the reflected beam path. Alignment is critical when aligning systems with a walk-off/pickoff combination as clipping can occur if the beam is too large or not centered.
| Item #a | Qty | Description |
|---|---|---|
| FT-51X60 | 1 | Multi-Axis FiberBench |
| HCA3 | 2b | FiberBench Wall Plate |
| - | 2b | FiberPort Collimator/Couplerc |
| - | 1 | Calcite Beam Displacer Module |
| FBT-P01 | 1 | Adjustable Offset Mirror Module |
| - | 2b | SM or PM Fiber Patch Cable |
Click to Enlarge
Diagram of Polarization Splitter Using
Beam Displacer (Right) and Offset Mirror (Left)
| Posted Comments: | |
Mohamed S. Mohamed
(posted 2019-11-25 14:46:22.983) Do you have a rotating linear polarizer fiber bench module with optimized transmission at a wavelength of 475 nm? nbayconich
(posted 2019-11-27 09:52:37.0) Thank you for contacting Thorlabs. We do not have a stock module for this wavelength at the moment however we could provide a custom version. I will reach out to you directly to discuss our custom capabilities. user
(posted 2013-06-25 14:59:10.19) How can I clean the PCB-2.5-1550 polarizer without damaging it? jlow
(posted 2013-06-25 12:35:00.0) Response from Jeremy at Thorlabs: Dust and other loose contaminants can be usually be blown off using canned air. We also have an optic cleaning tutorial available at http://www.thorlabs.com/tutorials.cfm?tabID=26066 that details other cleaning methods as well. jjurado
(posted 2011-03-31 17:57:00.0) Response from Javier at Thorlabs to Benjamin: Thank you for contacting us. The fiber bench components are attached to the bench through a slip fit of the dowel pins into the mounting holes. The diameter of the dowel pins is 0.125" and the mounting hole diameter is 0.126" (+0.001"/-0.000"), which provides a tight fit between these mating parts. As a result, our fiber tables provide a stable support for polarizer modules and a variety of other optical components, and is also suitable for interferometry applications. benju
(posted 2011-03-31 14:46:38.0) How are items fastened/secured to the fiber table? Do they just slot in? Does that provide sufficient stability for interferometry applications? Thanks, Benjamin |
Zoom- Create a Variable Beamsplitter when used in conjunction with Thorlabs' Beam Displacer Modules.
- Useful for monitoring polarization, especially in applications where the polarization could shift over time (e.g., due to changes in temperature) because the user can rotate the polarizer to compensate for the shift.
- Polarization Extinction Ratio Measurements
- Polarimetry
- Nanoparticle Film Polarizers
- >10 000:1 Extinction Ratio
- 360° Continuous Rotation
- Engraved Scale with 2° Increments
- Ø2.5 mm Clear Aperture for FBR-LPVIS and FBR-LPNIR
- Ø4.0 mm Clear Aperture for FBR-LPMIR

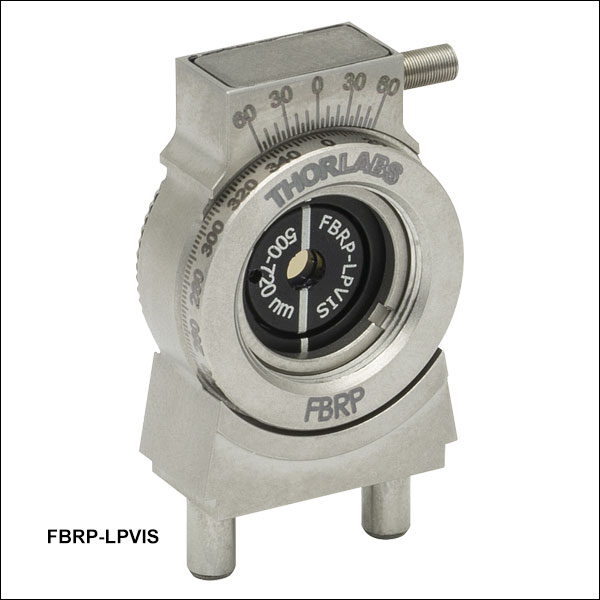

Thorlabs' FiberBench Rotating Linear Polarizer Modules utilize a thin layer of sodium-silicate polarizer mounted in FBR Rotation Mounts. These modules absorb light that is not aligned to the transmission axis of the polarizer and are designed for the 500 - 720 nm, 650 - 2000 nm, or 1.5 - 5.0 µm wavelength range. These polarizers provide an excellent extinction ratio of >10,000:1 over most of their specified wavelength range (see Specs tab for details).
The mount for these polarizers features a rotating cell with a knurled edge and a 360° laser-engraved scale marked at 2° increments for precise, repeatable positioning and fine angular adjustment. A convenient top-located setscrew (0.050" hex) secures the rotational position of the stage. The transmission axis is marked by the engraved line on the front of the polarizer cells. The FBR mount can be coupled with an FBA post-mountable adapter for use in other applications.
The mount is SM05 threaded and the removable polarizer cell is held in the mount with an SM05 retaining ring for holding Ø1/2" optics (SM05RR). The polarizer cells in these modules are also compatible with other Ø1/2" optic mounts. When replacing a polarizer in the mount, be sure to align the engraving on the polarizer with the 0° engraving on the scale. Please note that the thin film in these polarizers is very delicate and should not be touched.
Click to Enlarge

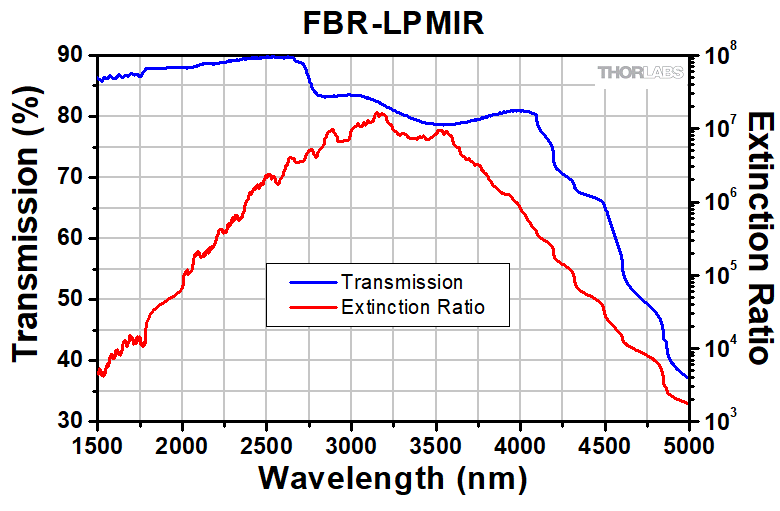

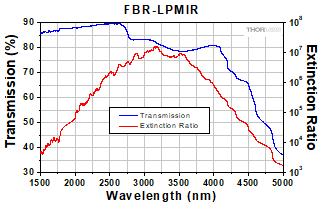

(Transmission Data Includes Fresnel Reflections)
Click to Enlarge

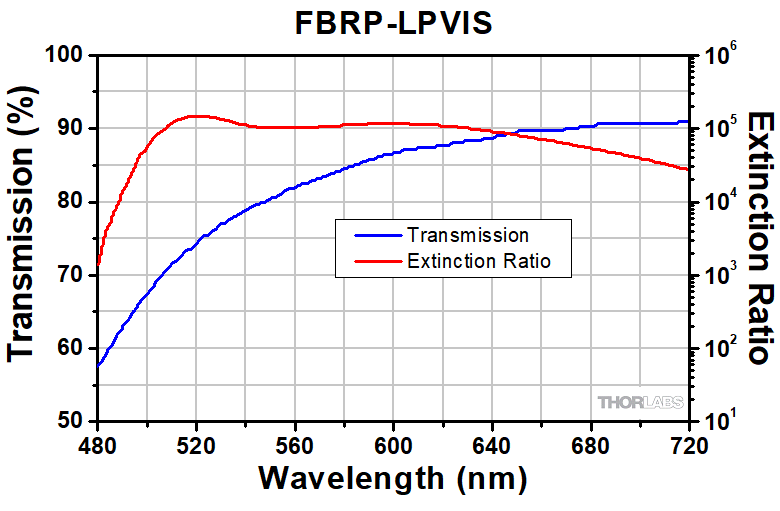

(Transmission Data Includes Fresnel Reflections)
Click to Enlarge
(Transmission Data Includes Fresnel Reflections)
Zoom
Click for Details
Four Available Orientations (Fourth orientation not shown)
- Polarization Extinction Ratio Measurements
- Polarimetry
- PM Fiber Alignment
- See the Applications Tab
- Precision Linear Polarization Reference
- 0°, 45°, 90°, and 135° Orientations
- Angle Tolerance <30 arcmin
- Highly Repeatable Positioning by Magnetic Contact
- Wavelength Range: 1510 - 1590 nm

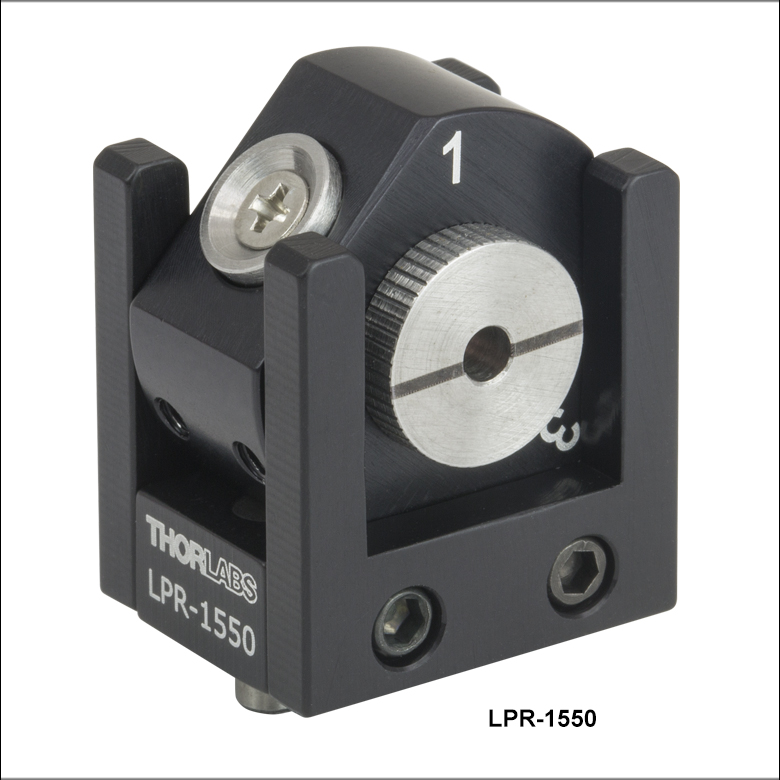

The Linear Polarization Reference Module consists of a Linear Polarizer held in a capture cage. The polarizer is set in the silver wheel on the front of the module, seen on the left, and can be rotated by adjusting the setscrew using a 0.035" hex key.

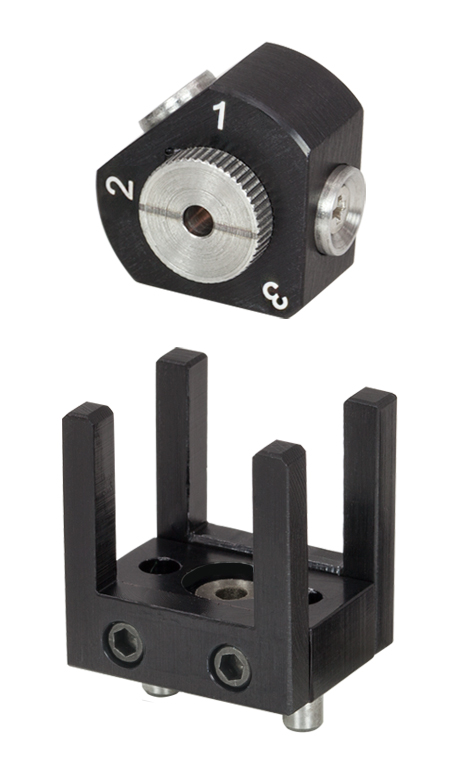

To use the module, place the front of the module into the cage facing your source with the 1 located at the top. Rotate the front wheel so that it matches the polarization of your source, and tighten the setscrew using a 0.035" hex key, located on the face to the left of the 2. This corresponds to a 0° rotation with respect to the input polarization. From here, the module can be easily positioned to the 2, 3, or 4 settings, which correspond to a 90°, 45°, and 135° clockwise shift of the input polarization, respectively. Position 4 is achieved by flipping the module; the wheel on this side of the housing does not rotate the polarizer but can be adjusted for use as a reference.
Please note that this linear polarization reference module does not incorporate a quarter-wave plate. However, other wavelengths and units with an integrated quarter-wave plate (to function as a manual polarimeter) are available by request. Please contact Tech Support for details.
Zoom- Create Multilevel Optical Systems
- Use in Conjunction with Mirror Modules to Pick Off
Displacement Beam in Custom Optical Systems - Variable Optical Attenuator
- Polarization Splitter
- See the Applications Tab
- AR-Coated Calcite Polarizer
- 100 000:1 Extinction Ratio
- Broadband Operation
- Clear Aperture: 6.0 mm x 3.5 mm
- 500 W/cm2 Power Handling
- Input Diameter: 1 mm (Max)
- Beam Displacement: 1 mm
- Surface Quality: 40-20 Scratch-Dig
- Please See the Specs Tab for More Details

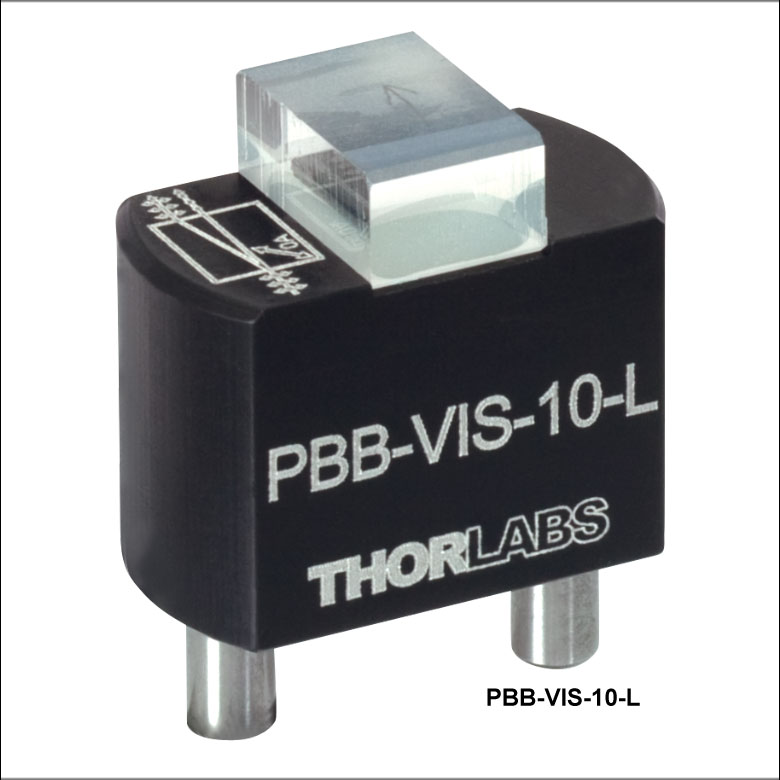

Each Beam Displacer Module consists of an AR-coated Calcite crystal mounted on a static base so that it can be inserted at the correct height into a FiberBench setup. It is primarily designed to displace the horizontal polarization state by 1 mm. The beam displacing polarizers listed below are designed for use in different wavelength ranges (Visible, NIR, YAG, or IR), offering both left- and right-handed orientations.
