SM3-Threaded Irises

Overview
Threading Specs
Feedback

Click to Enlarge
SM3D50D Mechanical Diagram

Click to Enlarge
SM3D50 Mechanical Diagram

SM-Threaded Irises
SM05
SM1
SM2
SM3

Features

Lever or Ring Aperture Control
SM3 (3.035"-40) Internally and Externally Threaded
Minimum Aperture: Ø2 mm (Ø0.08")
Maximum Aperture: Ø50 mm (Ø1.97")

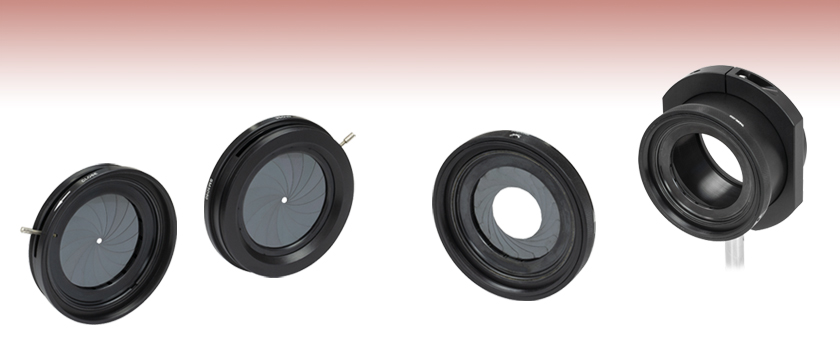

Our SM3 (3.035"-40) threaded irises are compatible with our Ø3" lens tubes and other SM3-threaded components. Each iris has internal SM threading on one side and external SM threading on the other side. The individual black spring steel leaves pivot within the outer ring of the iris and are designed for long-lasting performance over several thousand cycles.

The SM3D50D ring-actuated iris is designed for integration into confined setups, where the movement of a lever-actuated iris might be obstructed by other components. This iris also features a locking setscrew with a 0.05" (1.3 mm) hex for locking the ring during installation or removal.

Thorlabs' Threading Specifications

Thorlabs' lens tubes utilize a series of non-standard threadings. Threading specifications are given below for our SM threadings utilized in our lens tube and cage system components so that you can machine mating components to suit your application. We also offer products with C-Mount and RMS threadings, and the specifications for these threadings are also given below. Please note that other manufacturers may have different tolerances for these threads. For other thread specifications that are not listed here, please contact Tech Support.

Click to Enlarge

SM05 Threading: Ø1/2" Lens Tubes, 16 mm Cage Systems
External Thread, 0.535"-40.0, UNS-2A		Internal Thread, 0.535"-40.0, UNS-2B
Max Major Diameter	0.5340"	Min Major Diameter	0.5350"
Min Major Diameter	0.5289"	Min Pitch Diameter	0.5188"
Max Pitch Diameter	0.5178"	Max Pitch Diameter	0.5230"
Min Pitch Diameter	0.5146"	Min Minor Diameter (and 83.3% of thread)	0.508"
Max Minor Diameter	0.5069"	Max Minor Diameter (and 64.9% of thread)	0.514"

RMS Threading: Objective, Scan, and Tube Lenses
External Thread, 0.800"-36.0, UNS-2A		Internal Thread, 0.800"-36.0, UNS-2B
Max Major Diameter	0.7989"	Min Major Diameter	0.8000"
Min Major Diameter	0.7934"	Min Pitch Diameter	0.7820"
Max Pitch Diameter	0.7809"	Max Pitch Diameter	0.7866"
Min Pitch Diameter	0.7774"	Min Minor Diameter (and 83.3% of thread)	0.770"
Max Minor Diameter	0.7688"	Max Minor Diameter (and 64.9% of thread)	0.777"

C-Mount Threading: Machine Vision Lenses, CCD/CMOS Cameras
External Thread, 1.000"-32.0, UN-2A		Internal Thread, 1.000"-32.0, UN-2B
Max Major Diameter	0.9989"	Min Major Diameter	1.0000"
Min Major Diameter	0.9929"	Min Pitch Diameter	0.9797"
Max Pitch Diameter	0.9786"	Max Pitch Diameter	0.9846"
Min Pitch Diameter	0.9748"	Min Minor Diameter (and 83.3% of thread)	0.966"
Max Minor Diameter	0.9651"	Max Minor Diameter (and 64.9% of thread)	0.974"

SM1 Threading: Ø1" Lens Tubes, 30 mm Cage Systems
External Thread, 1.035"-40.0, UNS-2A		Internal Thread, 1.035"-40.0, UNS-2B
Max Major Diameter	1.0339"	Min Major Diameter	1.0350"
Min Major Diameter	1.0288"	Min Pitch Diameter	1.0188"
Max Pitch Diameter	1.0177"	Max Pitch Diameter	1.0234"
Min Pitch Diameter	1.0142"	Min Minor Diameter (and 83.3% of thread)	1.008"
Max Minor Diameter	1.0068"	Max Minor Diameter (and 64.9% of thread)	1.014"

SM30 Threading: Ø30 mm Lens Tubes
External Thread, M30.5x0.5		Internal Thread, M30.5x0.5
Max Major Diameter	30.480 mm	Min Major Diameter	30.500 mm
Min Major Diameter	30.371 mm	Min Pitch Diameter	30.175 mm
Max Pitch Diameter	30.155 mm	Max Pitch Diameter	30.302 mm
Min Pitch Diameter	30.059 mm	Min Minor Diameter (and 83.3% of thread)	29.959 mm
Max Minor Diameter	29.938 mm	Max Minor Diameter (and 64.9% of thread)	30.094 mm

SM1.5 Threading: Ø1.5" Lens Tubes
External Thread, 1.535"-40, UNS-2A		Internal Thread, 1.535"-40, UNS-2B
Max Major Diameter	1.5339"	Min Major Diameter	1.535"
Min Major Diameter	1.5288"	Min Pitch Diameter	1.5188"
Max Pitch Diameter	1.5177"	Max Pitch Diameter	1.5236"
Min Pitch Diameter	1.5140"	Min Minor Diameter (and 83.3% of thread)	1.508"
Max Minor Diameter	1.5068"	Max Minor Diameter (and 64.9% of thread)	1.514"

SM2 Threading: Ø2" Lens Tubes, 60 mm Cage Systems
External Thread, 2.035"-40.0, UNS-2A		Internal Thread, 2.035"-40.0, UNS-2B
Max Major Diameter	2.0338"	Min Major Diameter	2.0350"
Min Major Diameter	2.0287"	Min Pitch Diameter	2.0188"
Max Pitch Diameter	2.0176"	Max Pitch Diameter	2.0239"
Min Pitch Diameter	2.0137"	Min Minor Diameter (and 83.3% of thread)	2.008"
Max Minor Diameter	2.0067"	Max Minor Diameter (and 64.9% of thread)	2.014"

SM3 Threading: Ø3" Lens Tubes
External Thread, 3.035"-40.0, UNS-2A		Internal Thread, 3.035"-40.0, UNS-2B
Max Major Diameter	3.0337"	Min Major Diameter	3.0350"
Min Major Diameter	3.0286"	Min Pitch Diameter	3.0188"
Max Pitch Diameter	3.0175"	Max Pitch Diameter	3.0242"
Min Pitch Diameter	3.0133"	Min Minor Diameter (and 83.3% of thread)	3.008"
Max Minor Diameter	3.0066"	Max Minor Diameter (and 64.9% of thread)	3.014"

SM4 Threading: Ø4" Fixed Lens Mounts
External Thread, 4.035"-40.0, UNS-2A		Internal Thread, 4.035"-40.0, UNS-2B
Max Major Diameter	4.0337"	Min Major Diameter	4.0350"
Min Major Diameter	4.0286"	Min Pitch Diameter	4.0188"
Max Pitch Diameter	4.0175"	Max Pitch Diameter	4.0245"
Min Pitch Diameter	4.0131"	Min Minor Diameter (and 83.3% of thread)	4.008"
Max Minor Diameter	4.0066"	Max Minor Diameter (and 64.9% of thread)	4.014"

Posted Comments:

yuqin.zong (posted 2016-06-17 16:49:57.31)

Hi Design team, Can you make a 3" ring-activated iris version of SM3D50? It is much better than lever activated iris SM3D50 because a lever activated iris is not light-tight when it is used to construct a tube system. Thank you Yuqin Zong NIST (301) 975-2332

shallwig (posted 2016-06-20 11:22:51.0)

This is a response from Stefan at Thorlabs. Thank you very much for your inquiry. I will contact you directly to check if we can offer a special here.
