Products HomeSocket Head Cap Screws & Nuts, Steel
- Imperial Sizes: 2-56, 4-40, 8-32, and 1/4"-20
- Metric Sizes: M3 x 0.5, M4 x 0.7, and M6 x 1.0
- Vented, Vacuum-Compatible Cap Screws Available
- Nuts, Washers, and Counterbore Adapters Also Available

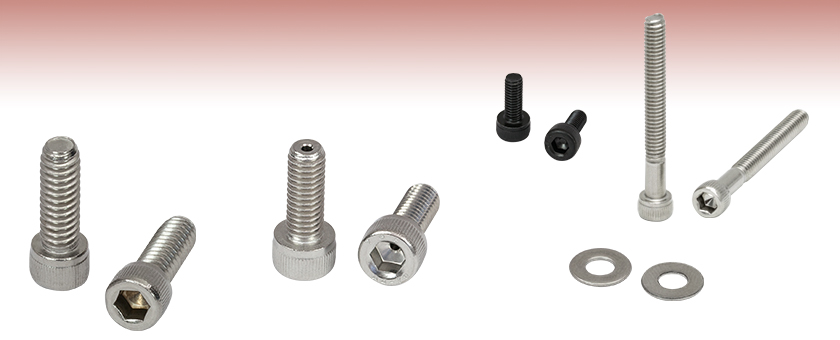

SH25S075
1/4"-20 Cap Screws,
3/4" Long
SH6MS16V
Vented, Vacuum-Compatible
M6 Cap Screws, 16 mm Long
SH3M8
M3 x 0.5 Cap Screws,
8 mm Long
W8S038
#8 Washers
SH8S15
8-32 Cap Screws
1.5" Long
N25S0440
1/4"-20 Nuts
Please Wait
| Screws Selection Guide |
|---|
| Cap Screws & Nuts |
| Setscrews and Thumbscrews |
| Low Profile Screws & T-Nuts |
| Thread Adapter Screws |
| Screw Kits |
| Balldrivers and Hex Keys |
| Quick Links | |
|---|---|
| Imperial | Metric |
| 2-56 | - |
| 4-40 | M3 x 0.5 |
| 8-32 (Standard or Vented) |
M4 x 0.7 (Standard or Vented) |
| 1/4"-20 (Standard or Vented) |
M6 x 1.0 (Standard or Vented) |
| 8-32, M4 x 0.7, 1/4"-20, and M6 x 1.0 Nuts | |
| 1/4" (M6) to #8 (M4) Counterbore Adapter | |
Features
- 2-56, 4-40, M3 x 0.5, 8-32, M4 x 0.7, 1/4"-20, and M6 x 1.0 Socket Head Cap Screws
- Stainless or Alloy Steel Construction
- Vented, Vacuum-Compatible 8-32, M4 x 0.7, 1/4"-20, and M6 x 1.0 Cap Screws Available
- 8-32, M4 x 0.7, 1/4"-20, and M6 x 1.0 Nuts
- #8 (M4) to 1/4" (M6) Counterbore Adapters Also Available
- Ideal for Replenishing our Hardware Kits
Cap screws are an essential part of any lab setup. On this page, Thorlabs offers standard cap screws, nuts, and washers in many popular sizes, plus vented, vacuum-compatible 8-32, M4 x 0.7, 1/4"-20, and M6 x 1.0 cap screws. We also offer setscrews and thumbscrews, low-profile screws, screw kits, and balldrivers / hex keys.
