Wavelength Stabilized by a Fiber Bragg Grating
976 nm Center Wavelength with Output Powers from 300 to 900 mW
1425 to 1465 nm Center Wavelengths with 500 mW Output Power
Integrated Thermoelectric Cooler (TEC) and Thermistor
Spectral Bandwidth <2 nm

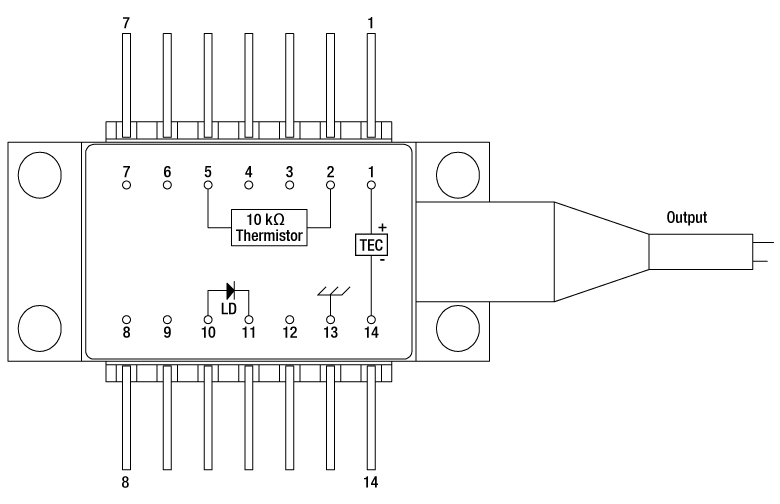

14-Pin, Hermetically Sealed Butterfly Package
Pigtailed Single Mode or Polarization-Maintaining Optical Fiber with FC/APC Connector (2.0 mm Narrow Key)
Telcordia GR-468 CORE Qualified
Core Pumping Erbium-Doped Fiber Devices:
Low-Noise CW Lasers
Erbium-Doped Fiber Amplifiers (EDFA)
Optical Tweezer Systems

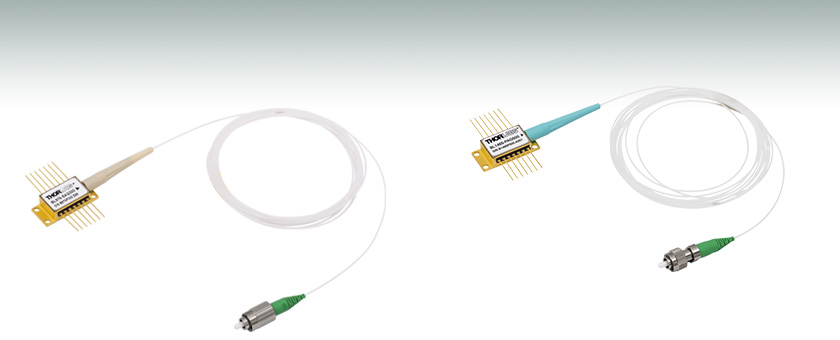

Thorlabs' Fiber-Bragg-Grating- (FBG) Stabilized Lasers are compact laser diodes designed for use as pump lasers. The butterfly packages contain an integrated thermoelectric cooler (TEC) and thermistor. The region of the fiber marked by a pair of black bands contains a grating etched into the fiber, which acts as a Bragg reflector to provide feedback to the laser. The FBG-stabilized design produces an output that is spectrally broadened by satellite modes. A FBG-stabilized laser is not a single longitudinal mode laser; while it is stabilized in terms of frequency, the gain curve will contain many different modes. Additionally, these Bragg gratings are relatively insensitive to temperature (<0.02 nm/°C). It should be noted that for the SM-pigtailed laser (item # BL976-SAG300), stress-induced birefingence on the fiber may change the output spectrum of the laser diode. Due to the properties of the fiber, the PM-pigtailed lasers will not be affected.
The 976 nm FBG lasers produce a stable output of ≥300 mW with a single mode fiber pigtail or between 500 and 900 mW with a polarization-maintaining fiber pigtail. With a spectral bandwidth of <1 nm, they are well suited for core pumping of Erbium-doped fibers, such as in Erbium-doped fiber amplifiers, mode-locked oscillators, and CW lasers.
The FBG lasers with wavelengths between 1425 and 1465 nm produce a stable output of 500 mW with a polarization-maintaining fiber pigtail. These laser diodes are designed for Raman amplification and can be used for other applications that require a stabilized, high-power laser source.
Specifications for each item can be found in the tables below and by clicking on the blue icons () below. These specifications are typical values; the performance of a particular unit varies slightly between devices. Each FBG-stabilized laser diode is serialized and shipped with individual test data; click here for a sample data sheet.
These FBG laser diodes are compatible with Thorlabs' line of laser diode drivers and temperature controllers in combination with a butterfly mount. To achieve the narrowest possible linewidth, we recommend using a driver with low drive current noise, such as our LDC series of drivers. When securing a laser diode to a mount or heatsink, be sure not to exceed the 150 mN·m torque limit on the screws holding the butterfly package.
We recommend cleaning the fiber connector before each use in case any dust or other contaminants have been deposited on the surface. The laser intensity at the center of the fiber tip can be very high and may burn the tip of the fiber if contaminants are present. While the connector is cleaned and capped before shipping, we cannot guarantee that it will remain free of contamination after it is removed from the package. We also recommend that the laser is turned off when connecting or disconnecting the device from other fibers.
Our FBG-Stabilized Lasers are available for purchase in volume orders. Additionally, custom configurations such as unterminated fiber leads or different FBG center wavelengths are available. Please contact Tech Support for more information and quotation.
For warranty information, please refer to the LD Operation tab.
