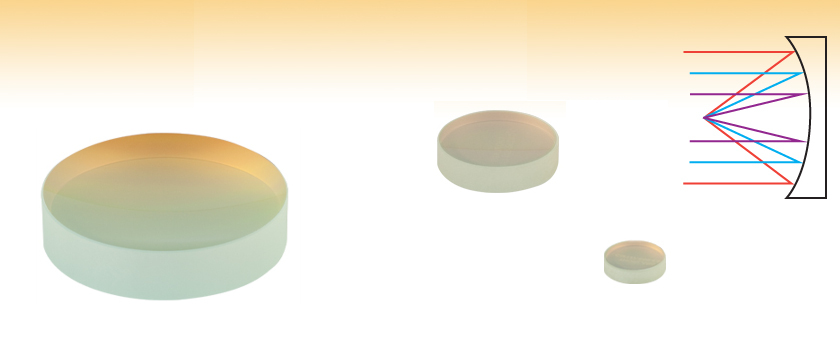

Concave Mirrors: IR Dielectric Coating (1280 - 1600 nm)
- Focal Lengths from 12 - 200 mm
- Ø1/2", Ø1", or Ø2"
- Dielectric Coating for 1280 - 1600 nm
- No Chromatic Aberration Introduced
|Available Diameters||1/2", 1", 2", and 75 mm|
|Dielectric Coating Range||1280 - 1600 nm; Ravg >99%|
|Clear Aperture||>90% of Diameter|
|Surface Irregularity||λ/4 @ 633 nm|
|Surface Quality||20-10 Scratch-Dig|
|Diameter Tolerance||+0.0/-0.2 mm|
|Thickness Tolerance||±0.2 mm|
|Backside Surface||Fine Ground and Engraved with Part Number
|Dielectric Concave Mirrors Selection Guide|
|UV||350 - 400 nm|
|Visible||400 - 750 nm||400 - 750 nm, Back Side Polished|
|NIR||750 - 1100 nm||750 - 1100 nm, Back Side Polished|
|Telecom||1280 - 1600 nm|
- Dielectric Coating Range; 1280 - 1600 nm (-E04)
- >99% Average Reflectivity in Dielectric Coating Range
- Four Diameter Options: 1/2", 1", 2", and 75 mm
- Focal Lengths Range from 12 mm - 200 mm
Thorlabs' Broadband Dielectric Concave Mirrors are designed for light collection, imaging, and focusing applications. These reflective optics focus light without introducing chromatic aberration, making them especially suitable for broadband sources.
All of the mirrors on this page can be mounted by our Precision Kinematic Mirror Mounts.
These plots show the reflectivity of our -E04 dielectric coating for a typical coating run. The shaded region in each graph denotes the spectral range over which the coating is highly reflective. Due to variations in each run, this recommended spectral range is narrower than the actual range over which the optic will be highly reflective. If you have any concerns about the interpretation of this data, please contact Tech Support. For applications that require a mirror that bridges the spectral range between two dielectric coatings, please consider a metallic concave mirror.
|No Comments Posted|
Click on a particular graphed line or the corresponding name in the legend to view concave mirrors with that coating option.
Metallic-Coated Concave Mirrors are available in UV Enhanced Aluminum, Aluminum, Silver, and Gold.
Click to Enlarge
Click Here for Theoretical Data From 800 - 1500 nm
Theoretical Reflectance of 1064 nm Crystalline Supermirrors
Click to Enlarge
Click Here for Theoretical Data From 900 - 1900 nm
Theoretical Reflectance of 1397 nm Crystalline Supermirrors
This item will be retired without replacement when stock is depleted. If you require this part for line production, please contact our OEM Team.
|Item #||Focal Length||Center Thickness||Edge Thickness||Radius of Curvature||Reference Drawing|
|CM750-075-E04||75 mm||12.0 mm||16.7 mm||150.0 mm (5.91")|
