Motorized Precision Rotation Stage with DC Servo Motor

Continuous 360° Motorized Rotation
Rotational Velocity: 25 Degree/Second
Tapped Platform for Mounting Prisms or Other Optics

PRMTZ8

Motorized Continuous
Rotation Stage

Application Idea

PRMTZ8 with PM3 Clamping Arm
and Pellin Broca Prism

Please Wait

Overview
Specs
Pin Diagram
Kinesis Software
Vernier Scales
Feedback
Rotation Mounts and Stages

Key Specifications^a
Platform Size	Ø66.2 mm (2.61")
Platform Mounting Holes	Eight 6-32 (M4) Sixteen 8-32 (M4) Five 1/4"-20 (M6)
Bidirectional Repeatability	±0.1°
Backlash	±0.3°
Max Rotation Velocity	25 deg/s
Horizontal On-Axis Load Capacity^b	15 N (1.5 kg, 3.4 lbs)
Repeatable Incremental Motion (Min)	0.04°
Percentage Accuracy	0.1%
Home Location Accuracy	±0.2°
Range	360° Continuous

See the Specs tab for complete specifications.
The PRMTZ8 is not suitable for mounting vertically.

Features

25 deg/sec Rotation Velocity
Mounting Holes for Prism Clamps (Sold Below) or Other Optomechanics
1° Graduations on Main Dial
Compact Design is Only 25 mm Tall
Home Limit Switch For Precise 0° Locating within ±0.2°
Recommended Driver: KDC101 DC Servo Controller

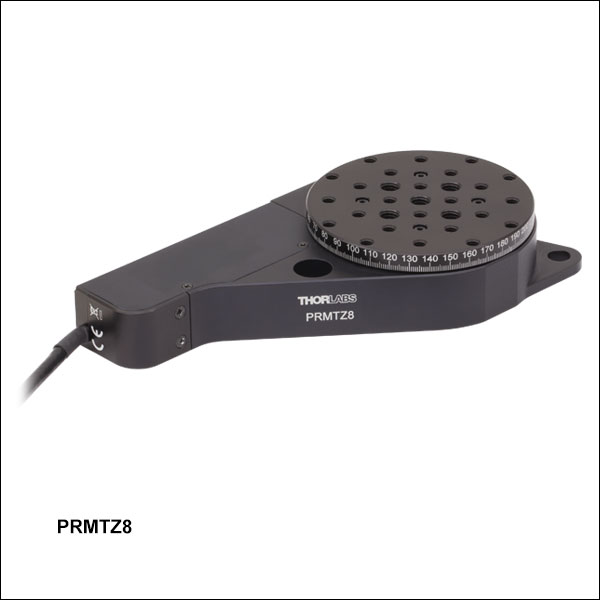

The PRMTZ8 is a compact, DC servo motorized 360° rotation stage with a tapped platform. The user can measure the angular displacement of the platform by using the Vernier scale (5 arcmin resolution) in conjunction with the graduation marks that are marked on the rotating platform in 1° increments. This rotation stage is also equipped with a home limit switch to facilitate automated rotation to the precise 0° position, allowing absolute angular positioning thereafter. The limit switch is designed to allow continuous rotation of the stage over multiple 360° cycles.

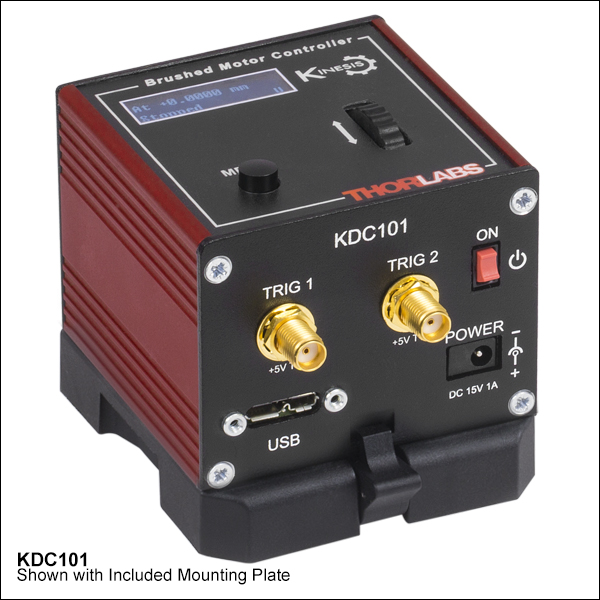

The KDC101 DC Servo Controller, sold separately below, is the ideal companion for achieving smooth, continuous motion that can be automated via the software interface. The stage, controller, and KPS101* or KPS201 power supply are available for purchase together as a bundle (Item #s KPRMTE and KPRMTE/M respectively).

The PRMTZ8 is supplied with 430 mm (16.93") of cable. An 2.5 m (8 ft) extension cable (PAA632) is available separately.

*This previous-generation item is not available for individual purchase. If a replacement is needed, the KPS201 Power Supply can be used.

Motor Specifications
Motor Type	DC Servo
Nominal Voltage	6 V
No Load Speed	6560 rpm
No Load Current	7.43 mA
Nominal Speed	1050 rpm
Nominal Torque (Maximum Continuous Torque)	1.26 mN•m
Nominal Current (Maximum Continuous Current)	0.156 A
Stall Torque	1.54 mN•m
Starting Current	0.184 A
Maximum Efficiency	65%
Terminal Resistance	32.7 Ω
Terminal Inductance	0.607 mH
Torque Constant	8.38 mN•m/A
Speed Constant	1140 rpm/V
Speed / Torque Gradient	4450 rpm/mN•m
Mechanical Time Constant	13.9 ms
Rotor Inertia	0.298 g•cm²

Stage Specifications
Translation and Motion Parameters
Travel Range	360° Continuous
Bidirectional Repeatability^a	±0.1°
Backlash^b	±0.3°
Max Rotation Velocity	25 deg/s
Calculated Resolution	2 arcsec (0.0005°)
Horizontal On-Axis Load Capacity^c	15 N (1.5 kg, 3.4 lbs)
Min Repeatable Incremental Motion^d	0.04°
Percentage Accuracy	0.1%
Home Location Accuracy	±0.2°
Wobble	200 µrad
Physical
Platform Size	Ø66.2 mm (2.61")
Platform Mounting Holes	Eight 6-32 (M4) Sixteen 8-32 (M4) Five 1/4"-20 (M6)
Dimensions	137.4 mm x 73.3 mm x 25 mm (5.41" x 2.88" x 0.98")
Weight	0.38 kg (0.84 lbs)
Cable Length	430 mm (16.93")

The average of the repeatability when a set position is approached from both directions.
When a stage is moved to a position and then returned to its original position, some motion is lost due to the lead screw mechanism. This loss is known as backlash.
The PRMTZ8 is not suitable for mounting vertically.
The minimum incremental motion that the stage can repeatedly achieve within its standard error.

Motor Connector Pin Out

The PRMTZ8 is supplied with 430 mm (16.93") of cable. A 2.5 m (8 ft) extension cable (PAA632) is available separately.

Pin	Description	Pin	Description
1	Ground/Return	9	Ident Resistor^a
2	Reserved For Future Use	10	V_cc/Ident Resistor
3	Limit Switch	11	Encoder Channel B
4	Reserved For Future Use	12	Reserved For Future Use
5	Motor (+)	13	Encoder Channel A
6	Reserved For Future Use	14	Ident EEPROM
7	Motor (-)	15	Ident EEPROM
8	Reserved For Future Use	-	-

Used to identify the stage when it is connected to a Thorlabs controller.

D-Type Male

Schematic

Software

Kinesis Version 1.14.52

The Kinesis Software Package, which includes a GUI for control of Thorlabs' Kinesis system controllers.

Also Available:

Communications Protocol

Figure 58A Kinesis GUI Screen

Thorlabs offers the Kinesis^® software package to drive our wide range of motion controllers. The software can be used to control devices in the Kinesis family, which covers a wide variety of motion controllers ranging from small, low-powered, single-channel drivers (such as the K-Cubes^®) to high-power, multi-channel benchtop units and modular 19" rack nanopositioning systems (the MMR60x Rack System).

The Kinesis Software features .NET controls which can be used by 3rd party developers working in the latest C#, Visual Basic, LabVIEW™, or any .NET compatible languages to create custom applications. Low-level DLL libraries are included for applications not expected to use the .NET framework and APIs are included with each install. A Central Sequence Manager supports integration and synchronization of all Thorlabs motion control hardware.

By providing this common software platform, Thorlabs has ensured that users can mix and match any of our motion control devices in a single application, while only having to learn a single set of software tools. In this way, it is perfectly feasible to combine any of the controllers from single-axis to multi-axis systems and control all from a single, PC-based unified software interface.

The software package allows two methods of usage: graphical user interface (GUI) utilities for direct interaction with and control of the controllers 'out of the box', and a set of programming interfaces that allow custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice.

Reading a Vernier Scale on a Linear Main Scale

Vernier scales are typically used to add precision to standard, evenly divided scales (such as the scales on Thorlabs' rotation, goniometric, or translation mounts). A vernier scale has found common use in many precision measurement instruments, the most common being calipers and micrometers. The vernier scale uses two scales side-by-side: the main scale and the vernier scale. The direct vernier scale has a slightly smaller spacing between its tick marks owing to the vernier scale having N ticks for every N - 1 ticks on the main scale. Hence, the lines on the main scale will not line up with all the lines on the vernier scale. Only one line from the vernier scale will match well with one line of the main scale, and that is the trick to reading a vernier scale.

Figures 130A through 130C show a linear vernier scale system for three different situations. In each case, the scale on the left is the main scale, while the small scale on the right is the vernier scale. When reading a vernier scale, the main scale is used for the gross number, and the vernier scale gives the precision value. In this manner, a standard ruler or micrometer can become a precision instrument.

The 0 on the vernier scale is the "pointer" (marked by a red arrow in Figures 130A through 130E) and will indicate the main scale reading. In Figure 130A we see the pointer is lined up directly with the 75.6 line. Notice that the only other vernier scale tick mark that lines up well with the main scale is 10. Since the pointer lines up with the main scale’s 75.6, the reading from Figure 130A is 75.60 (in whatever units the instrument measures).

That is essentially all there is to reading a vernier scale. It's a very straightforward way of increasing the precision of a measurement instrument. To expound, let’s look at Figure 130B. Here we see that the pointer is no longer aligned with a line on the main scale, but instead it is slightly above 75.6 and below 75.7; thus, the gross measurement is 75.6. The first vernier line that coincides with a main scale line is the 5, shown with a blue arrow. The vernier scale gives the final digit of precision; since the 5 is aligned to the main scale, the precision measurement for Figure 130B is 75.65.

Since this vernier scale is 10% smaller than the main scale, moving the vernier scale by 1/10 of the main scale will align the next vernier marking. This asks the obvious question: what if the measurement is within the 1/10 precision of the vernier scale? Figure 130C shows just this. Again, the pointer line is in between 75.6 and 75.7, yielding the gross measurement of 75.6. If we look closely, we see that the vernier scale 7 (marked with a blue arrow) is very closely aligned to the main scale, giving a precision measurement of 75.67. However, the vernier scale 7 is very slightly above the main scale mark, and we can see that the vernier scale 8 (directly above 7) is slightly below its corresponding main scale mark. Hence, the scale on Figure 130C could be read as 75.673 ± 0.002. A reading error of about 0.002 would be appropriate for
this instrument.

Click to Enlarge
Figure 130A An example of how to read a vernier scale. The red arrow indicates what is known as the pointer. Since the tick mark labeled 10 on the vernier scale aligns with one of the tick marks on the main scale, this vernier scale is reading 75.60 (in whatever units the instrument measures).

Click to Enlarge
Figure 130B The red arrow indicates the pointer and the blue arrow indicates the vernier line that matches the main scale. This scale reads 75.65.

Click to Enlarge
Figure 130C The red arrow indicates the pointer, and the blue arrow indicates the vernier line that matches the main scale. This scale reads 75.67 but can be accurately read as
75.673 ± 0.002.

Reading a Vernier Scale on a Rotating Main Scale

The vernier scale may also be used on rotating scales where the main scale and vernier scale do not share units. Figures 130D and 130F show a vernier scale system for two different situations where the main scale is given in degrees and the vernier scale has ticks every 5 arcmin (60 arcmin = 1°). In each case, the scale on the top is the main scale, while the small scale on the bottom is the vernier scale.

In Figure 130D we see the pointer is lined up directly with the 341° line. Notice that the only other vernier scale tick marks that line up well with the main scale are ±60 arcmin. Since the pointer lines up with the main scale at 341°, the reading from Figure 130D is 341.00°.

There are two ways to determine the reading if the zero on the vernier scale line is between two lines of the main scale. For the first method, take the line on the left side of the pointer on the vernier scale and subtract that value (in arcmin) from the value on the main scale that is to the right on the main scale. As an example, in Figure 130E the vernier pointer is between 342° and 343°; using the left blue arrow of the vernier scale results in 343° - 15 arcmin = 342.75°. The second method is to take the reading from the blue arrow on the right side of the vernier pointer and add that value to the lower value from the main scale; reading the right blue arrow in Figure 130E results in 342° + 45 arcmin = 342.75°.

As we've seen here, vernier scales add precision to a standard scale measurement. While it takes a bit of getting used to, with a little practice, reading these scales is fairly straightforward. Vernier scales, whether they are direct or retrograde*, are read in the same fashion.

*A retrograde vernier scale has a larger spacing between its tick marks with N ticks for every N + 1 ticks on the main scale.

Figure 1: Vernier scale measuring 341.00°.

Click to Enlarge
Figure 130D An example of a vernier scale where the main scale and the vernier scale are in different units (degrees and arcmins, respectively). The red arrow indicates the pointer. This scale reads 341.00°.

Figure 2: Vernier scale measuring 342.75°.

Click to Enlarge
Figure 130E The red arrow indicates the pointer and the blue arrows give the precision value from the vernier scale.
This scale reads 342.75°.

Posted Comments:

Flavien Beffara (posted 2024-10-04 15:02:39.647)

I am trying to control a PRMTZ8/M with a KDC101 controller using Python. I used the code provided on GitHub titled "KDC101_Power_Meter_Insight_Code.py". The code compiles fine. Unfortunately, the stage does not rotate to the defined real angle value using JogMode like in the youtube video. I do not understand why it is moving slightly and stops. If I try to increase the value in "StepSize" to Decimal(30) it reaches an error. Could you please help me figure out what is the problem with the code ? Thank you very much in advance. Best regards.

dnewnham (posted 2024-10-10 10:24:52.0)

Thank you for your inquiry I will reach out to you directly to discuss your issue.

dnewnham (posted 2024-10-10 10:24:52.0)

Thank you for your inquiry I will reach out to you directly to discuss your issue.

Benquan Li (posted 2023-06-26 12:35:24.07)

hello, We're trying to design a machine using this part. Could you please provide a solidwork model of 2020version? My SW cannot open a future version of this model: https://www.thorlabs.com/thorproduct.cfm?partnumber=PRMTZ8 thank you so much Best, Benquan Li Atia Vision Campbell CA

fguzman (posted 2023-06-28 04:06:54.0)

Thanks for your enquiry. Unfortunately, it is not possible to create older versions of files, nor is it possible to roll back a version of Solidworks. We post a selection of files which can be used by almost anyone which should be appropriate in situations like this. The HTML files (eDrawings) are for customers who may not have any access to software which can open 3D model files. Step files, can be opened in older versions of Solidworks but may have graphical issues if the parts are too complex for the older SW version. I will contact you to further discuss this.

user (posted 2022-10-21 15:47:49.6)

How slowly can I rotate the stage in degrees/sec with the kinesis software?

jgreschler (posted 2022-10-28 03:46:05.0)

Thank you for reaching out to Thorlabs. Unfortunately we do not have a measured spec for this value currently. Additional specifications and data can be requested by emailing techsupport@thorlabs.com.

Michael McGivney (posted 2022-08-10 10:36:18.407)

Hi, Can you please provide additional details about the maximum loads the PRMTZ8 rotation stage can handle? I am currently designing a test set up and want to be sure the stage can handle the weight I need to place on top of it. Thank you, Michael McGivney

cwright (posted 2022-08-12 04:11:50.0)

Response from Charles at Thorlabs: Thank you for your query. The load capacity of this stage is specified as 1.5 kg, which assumes the load is centred on the top plate and the stage is flat on the table. A member of technical support will reach out to you to discuss your application and position of the load.

Sudhan Bhadade (posted 2019-08-08 06:51:39.933)

Hello, I am using the KDC101 cube with .NET in Labview. I have established a connection with the Kinesis interface using the .dll files. When I attempt to connect to the cube, I receive an error saying "No suitable devices found." When I use the Kinesis app, I can connect with the cube and use all the functions to power a rotational stage, but it fails to connect to my Labview VI. Can I please get some help with this?

rmiron (posted 2019-08-08 10:37:24.0)

Response from Radu at Thorlabs: Hello Sudhan. Have you set the SerialNumber property node before attempting to connect? If so, have you made sure to use KDC101's serial number?(as opposed to the stage's) Unfortunately, it sometimes (rarely) happens that the number printed on the cube is different from the one programmed into the unit. That is why it might be worth checking what serial number is shown by Kinesis. I will contact you directly in case these questions are not helpful.

paulbertier7 (posted 2018-04-13 14:20:09.58)

Hello, What is the minimum angle step? Cheers, Paul

bhallewell (posted 2018-04-20 09:19:03.0)

Response from Ben at Thorlabs: Thank you for your feedback, Paul. We state a Minimum Repeatable Incremental Motion of 0.04 degrees in the specs table.

maheshswami (posted 2018-02-15 02:02:56.527)

Does it have a through hole/clear axis if the tapped platform is removed.

bhallewell (posted 2018-02-21 03:42:21.0)

Response from Ben at Thorlabs: The top plate is a feature of a single moving world assembly & so you can't remove the top plate & use the stage. This stage is designed as a rotation stage as opposed to an optics rotator. For a through hole option, I'd recommend taking a look at our PRM1Z8. https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_ID=2875 Our K10CR1 stepper actuated optics rotator with integrated controller may also be of interest to you. https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_ID=8750&pn=K10CR1

Rotation Mount and Stage Selection Guide

Thorlabs offers a wide variety of manual and motorized rotation mounts and stages. Rotation mounts are designed with an inner bore to mount a Ø1/2", Ø1", or Ø2" optic, while rotation stages are designed with mounting taps to attach a variety of components or systems. Motorized options are powered by a DC Servo motor, 2 phase stepper motor, piezo inertia motor, or an Elliptec™ resonant piezo motor. Each offers 360° of continuous rotation.

Manual Rotation Mounts

Rotation Mounts for Ø1/2" Optics
Item #	MRM05(/M)	RSP05(/M)	CRM05	PRM05(/M)^a	SRM05	KS05RS	CT104
Click Photo to Enlarge
Features	Mini Series	Standard	External SM1 (1.035"-40) Threads	Micrometer	16 mm Cage-Compatible	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Compatible with 30 mm Cage Translation Stages and 1/4" Translation Stages^b
Additional Details

This mount is available in the PRM05GL5 bundle, which includes the PRM05 rotation mount with the SM05PM5 polarizing prism mount.
The CT104 is complatible with the 1/4" translation stages using our MS103(/M) adapter plate.
The CT104 is compatible with the CT1B(/M) cage translation stage, which is designed for use with 30 mm cage systems.

Rotation Mounts for Ø1" Optics
Item #	RSP1(/M)	LRM1	RSP1D(/M)	DLM1(/M)	CLR1(/M)	RSP1X15(/M)	RSP1X225(/M)	PRM1(/M)^a
Click Photo to Enlarge
Features	Standard	External SM1 (1.035"-40) Threads	Adjustable Zero	Two Independently Rotating Carriages	Rotates Optic Within Fixed Lens Tube System	Continuous 360° Rotation or 15° Increments	Continuous 360° Rotation or 22.5° Increments	Micrometer
Additional Details

This mount is available in the PRM1GL10 bundle, which includes the PRM1 rotation mount with the SM1PM10 polarizing prism mount.

Rotation Mounts for Ø1" Optics
Item #	LM1-A & LM1-B(/M)	CRM1T(/M)	CRM1LT(/M)	CRM1PT(/M)	KS1RS	K6XS
Click Photo to Enlarge
Features	Optic Carriage Rotates Within Mounting Ring	30 mm Cage-Compatible^a	30 mm Cage-Compatible for Thick Optics^a	30 mm Cage-Compatible with Micrometer^a	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Six-Axis Kinematic Mount^a
Additional Details

This mount also features four 4-40 (M3) holes on the rotation dial for use with the K6A1(/M) prism platform.

Rotation Mounts for Ø2" Optics
Item #	RSP2(/M)	RSP2D(/M)	PRM2(/M)	LM2-A & LM2-B(/M)	LCRM2A(/M)	KS2RS	K6X2
Click Photo to Enlarge
Features	Standard	Adjustable Zero	Micrometer	Optic Carriage Rotates Within Mounting Ring	60 mm Cage-Compatible	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Six-Axis Kinematic Mount
Additional Details

Manual Rotation Stages

Manual Rotation Stages
Item #	RP005(/M)	PR005(/M)	MSRP01(/M)	RP01(/M)	RP03(/M)	QRP02(/M)
Click Photo to Enlarge
Features	Standard					Two Hard Stops
Additional Details

Manual Rotation Stages
Item #	XRNR1(/M)	XRR1(/M)	PR01(/M)	CR1(/M)	XYR1(/M)	OCT-XYR1(/M)
Click Photo to Enlarge
Features	Fine Rotation Adjuster and 2" Wide Dovetail Quick Connect	Fine Rotation Adjuster and 3" Wide Dovetail Quick Connect	Fine Rotation Adjuster and SM1-Threaded Central Aperture	Fine Pitch Worm Gear	Rotation and 1/2" Linear XY Translation
Additional Details

The stage profile is higher when it is mounted using the screw slots rather than stacked on another stage or accessory with mating dovetails.
The OCT-XYR1(/M) stage includes the XYR1A solid sample plate. This plate can be detached from the stage to reveal the same mounting features present on the XYR1(/M) stage.

Motorized Rotation Mounts and Stages

Motorized Rotation Mounts and Stages with Central Clear Apertures
Item #	DDR25(/M)	PDR1C(/M)	PDR1(/M)	PDR1V(/M)	PDXR1(/M)
Click Photo to Enlarge
Features	Compatible with SM05 Lens Tubes, 16 mm Cage System, & 30 mm Cage System	Compatible with 16 mm Cage System	Compatible with SM05 Lens Tubes & 30 mm Cage System	Vacuum-Compatible; Also Compatible with SM05 Lens Tubes & 30 mm Cage System	Compatible with SM05 Lens Tubes & 30 mm Cage System
Additional Details

Motorized Rotation Mounts and Stages with Central Clear Apertures

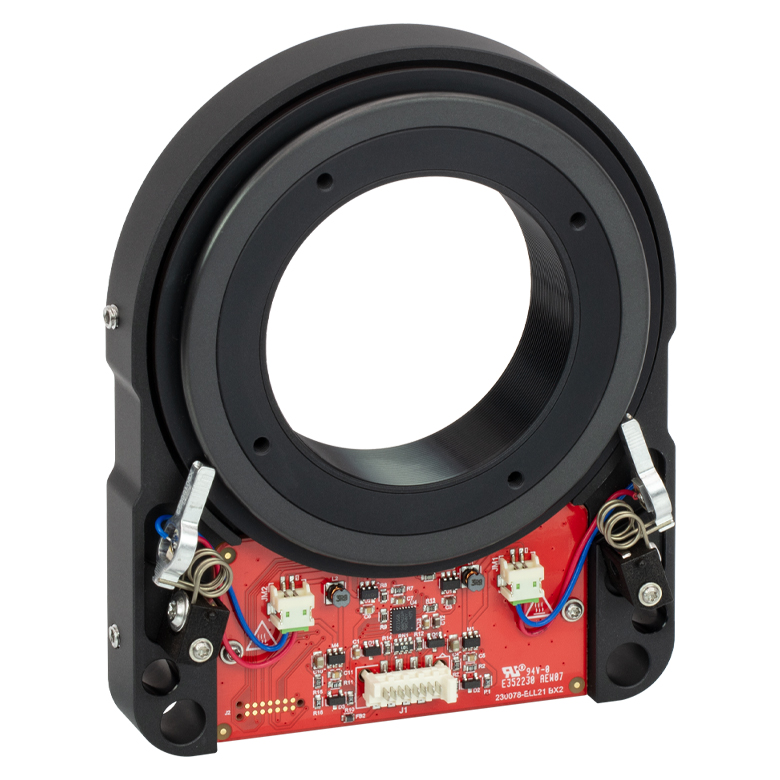

Item #	K10CR1(/M)	PRM1Z8(/M)^a	DDR100(/M)	ELL16	ELL14	ELL21(/M)	HDR50(/M)
Click Photo to Enlarge
Features	Compatible with SM1 Lens Tubes & 30 mm Cage System		Compatible with SM1 Lens Tubes, 16 mm Cage System, 30 mm Cage System	Compatible with SM05 Lens Tubes, Open Frame Design for OEM Applications	Compatible with SM1 Lens Tubes, Open Frame Design for OEM Applications	Compatible with SM2 Lens Tubes, Open Frame Design for OEM Applications	Compatible with SM2 Lens Tubes
Additional Details

Motor Type	2 Phase Stepper Motor with Worm Gear	DC Servo	Brushless DC Servo	Piezo Resonant Motor			2 Phase Stepper Motor with Worm Gear
Rotation Adjustment Range	360° Continuous
Rotating Platform/Carriage
Diameter	1.81" (46.0 mm)	1.97" (50.0 mm)	4.37" (111.0 mm)	-			3.86" (98.0 mm)
Height	0.84" (21.5 mm)	0.91" (23.0 mm)	1.57" (39.9 mm)	0.89" (22.6 mm)	0.75" (19.0 mm)	0.83" (21.0 mm)	1.73" (44.0 mm)
Threaded Mounting Holes	Six 4-40 (M3)	Four 6-32 (M4), Four 8-32 (M4), Four 4-40 with 30 mm Spacing	Eight 8-32 (M4), Four 1/4"-20 (M6), Four 4-40 with 16 mm Spacing, Four 4-40 with 30 mm Spacing	-		Four M3 x 0.5	Four 8-32 (M4)
Center Aperture	SM1 Internal Threads, 0.84" (21.5 mm) Deep	SM1 Internal Threads, 0.91" (23.0 mm) Deep	SM1 Internal Threads, 0.82" (21.0 mm) Deep	SM05 Internal Threads, 0.79" (20.0 mm) Deep	SM1 Internal Threads, 0.58" (14.7 mm) Deep	SM2 Internal Threads, 0.65" (16.5 mm) Deep	Ø50.0 mm Clear Aperture with SM1 Internal Threads, 6.9 mm Deep
Speed (Max)	10°/s	25°/s	1080°/s	500°/s	430°/s	260°/s	50°/s
Platform Adapter Plate(s)	K10CR1A2(/M)	PRM1SP1(/M)	NR360SP9(/M) NR360SP4(/M)	-		ELLA6(/M) ELLA7(/M) ELLA8	NR360SP9(/M) NR360SP8 NR360SP4(/M)
Base
Dimensions	4.21" x 2.60" (107.0 mm x 66.0 mm)	5.18" x 3.26" (131.5 mm x 82.8 mm)	4.53" x 4.53" (115 mm x 115 mm)	1.42" x 2.09" (36.0 mm x 53.0 mm)	2.60" x 3.25" (66.0 mm x 82.5 mm)	3.62" x 4.53" (92.0 mm x 115.0 mm)	7.46" x 4.55" (189.4 mm x 115.5 mm)
Stage Adapter Plates	K10CR1A1 K10CR1A3	PRM1SP2 PRM1SP3	-	-			NR360SP2(/M) NR360SP5(/M)
Bottom Surface Mounting Holes	-	Two 1/4" (M6) Counterbores	Four 1/4" (M6) Clearance Holes	-		Two 1/4" (M6) Clearance Holes	Four 1/4" (M6) Counterbores
Side Holes for Vertical Mounting	Three 8-32 (M4)	Four 8-32 (M4)	Eight 1/4"-20 (M6)	-		8-32 (M4 x 0.7)	Six 1/4"-20 (M6)
Cage System Compatibility	Four 4-40 Holes on Each Side with 30 mm Spacing	-	Four 4-40 Holes on Back Side with 30 mm Spacing	Four 4-40 Holes on Back Side and Two 4-40 Holes on Front Side with 30 mm Spacing	60 mm Cage using Four Ø0.12" (3.0 mm) Holes for 4-40 Screws, 30 mm Cage using SR025 Cage Rods to Adapt to ER Cage Rods	Four 4-40 Holes on Back Side with 30 mm Spacing	-

This stage is available in the KPRMTE(/M), which includes the PRMTZ8(/M) Motorized Rotation Stage with the KDC101 K-Cube^® DC Servo Motor Controller.

Motorized Rotation Mounts and Stages with Tapped Platforms
Item #	PRMTZ8(/M)^a	ELL18(/M)^b
Click Photo to Enlarge
Features	Tapped Mounting Platform for Mounting Prisms or Other Optics	Tapped Mounting Platform, Open Frame Design for OEM Applications
Additional Details

This stage is available in the KPRM1E(/M), which includes the PRMT1Z8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
This stage is available in the ELL18K(/M), which includes an interface board, mounting brackets, and connectors for PC control.

Motorized Rotation Stage

Zoom

Click to Enlarge

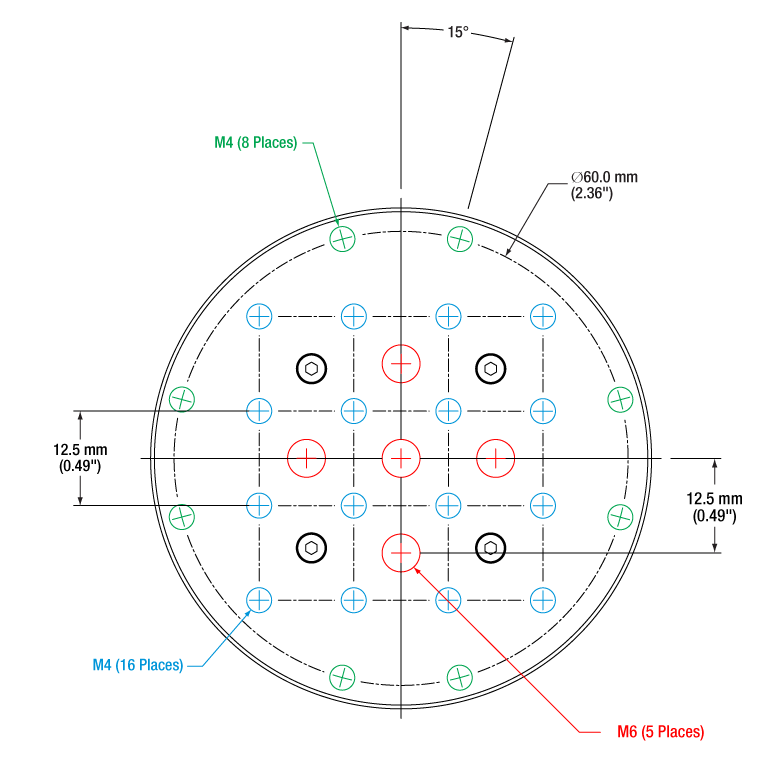

PRMTZ8/M Platform Taps

Click to Enlarge
PRMTZ8 Platform Taps

The rotating platform features five 1/4"-20 (M6) tapped holes and sixteen 8-32 (M4) holes for general optomechanics, as well as eight 6-32 (M4) holes for compatibility with our PM3 and PM4 prism clamping arms (available below).

The PRMTZ8 is supplied with 16" (0.4 m) of cable. An 8 ft (2.5 m) extension cable (PAA632) is available separately.

Motorized Rotation Stage and Controller

Zoom

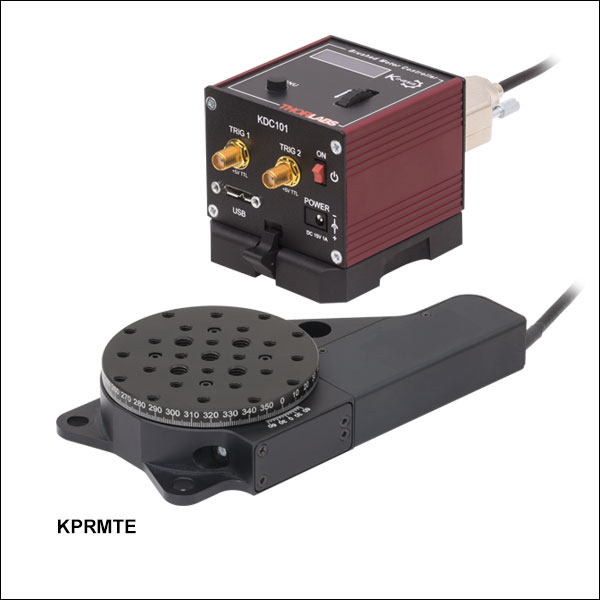

The KPRMTE(/M) bundle includes a PRMTZ8(/M) Motorized Rotation Stage with a KDC101 K-Cube^® DC Servo Motor Controller. This controller provides smooth, continuous motion that can be automated via the software interface. Each bundle ships complete with a KPS101* power supply and a location-specific adapter.

The KPRMTE(/M) is supplied with 16" (0.4 m) of cable. An 8 ft (2.5 m) extension cable (PAA632) is available separately.

*This previous-generation item is not available for individual purchase. If a replacement is needed, the KPS201 Power Supply can be used.

K-Cube^® DC Servo Motor Controller

K-Cube<sup>®</sup> DC Servo Motor Controller

Zoom

Click to Enlarge
KCH601 USB Controller Hub (Sold Separately) with Installed K-Cube^® Modules

Front Panel Velocity Wheel and Digital Display for Controlling Motorized Stages or Actuators
Two Bidirectional Trigger Ports to Read or Control External Equipment
Interfaces with Computer Using Included USB Cable
Fully Compatible with Kinesis Software Package
Compact Footprint: 60.0 mm x 60.0 mm x 49.2 mm (2.42" x 2.42" x 1.94")
Power Supply Not Included (See Below)

Thorlabs' KDC101 K-Cube^® Brushed DC Motor Controller provides local and computerized control of a single motor axis. It features a top-mounted control panel with a velocity wheel that supports four-speed bidirectional control with forward and reverse jogging as well as position presets. A backlit digital display is also included that can have the backlit dimmed or turned off using the top-panel menu options. The front of the unit contains two bidirectional trigger ports that can be used to read a 5 V external logic signal or output a 5 V logic signal to control external equipment. Each port can be independently configured.

The unit is fully compatible with our Kinesis software package. Please note that while the KDC101 controller is also fully supported by our XA software suite, the PRMTZ8(/M) stages are not supported at this time, so the Kinesis software package should be used. A full list of products supported by XA can be found here. Please see the Kinesis Software tab for more information.

Please note that this controller does not ship with a power supply. Compatible power supplies are listed below. Additional information can be found on the main KDC101 DC Servo Motor Controller page.

Compatible Power Supplies

Zoom

Click for Details
Figure 780B Each KPS201 power supply includes one region-specific adapter, which can be selected upon checkout.

Click to Enlarge
Figure 780A The KPS201 Power Supply Unit

Individual Power Supply
- KPS201: For K-Cubes^® or T-Cubes™ with 3.5 mm Jacks
USB Controller Hubs Provide Power and Communications
- KCH301: For Up to Three K-Cubes or T-Cubes
- KCH601: For Up to Six K-Cubes or T-Cubes

The KPS201 power supply outputs +15 VDC at up to 2.66 A and can power a single K-Cube or T-Cube with a 3.5 mm jack. It plugs into a standard wall outlet.

The KCH301 and KCH601 USB Controller Hubs each consist of two parts: the hub, which can support up to three (KCH301) or six (KCH601) K-Cubes or T-Cubes, and a power supply that plugs into a standard wall outlet. The hub draws a maximum current of 10 A; please verify that the cubes being used do not require a total current of more than 10 A. In addition, the hub provides USB connectivity to any docked K-Cube or T-Cube through a single USB connection.

For more information on the USB Controller Hubs, see the full web presentation.

Clamping Arms

Zoom

Click for Details
Figure 756A Mechanical Drawings

Provide Clamping Force for Our Platform Mounts
Threaded Hole on Top and Threaded Stud on Bottom of Post
- 6-32 Threads on PM3 and PM4
- 8-32 Threads on PM5
- M4 x 0.7 Threads on All Metric Versions
Maximum Optic Heights from 0.97" to 1.65" (24.6 mm to 41.8 mm)
Extension Posts Available to Increase Max Optic Height
- PM3SP(/M) with PM3(/M): Hold Optics up to 2.21" (56.1 mm) Tall
- PM4SP(/M) with PM4(/M): Hold Optics up to 3.61" (91.7 mm) Tall

Click to Enlarge
Figure 756B Clamping Arm Extension Posts with Metric Indicator Groove

Thorlabs' Clamping Arms provide clamping force to secure optics to our kinematic platform mounts, stages, and V-clamps. The PM3(/M) accommodates optics up to 0.97" tall and features a 0.69" center-to-center distance between the post and the nylon-tipped setscrew that holds the optic. The PM4(/M) accommodates optics up to 1.61" and features a 1.16" center-to-center distance between the post and the nylon-tipped setscrew. The maximum optic height of the PM3(/M) or PM4(/M) Clamping Arms can be extended using our PM3SP(/M) or PM4SP(/M) Extension Posts, respectively. These extension posts are identical to the posts included in each complete clamping arm. Each clamping arm features 6-32 (M4 x 0.7) threads. The PM3 and PM4 can be mounted in 8-32 tapped holes by using the AS6E8E thread adapter, which features internal 6-32 threads and external 8-32 threads. This thread adapter has an outer diameter of 0.24", which is the same as the PM4SP extension post and the post included with the PM4 clamping arm. This allows the clamping arm to be adjusted across the seam between either post and the adapter. The smaller diameters of the included post for the PM3 clamping arm and the PM3SP extension post cause the thread adapter to act as a stop for the clamping arm.

The PM5(/M) clamping arm is made entirely from heat-treated stainless steel, which helps maintain stability in fluctuating temperatures and provides vacuum compatibility. This clamping arm is recommended for use with the POLARIS-K1M4(/M), but it can be used with any platform mount or stage that has one or more 8-32 (M4 x 0.7) tapped holes. The PM5(/M) can hold optics up to 1.65" tall, and the distance from the post center to the contact point that holds the optic is 0.90".

Each clamping arm is attached to its post using a flexure mechanism that locks with a 5/64" (2.0 mm) balldriver or hex key. The setscrew on top of the clamping arm also accepts a 5/64" (2.0 mm) balldriver or hex key in order to clamp down on the optic. The post includes a through hole which can be leveraged for added torque when tightening down the post. Please see Figure 756A for additional information.

Based on your currency / country selection, your order will ship from Newton, New Jersey

+1 Qty Docs Part Number - Imperial Price Available

PM3	Small Adjustable Clamping Arm, 6-32 Threaded Post

$23.39

Today

PM3SP Customer Inspired! Extension Post for PM3 Clamping Arm, 6-32 Threaded

$6.48

Today

PM4	Large Adjustable Clamping Arm, 6-32 Threaded Post

$28.60

Today

PM4SP Customer Inspired! Extension Post for PM4 Clamping Arm, 6-32 Threaded

$6.48

Today

PM5	Stainless Steel Adjustable Clamping Arm, 8-32 Threaded Post

$71.03

Today

+1 Qty Docs Part Number - Metric Price Available

PM3/M Small Adjustable Clamping Arm, M4 x 0.7 Threaded Post

$23.39

Today

PM3SP/M Customer Inspired! Extension Post for PM3/M Clamping Arm, M4 x 0.7 Threaded

$6.48

Today

PM4/M Large Adjustable Clamping Arm, M4 x 0.7 Threaded Post

$28.60

Today

PM4SP/M Customer Inspired! Extension Post for PM4/M Clamping Arm, M4 x 0.7 Threaded

$6.48

Today

PM5/M Stainless Steel Adjustable Clamping Arm, M4 Threaded Post

$71.03

Today

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous			Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°	Manual, 360° Continuous
Optic Mounting	Internally SM05-Threaded Carriage
Maximum Accepted Optic Thickness	0.23" (5.8 mm)	0.23" (5.8 mm)	0.26" (6.5 mm)	0.23" (5.9 mm)	0.24" (6.0 mm)	0.41" (10.4 mm)	0.29" (7.3 mm)
Post Mounting	4-40 (M3) Stud	8-32 (M4) Tap	None	8-32 (M4) Tap	None	Two Counterbores for 8-32 (M4) Cap Screws	Two Counterbores for 4-40 (M3) Cap Screws
Cage System Compatibility	N/A				Four Bores for ∅4 mm Cage Rods with 16 mm Spacing	N/A	N/A^c

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous					Manual, Continuous: 360°; Discrete: 15°	Manual, Continuous: 360°; Discrete: 22.5°	Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°
Optic Mounting	Internally SM1-Threaded Carriage
Maximum Accepted Optic Thickness	0.47" (11.9 mm)	0.34" (8.6 mm)	0.51" (12.9 mm)	0.25" (6.4 mm)	0.27" (6.8 mm)	0.50" (12.7 mm)	0.50" (12.7 mm)	0.50" (12.7 mm)
Post Mounting	8-32 (M4) Tap	N/A	8-32 (M4) Tap
Cage System Compatibility	N/A							Four 4-40 (M3) Taps on Rotation Dial with 30 mm Spacing

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous			Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°	Manual, 360° Continuous
Optic Mounting	Internal SM1 Threads in LM1-A	Internally SM1-Threaded Carriage	Double-Bore with Setscrew	Internally SM1-Threaded Carriage
Accepted Optic Thickness	Max: 0.37" (9.4 mm)	Max: 0.37" (9.4 mm)	Min: 0.31" (7.9 mm)	Max: 0.37" (9.4 mm)	Max: 0.47" (11.9 mm)	Max: 0.55" (14 mm)
Post Mounting	8-32 (M4) Tap in LM1-B	8-32 (M4) Tap			Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility	N/A	Four Bores for ∅6 mm Cage Rods with 30 mm Spacing			N/A

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous		Coarse: Manual, 360° Continuous; Fine: ±7° Micrometer	Manual, 360° Continuous
Optic Mounting	Internally SM2-Threaded Carriage			Internal SM2 Threads in LM2-A	Internally SM2-Threaded Carriage
Maximum Accepted Optic Thickness	0.51" (13 mm)	0.54" (13.7 mm)	0.48" (12.2 mm)	0.46" (11.7 mm)	0.52" (13.2 mm)	0.47" (12 mm)	0.53" (13.4 mm)
Post Mounting	8-32 (M4) Tap			8-32 (M4) Tap in LM2-B	8-32 (M4) Tap	Four Counterbores for 8-32 (M4) Cap Screws	Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility	N/A		Four 4-40 (M3) Taps on Rotation Dial with 60 mm Spacing	N/A	Four Bores for Ø6 mm Cage Rods with 60 mm Spacing	N/A	N/A

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous
Mounting Platform
Diameter	Ø1.00" (Ø25.4 mm)	Ø1.00" (Ø25.4 mm)	Ø1.40" (Ø35.6 mm)	Ø2.07" (Ø52.8 mm)	Ø4.29" (Ø109.0 mm)	Ø2.00" (Ø50.8 mm)
Height	0.67" (17.0 mm)	0.75" (19.1 mm)	0.51" (13.1 mm)	0.63" (16.1 mm)	0.70" (17.8 mm)	1.00" (25.4 mm)
Taps	Six 4-40 (M3) One 1/4"-20 (M6)	One 8-32 (M4) Eight 4-40 (M3)	Four 4-40 (M3) One 8-32 (M4)	Four 8-32 (M4) One 1/4"-20 (M6)	Eight 6-32 (M4) Sixteen 8-32 (M4) Thirteen 1/4"-20 (M6)	Four 6-32 (M4) Four 8-32 (M4) Five 1/4"-20 (M6)
Additional Holes	Two Ø0.13" (Ø3.2 mm) Holes for FiberBench Accessories	-	Four Clearance Holes for 4-40 (M3) Cap Screws	-	-	-
Platform Adapter Plate(s)	-	-	-	-	-	-
Base
Dimensions	1.50" x 1.50" (38.1 x 38.1 mm)	1.50" x 1.50" (38.1 x 38.1 mm)	1.78" x 1.40" (45.2 x 35.6 mm)	2.45" x 2.45" (62.2 x 62.2 mm)	4.65" x 4.65" (118.1 x 118.1 mm)	2.55" x 2.55" (64.8 x 64.8 mm)
Mounting Holes	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 4-40 (M3) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Counterbores for 1/4"-20 (M6) Cap Screws
Side Taps for Vertical Mounting	-	-	One 4-40 (M3)	One 8-32 (M4)	Three 8-32 (M4)	-
Cage System Compatibility	N/A

Rotation Drive Mechanism and Adjustment Range	Manual: 360° Continuous; Fine: Adjuster Screw, ±5°	Manual: 360° Continuous; Fine: Adjuster Screw, ±5°	Manual: 360° Continuous; Fine: Micrometer, ±5°	Worm Gear, 360° Continuous	Manual, 360° Continuous with 1/2" (13 mm) Linear Travel Along X and Y Axes with Micrometer
Mounting Platform
Diameter	Ø2.21" (Ø56.0 mm)	Ø3.19" (Ø81.0 mm)	Ø2.70" (Ø68.6 mm)	Ø1.70" (Ø43.2 mm)	Ø4.18" (Ø106.0 mm)	Ø4.04" (Ø102.5 mm)
Height	On Breadboard: 0.91" (23.0 mm)^a Dovetail Stacked: 0.83" (21.0 mm)	On Breadboard: 0.91" (23.0 mm)^a Dovetail Stacked: 0.83" (21.1 mm)	1.00" (25.3 mm)	1.00" (25.4 mm)	1.00" (25.4 mm)	1.65" (41.8 mm)
Taps	Thirteen 1/4"-20 (M6) Four 8-32 (M4) Four 6-32 (M4)	Thirteen 1/4"-20 (M6) Four 8-32 (M4) Four 6-32 (M4)	Four 4-40 (M3) Ten 6-32 (M4) Six 1/4"-20 (M6)	Four 4-40 (M3) Eight 6-32 (M4) Four 8-32 (M4)	Eight 4-40 (M3) Twelve 8-32 (M4) Sixteen 1/4"-20 (M6)	-^b
Additional Holes	-	-	Ø0.94" (Ø23.9 mm) Clear Aperture with SM1 Threading	-	Ø0.90" (Ø22.9 mm) Clear Aperture with SM1 Threading	-^b
Platform Adapter Plate(s)	-	-	PR01A(/M) CRA30(/M)	CR1A(/M)	XYR1A	-^b
Base
Dimensions	3.35" x 2.52" (85.0 mm x 63.9 mm)	4.33" x 3.58" (110.0 mm x 91.0 mm)	2.75" x 3.50" (69.9 x 88.9 mm)	2.76" x 2.10" (70.1 x 53.4 mm)	5.50" x 4.42" (139.7 x 112.3 mm) (Not Including Micrometers)
Mounting Holes	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Two Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws
Side Taps for Vertical Mounting	-	-	Two 1/4"-20 (M6)	-	-
Cage System Compatibility	-	N/A	Four 4-40 Taps on Top Surface for 30 mm Cage System	N/A	Four 4-40 Taps on Top Surface for 30 mm Cage System Four 4-40 Taps on Top Surface for 60 mm Cage System Four 4-40 Taps on Bottom Surface for 60 mm Cage System	-^b

Motor Type	Brushless DC Servo	Piezo Inertia Drive
Rotation Adjustment Range	360° Continuous
Rotating Platform/Carriage
Diameter	1.14" (29.0 mm)	1.10" (28.0 mm)	1.34" (34.0 mm)	1.96" (49.7 mm)
Height	1.12" (28.5 mm)	0.71" (18.0 mm)		0.91" (23.0 mm)
Threaded Mounting Holes	Four 4-40 with 16 mm Spacing	Four 8-32 (M4 x 0.7), Four 4-40 with 16 mm Spacing	Four 8-32 (M4 x 0.7)	Four 8-32 (M4 x 0.7), Four 4-40 with 30 mm Spacing Four 2-56 (M2 x 0.4)
Center Aperture	SM05 Internal Threads, 1.2" (28.5 mm) Deep	Ø4.9 mm Clear Aperture with 1/4"-20 (M6 x 1.0) Internal Threads, Thru	Ø9.0 mm Clear Aperture with SM05 Internal Threads, 2.5 mm Deep	Ø9.0 mm Clear Aperture with SM05 Internal Threads, 3.5 mm Deep
Speed (Max)	1800°/s	100°/s	20°/s	30°/s
Base
Dimensions	2.19" x 2.19" (55.6 mm x 55.6 mm)	1.18" x 1.18" (30 mm x 30 mm)	1.57" x 1.57" (40.0 mm x 40.0 mm)	2.20" x 2.20" (56.0 mm x 56.0 mm)
Bottom Surface Mounting Features	-	Two #2 (M2) Slots	Two 8-32 (M4 x 0.7) Holes	Two #8 (M4) Counterbores Two 8-32 (M4 x 0.7) Holes
Side Holes for Vertical Mounting	Four 8-32 (M4 x 0.7) Eight 4-40	Three 8-32 (M4 x 0.7)	One 8-32 (M4 x 0.7), Two Sides	One 8-32 (M4 x 0.7)
Cage System Compatibility	Four 4-40 Holes on Back Side with 16 mm Spacing, Four 4-40 Taps on Front Side with 30 mm Spacing	-	Ø6 mm Holes for ER Cage Rods with 30 mm Spacing	Four 4-40 Taps on Rotating Platform with 30 mm Spacing

Motorized Precision Rotation Stage with DC Servo Motor

Features

Motor Connector Pin Out

D-Type Male

Software

Reading a Vernier Scale on a Linear Main Scale

Reading a Vernier Scale on a Rotating Main Scale

Rotation Mount and Stage Selection Guide

Manual Rotation Mounts

Manual Rotation Stages

Motorized Rotation Mounts and Stages

Motorized Rotation Stage

Motorized Rotation Stage and Controller

K-Cube® DC Servo Motor Controller

Compatible Power Supplies

Clamping Arms

K-Cube^® DC Servo Motor Controller
