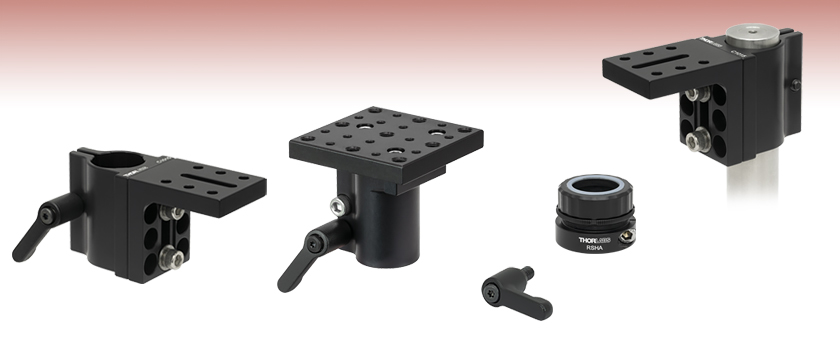

Ø1" (Ø25.0 mm) Post Mounting Bracket


  • Sturdy Bracket for Our Ø1" (Ø25.0 mm) Solid Stainless Steel Posts
  • Contains #8 (M4) and 1/4" (M6) Clearance Holes and Slots
  • Coarse Height Adjustment Using Quick-Release Handle

C1015

Mounting Bracket

C10QR

Quick-Release Handle

Application Idea

C1015 Mounting Bracket
on a Ø1" Post (Sold Separately)

Related Items


Please Wait
Ø1" (Ø25.0 mm) Post Accessories
Construction Accessories
Vertical Mounting Clamps
Horizontal Mounting Bracket

Features

  • C1015(/M) Bracket Provides a Rigid Horizontal Mounting Platform for our Ø1" (Ø25.0 mm) Posts (Sold Separately)
  • C10QR(/M): Quick-Release Handle Allows Post Clamps to be Easily Repositioned

The C1015(/M) Horizontal Mounting Bracket for Ø1" (Ø25.0 mm) Posts offers six #8 (M4) counterbored mounting holes and a #8 (M4) counterbored slot. Alternatively, the detachable bracket can be repositioned so that the surface with the #8 (M4) counterbores is secured to the clamp using 8-32 (M4 x 0.7) screws (not included), providing access to six 1/4" (M6) counterbored holes and a 1/4" (M6) slot. The bracket attaches to the post using a flexure clamp with a quick-release handle. These platforms are a perfect alternative to our precision Lab Jacks when fine tuning of the position is not required.

The C10QR(/M) Quick-Release Handle is included with the C1015(/M) bracket and is also available separately below. The handle allows for a simple and reliable way of securing these clamps to a post. It is 1.44" (36.5 mm) long and contains a 1/4"-20 (M6) threaded stud that engages the part by simply rotating the handle. Once the handle is tightened to secure a clamp to a post, the internal ratchet-type mechanism allows for the handle's rotational position to be adjusted without actuating the mounting stud. Simply pull the handle outwards to disengage it from the mounting stud then rotate it to a more convenient position. This feature ensures that the handle will always be accessible to the user.


Posted Comments:
No Comments Posted

Ø1" (Ø25.0 mm) Post Mounting Bracket

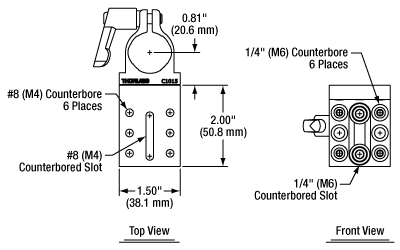

Mechanical Drawing
Click for Details

Dimensions and Mounting Features
  • Six #8 (M4) Counterbored Mounting Holes
  • #8 (M4) Clearance Slot, 1" (25.4 mm) Long
  • Can Be Reconfigured to Access Six 1/4" (M6) Counterbores & a Slot
  • Includes C10QR(/M) Quick-Release Handle

The C1015(/M) mounting bracket fits Ø1" (Ø25.0 mm) diameter posts. The detachable angle bracket provides an array of mounting options including six #8 (M4) counterbored mounting holes and a 1" (25.4 mm) long, #8 (M4) clearance slot. It can be removed and flipped to offer access to six 1/4" (M6) counterbores and a 1/4" (M6) counterbored slot. In this alternate configuration, 8-32 (M4 x 0.7) screws (not included) are required to mount the bracket to the clamp.

A quick-release handle [Item# C10QR(/M)] is used to secure the clamp in place once the desired height has been reached.
