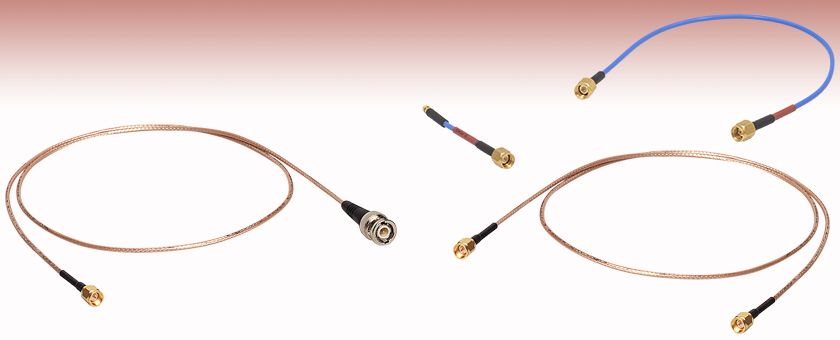

SMA Cables

Click to Enlarge
Each Cable is Terminated with SMA Male Connectors

Click to Enlarge

• Available in 6" to 48" Lengths
• 50 Ω Impedance
• DC - 3 GHz Frequency Range
• 750 V (RMS) Dielectric Withstanding Voltage
• 250 V (RMS) Working Voltage
• Ø0.1" (Ø2.5 mm) Cable Diameter

Click to Enlarge
Each Cable is Terminated with SMA Male Connectors

• Premium Microwave Cables for High-Frequency Applications
• Available in 3" to 120" Lengths
• 50 Ω Impedance
• DC - 26 GHz Frequency Range
• 1500 VDC Withstand Voltage for Lengths up to 36"
• 1000 VDC Withstand Voltage for 72" and 120" Lengths
• 2.6 mm Cable Diameter

Thorlabs’ SMA-to-SMA Microwave Cables support frequencies from DC up to 26 GHz. Each flexible cable is terminated with an SMA male connector on either end (see the image to the right). They are available in lengths ranging from 3" to 120". Each cable has a low VSWR from DC to 26 GHz as well as a low insertion loss. In general, we recommend using the shortest cable that is suitable for your application.

The SMA connector can mate directly to a 2.92 mm, 3.5 mm, or K connector. As a result, these cables are compatible with many of Thorlabs’ High-Speed Detectors or Fiber-Coupled EO Modulators that use SMA connectors.

For more information on Thorlabs’ full selection of Premium Microwave Cables for high-frequency applications, see the full web presentation.

A preset torque wrench is available below to ensure that the proper mating torque is supplied when connecting these cables. A torque wrench with a preset torque value should always be used to mate these coaxial connectors. Not doing so can damage the cable or reduce its overall performance.

Item #	Length	Max Insertion Loss	Insertion Loss Plot (Click to Enlarge)	Minimum Bend Radius	Withstand Voltage	Maximum Average Power
SMM3	76 mm ± 8 mm (3.00" ± 0.30")	0.9 dB		6.4 mm	1500 VDC	31 W @ 10 GHz
SMM6	152 mm ± 10 mm (6.00" ± 0.40")	1.3 dB
SMM12	305 mm ± 10 mm (12.00" ± 0.40")	2.0 dB
SMM24	610 mm ± 10 mm (24.00" ± 0.40")	3.5 dB
SMM36	914 mm ± 10 mm (36.00" ± 0.40")	4.9 dB
SMM72	1829 mm ± 20 mm (72.00" ± 0.80")	9.5 dB		14 mm	1000 VDC	28 W @ 10 GHz
SMM120	3048 mm ± 30 mm (120.00" ± 1.20")	15.3 dB

Click for Details
Boot Style May Vary

Click to Enlarge
Boot Style Pictured Above is Only Representative

• Available in 6" to 48" Lengths
• 50 Ohm Impedance
• DC - 4.0 GHz Frequency Range
• 750 V (RMS) Dielectric Withstanding Voltage
• 250 V (RMS) Working Voltage
• Ø0.1" (Ø2.5 mm) Cable Diameter
• RG-316 Cable

Click to Enlarge
SMA Male to SMP Female
(Item #s SMGF3 and SMGF6)

Click to Enlarge
SMA Female to SMP Female
(Item #s SFGF3 and SFGF6)

• Premium Microwave Cables for High-Frequency Applications
• 50 Ω Impedance
• Available in 3" or 6" Lengths
• DC - 18 GHz Frequency Range
• 1500 VDC Withstand Voltage
• 2.64 mm Cable Diameter
• Available with SMA Male or Female Connector to SMP Female Connector

Thorlabs’ Premium Microwave Adapter Cables have an SMP female connector on one end and either a male or female SMA connector on the other. Each style of adapter cable is available in 3" or 6" lengths. Each cable has a low VSWR of ≤1.4 from DC to 18 GHz, as well as a low insertion loss (see the table below). In general, we recommend using the shortest cable that is suitable for your application.

The SMP connector can mate directly to a GPO^® connector, while the SMA connector can mate directly to a 2.92 mm, 3.5 mm, or K™ connector. The GPO connector compatibility makes these cables suitable for use with Thorlabs’ Fiber-Coupled EO Modulators.

For more information on Thorlabs’ full selection of Premium Microwave Cables for high-frequency applications, see the full web presentation.

A preset torque wrench is available below to ensure that the proper mating torque is supplied when connecting these cables. A torque wrench with a preset torque value should always be used to mate these coaxial connectors. Not doing so can damage the cable or reduce its overall performance.

Click to Enlarge

Click to Enlarge

• MMCX Male Connector to SMA Male Connector
• 1 m Cable Length
• DC - 6 GHz Frequency Range
• 50 Ω Normal Impedance
• 170 V Max Operating Voltage

The CA3439 RG-174 coaxial cable features a male MMCX connector on one end and a male SMA connector on the other. It can be connected to an I/O port on the Kinesis^® Vertical Translation Stage for external triggering applications.

Click to Enlarge
The Wrench is Engraved for Easy Identification in the Field

• Break-Over Design Ensures Proper Mating Torque is Supplied
• Preset to 5 in-lbs (0.57 N•m) to Prevent Over-Tightening of Brass SMA Connectors
• Engraved with Preset Torque Value, Torque Direction, Wrench Size, and Item #

These 5/16” Torque Wrenches have a preset torque value of 5 in-lbs to prevent over-tightening most SMA connectors. When the preset torque value has been achieved, the break-over design will cause the pivoting joint to bend. This will prevent further force from being applied to the connector. The wrench's hex head will move back into place once the force is removed. Each wrench is engraved with its preset torque value, torque direction, wrench size, and item # for easy identification in the field.

The preset torque value for each wrench is guaranteed for one year from the date of purchase. If necessary, the wrench may be returned to Thorlabs for recalibration, please contact Tech Support for details.

Click to Enlarge

• Wall Mount Cable Racks
• Store Cables Straight and Untangled
• T1508 is Ideal for Fiber Optic Patch Cables

The T1508 is a test lead holder for wires up to 0.210" (5.33 mm) in diameter and has 14 slots for cables. It is ideal for holding fiber optic patch cables.

The T2708 is a test lead holder for wires up to 0.450" (11.43 mm) in diameter and has 9 slots for cables.

The cable racks are made from cold rolled steel with a baked enamel finish. The wall mounting holes are separated by 3" (76.2 mm). Both racks are 11" (279 mm) long and extend outward from the wall by 3.5" (88.9 mm).
