Laser Diode Tools and Accessories
Ø9.0 mm LD
Ø9.0 mm LD
Ø5.6 mm LD
Designed to Remove Cans from
Ø3.8 mm LD
Thorlabs offers a versatile range of accessories for convenient integration of laser diodes into functional systems. These laser diode sockets are ideal for OEM-type implementations and are compatible with our selection of Ø3.8 mm, Ø5.6 mm, Ø9 mm, and TO-5 laser diode packages. Our large selection of strain-relieved assemblies provides a safe and convenient method of connecting your Ø5.6 mm to Ø9 mm laser diodes to our line of Laser Diode Drivers.
Thorlabs also offers a hand-held diode can opener (WR1) designed to remove the cap from TO-style diode packages. Removing the cap from the diode package allows for closer access to the actual laser chip and is beneficial when the entrance windows are adversely impacting an optical signal with etalon effects or wavelength filtering.

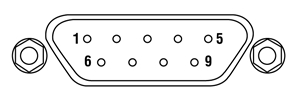

Strain Relief Cable DB9 Connector Pin Configurations

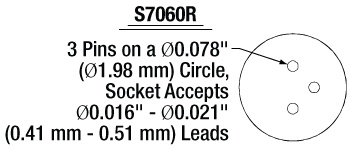

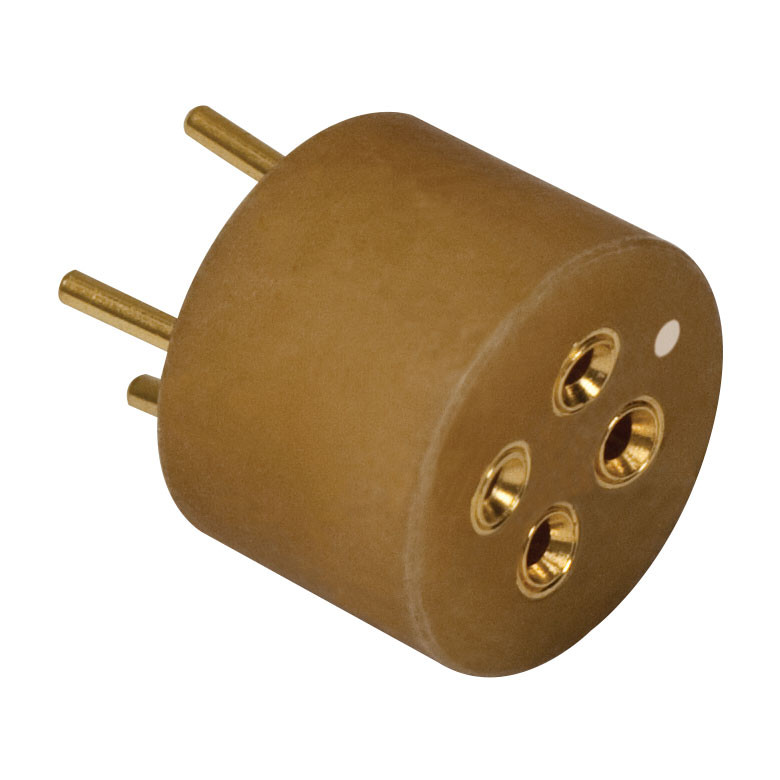

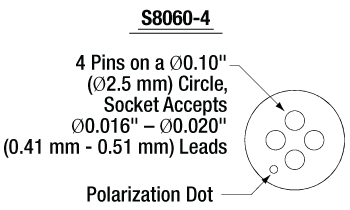

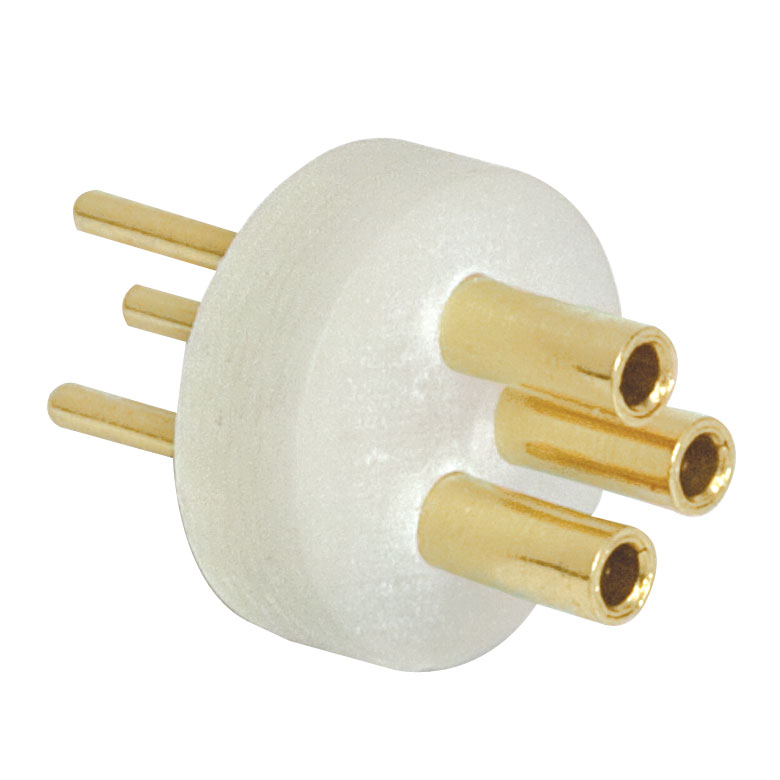

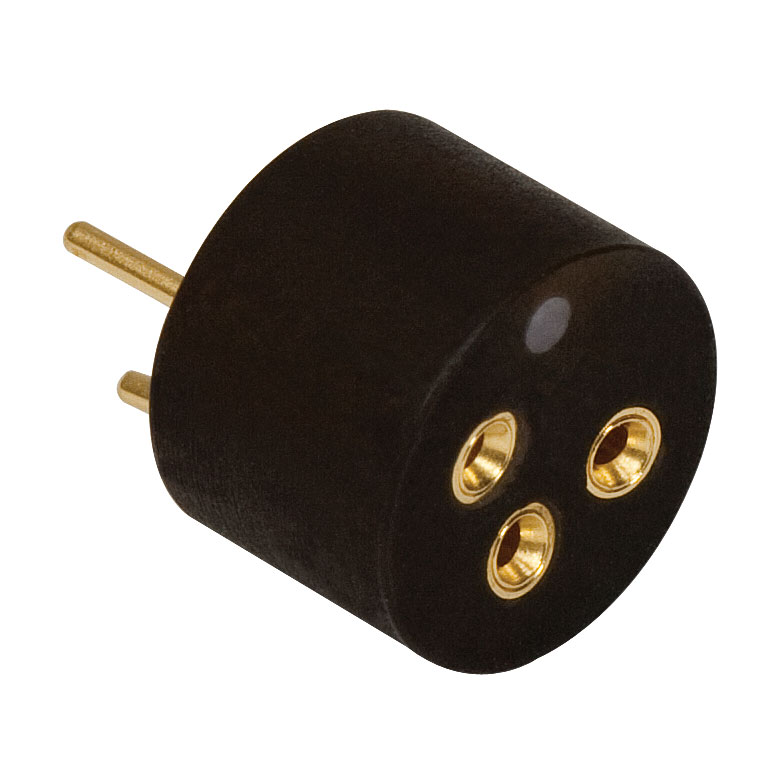

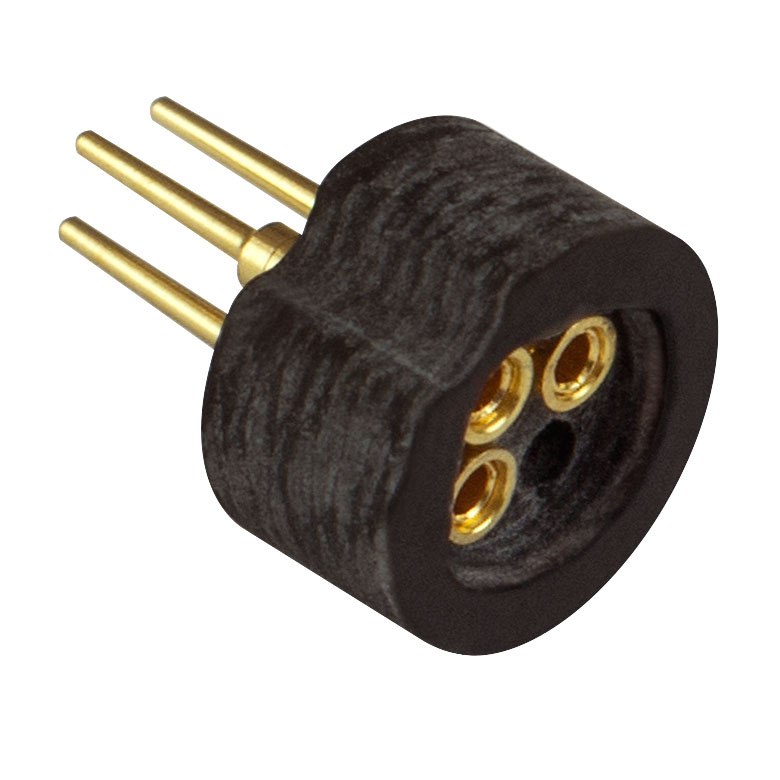

Thorlabs offers a range of laser diode sockets that provide compatibility with our wide selection of Ø3.8 mm, Ø5.6 mm, Ø9 mm, and TO-5 Can laser diode packages. These sockets have gold-plated BeCu contacts and meet RoHS compliance. The S8060 and S8060-4 sockets have a polarization dot on the top of the package (see drawings below for more information). Colors vary by lot and may be white, off white, black, or tan.
These strain relief and ESD protection products offer a convenient means of connecting a Ø5.6 mm or Ø9 mm laser diode to many of Thorlabs' laser diode controllers. Each model comes with a laser socket mounted to a small printed circuit board (PCB). The PCB contains a Schottky diode to clamp any reverse voltages that might appear across the laser diode, as well as a Zener diode to shunt any excessive voltages or ESD away from the diode.
Each model corresponds to one or more of the standard Pin Styles for laser diodes (see the diagram below) and is compatible with our Laser Diode Collimation and Focusing Tubes, Ø1/2" Post Mounts, and Cage Plate Mounts. SR9 models are designed for laser diodes with forward voltages up to 3.3 V, while SR9H models are designed for laser diodes with forward voltages up to 7.5 V. Each strain relief is available with or without a DB9 connector. Models with item #'s that end in -DB9 are pin compatible with many of our Laser Diode Controllers (see the strain relief cable and controller pin diagrams to determine compatibility).
Note: These cables are not designed to provide any temperature regulation. More information on temperature regulating a laser diode is provided in the Laser Diode Tutorial.
Supported Pin Codes
The WR1 is a hand-held device designed to remove the cans from standard laser packages. Many applications, such as fiber pigtailing, can be optimized by having closer access to the laser chip.

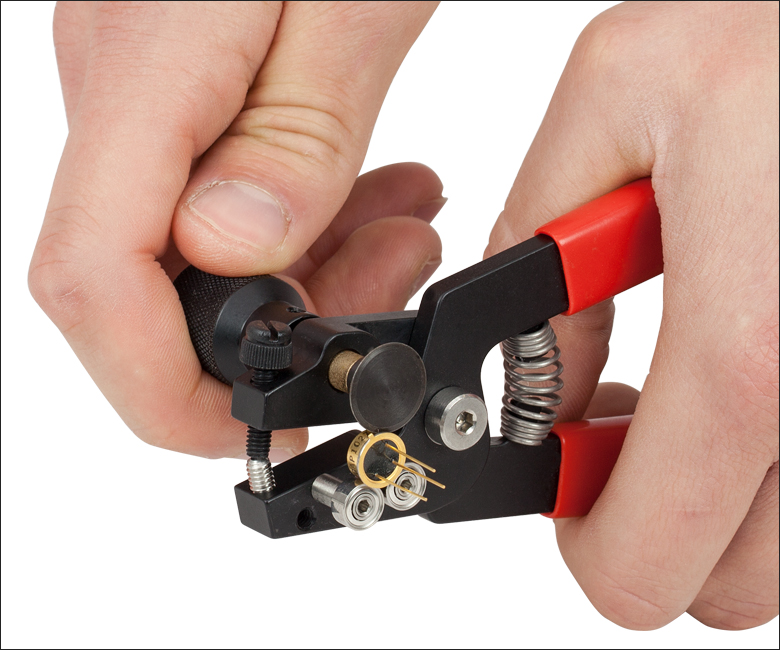

Operation is as simple as placing a diode onto the two rollers at the front of the device, lightly applying pressure with the rubber covered grips, and turning the blade actuator (as shown in the image to the right). The precision ground, hardened steel blade will easily cut through the wall of the diode can, safely removing it. For packages greater than 20 mm (0.8") in diameter, the rollers must be removed and reinstalled in their outer mounting positions using a 5/64" (2 mm) hex key.
The WR1 is also compatible with any photodiodes and LEDs packaged in one of the TO can sizes listed above.
