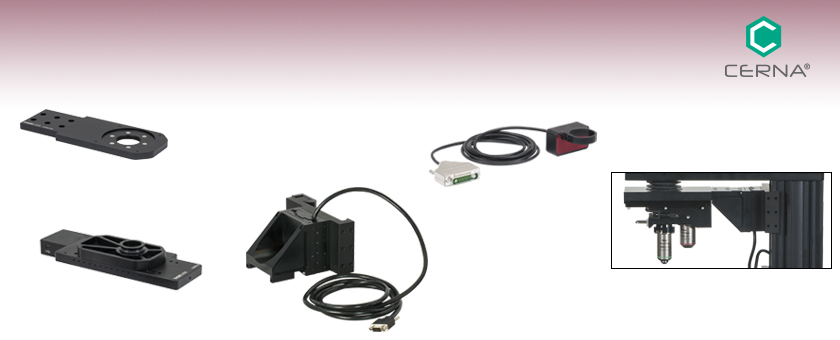

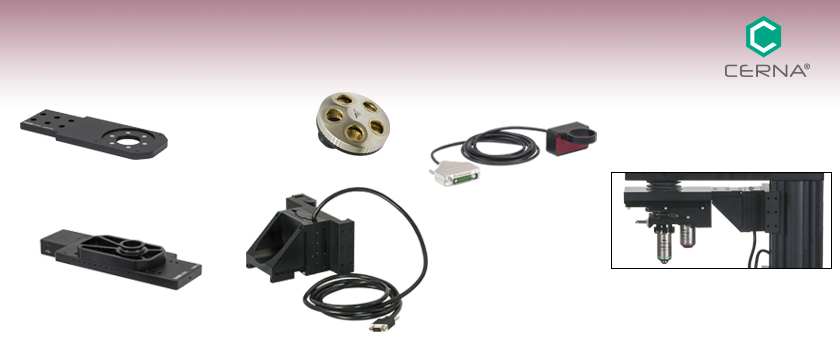

Objective Mounting for DIY Cerna® Systems


  • Single-, Dual-, or Quintuple-Objective Holders
  • Focusing Modules with 1" Travel Range
  • Piezo Objective Scanner for High-Speed Z-Stack Acquisition

CSN100

Single-Objective Nospiece

PFM450E

Piezo Objective Scanner
(Controller Included)

ZFM2020

Motorized Focusing Module

CSN500

Quintuple-Objective Nosepiece

CSN210

Motorized, Dual-Objective Nosepiece

Application Idea

A CSN1202 Manual Retracting, Dual-Objective Nosepiece is Shown with Two Objectives Mounted

Related Items


Please Wait
DIY Cerna System with Custom Mounting
Click to Enlarge

 This system uses our CSN200
Dual-Objective Nosepiece, BSA2000 Condenser Arm, and ZFM2020 and ZFM2030 Focusing Modules to mount and motorize an objective and condenser.
Unleashed

Share Your Work With Us!

Have you built a unique setup using DIY Cerna components? Send a picture to ImagingTechSupport@thorlabs.com! Our customers often inform our engineering efforts and inspire us to make new products and improvements for the entire community. We'd love to hear from you.

Features

  • Place Objectives at 7.74" Throat Depth of DIY Cerna® Microscope
  • Variety of Threads for Objective Mounting
  • Nosepieces for 1, 2, or 5 Objectives
  • Motorized, Dual-Objective Nosepiece for Easy Objective Changing
  • Piezo-Actuated Objective Scanner for High-Frame-Rate Z-Stack Acquisition
    • Adapters (Sold Separately) Support a Variety of Standard Microscope and Objective Threads
  • Macro Lens Nosepiece with Internal SM2 (2.035"-40) Threads
  • 60 mm Cage System Compatibility on Select Nosepieces
  • Motorized Focusing Modules with 1" of Z-Travel Secure Nosepieces to Microscope Body
SM2 Attachment
Click to Enlarge

The Mounting Arms for Our Nosepieces Contain Six M4 Counterbores for Mounting Them to Our Focusing Modules
Cerna Brochure PDF

Thorlabs' selection of objective holders provides a variety of mechanical interfaces for mounting microscope objectives and other optical elements along the optical path of a DIY Cerna system. Our current offering includes single-objective, dual-objective, and quintuple-objective nosepieces. We have a motorized, dual-objective nosepiece with a precision servo motor, as well as single-objective and dual-objective nosepieces that have slots for DIC objective prisms. In addition, we manufacture a nosepiece with internal SM2 (2.035"-40) threads and taps for a 60 mm cage system, which can be used to mount macro lenses and a wide variety of Thorlabs optomechanics.

Thorlabs also offers two motorized fine focusing modules (available below), which provide 1" of travel along the Z-axis and connect objective nosepieces and arms to the microscope body. The ZFM2020 and ZFM2030 facilitate flexibility in the mounting configuration. These modules can be driven using the MCM3001 3-Axis Controller. (sold separately)

Additional body attachments and extensions are available which allow the integration of Thorlabs' lens tube systems, cage construction systems, and other optomechanics with our Cerna microscopy platform. We also offer condenser arms that are designed to mount condensers at the 7.74" throat depth of DIY Cerna systems. For optics that do not require frequent adjustment, we also offer fixed mounting arms that mount lens tubes and cage systems directly along the optical path of the microscope.

Thorlabs Dovetail Referencea
Type Shape Outer Dimension Angle
95 mm Linear 95 mm 45°
D1N Circular Ø2.018" 60°
D2Nb Circular Ø1.50" 90°
D2NBb Circular Ø1.50" 90°
D3N Circular Ø45 mm 70°
D5N Circular Ø1.58" 90°
D6N Circular Ø1.90" 90°
D7N Circular Ø2.05" 90°
D1T Circular Ø1.50" 60°
D3T Circular Ø1.65" 90°
D1Y Circular Ø107 mm 60°
D2Y Circular Ø2.32" 50°
D3Y Circular Ø1.75" 90°
D4Y Circular Ø56 mm 60°
D5Y Circular Ø46 mm 60°
D6Y Circular Ø41.9 mm 45°
D1Z Circular Ø54 mm 60°
D2Z Circular Ø57 mm 60°
D3Z Circular Ø54 mm 45°
  • These dovetail designations are specific to Thorlabs products and are not used by other microscope manufacturers.
  • D2N and D2NB dovetails have the same outer diameter and angle, as defined by the drawings below. The D2N designation does not specify a height. The D2NB designation specifies a dovetail height of 0.40" (10.2 mm).
Mating Circular Dovetails
Click to Enlarge

This photo shows the male D1N dovetail on the trinoculars next to the female D1N dovetail on the epi-illumination arm.
Mating Linear Dovetails
Click to Enlarge

This photo shows the male 95 mm dovetail on the microscope body and the female 95 mm dovetail on the CSA1002 Fixed Arm.

Introduction to Microscope Dovetails

Dovetails are used for mechanical mating and optical port alignment of microscope components. Components are connected by inserting one dovetail into another, then tightening one or more locking setscrews on the female dovetail. Dovetails come in two shapes: linear and circular. Linear dovetails allow the mating components to slide before being locked down, providing flexible positioning options while limiting unneeded degrees of freedom. Circular dovetails align optical ports on different components, maintaining a single optical axis with minimal user intervention.

Thorlabs manufactures many components which use dovetails to mate with our own components or those of other manufacturers. To make it easier to identify dovetail compatibility, we have developed a set of dovetail designations. The naming convention of these designations is used only by Thorlabs and not other microscope manufacturers. The table to the right lists all the dovetails Thorlabs makes, along with their key dimensions.

In the case of Thorlabs’ Cerna® microscopes, different dovetail types are used on different sections of the microscope to ensure that only compatible components can be mated. For example, our WFA2002 Epi-Illuminator Module has a male D1N dovetail that mates with the female D1N dovetail on the microscope body's epi-illumination arm, while the CSS2001 XY Microscopy Stage has a female D1Y dovetail that mates with the male D1Y dovetail on the CSA1051 Mounting Arm.

To learn which dovetail type(s) are on a particular component, consult its mechanical drawing, available by clicking on the red Docs icon (Docs Icon) below. For adapters with a female dovetail, the drawing also indicates the size of the hex key needed for the locking setscrew(s). It is important to note that mechanical compatibility does not ensure optical compatibility. Information on optical compatibility is available from Thorlabs' web presentations.

For customers interested in machining their own dovetails, the table to the right gives the outer diameter and angle (as defined by the drawings below) of each Thorlabs dovetail designation. However, the dovetail's height must be determined by the user, and for circular dovetails, the user must also determine the inner diameter and bore diameter. These quantities can vary for dovetails of the same type. One can use the intended mating part to verify compatibility.

In order to reduce wear and simplify connections, dovetails are often machined with chamfers, recesses, and other mechanical features. Some examples of these variations are shown by the drawings below.

Male Microscope Dovetails
Click to Enlarge

Two examples of how circular male dovetails can be manufactured.
Female Microscope Dovetails
Click to Enlarge

Two examples of how circular female dovetails can be manufactured.

Standard Mechanical Interfaces on DIY Cerna® Components

The table below gives the dovetail, optical component threads, and cage system interfaces that are present on each DIY Cerna component. If a DIY Cerna component does not have one of the standard interfaces in the table, it is not listed here. Please note that mechanical compatibility does not ensure optical compatibility. Information on optical compatibility is available from Thorlabs' web presentations.

Item # Microscope Dovetails Optical Component Threadsa Cage Systemsb
95 mm D1N D2N D2NB D3N D5N D1T D3T D1Y D5Y C-Mountc
(1.00"-32)
SM1d
(1.035"-40)
SM30
(M30.5x0.5)
SM2e
(2.035"-40)
30 mmd 60 mme
2SCM1-DC Internal & External Internal Yes Yes
BSA2000f Female
CEA1350 Male Female Yes
CEA1400 Male Female Yes
CEA1500 Male Female Yes
CEA1600 Male Female Yes
CFB1500 Male
CSA1000 Female
CSA1001 Female Internal Yes
CSA1002 Female Internal Yes
CSA1003 Female Yes
CSA1051 Female Male
CSA1200f,g Yes
CSA1400f Female Yes
CSA1500f,h
CSA2000f Female Internal Yes
CSA2001 Female External
CSA2100f Internal Yes
CSA3000(/M) Male
CSA3010(/M) Male Yes Yes
Item # 95 mm D1N D2N D2NB D3N D5N D1T D3T D1Y D5Y C-Mount SM1 SM30 SM2 30 mm 60 mm
CSC1001 Male
CSC1002 Male
CSC1003 Male
CSC2001 Male
CSD1001 Male & Female Female
CSD1002 Male & Female External
CSE2000 Male & Female Yes
CSE2100 Male & Female Female Internal Yes Yes
CSE2200 Male & Female Female Internal Yes Yes
CSN100f,i Yes
CSN200i Male
CSN210i Male
CSN500j Male
CSN510k Male
CSN1201g,i
CSN1202g,j
CSS2001 Female
LAURE1 Male Female
LAURE2 Male Female
LCPN1 Male Internal Yes Yes
LCPN2 Male Internal Yes Yes
LCPN3 Male Female Internal Yes
Item # 95 mm D1N D2N D2NB D3N D5N D1T D3T D1Y D5Y C-Mount SM1 SM30 SM2 30 mm 60 mm
OPX2400(/M) Male & Female Internal Yes
SM1A58 Male Male Internal External Yes
SM2A56 Male External
TC1X Male
WFA0150 Female
WFA1000 Yes
WFA1010 Internal Yes
WFA1020 Internal Yes
WFA1051 Internal Yes
WFA1100 Yes
WFA2001 Male & Female Internal & External
WFA2002 Male & Female Internal Yes
WFA4000 Male Female
WFA4001 Male Female
WFA4002 Male Female
WFA4003 Male Female
WFA4100 Male External Internal
WFA4101 Male External Internal
WFA4102 Male External Internal
WFA4105 Male External
WFA4106 Male External
WFA4107 Male External
WFA4108 Male External
WFA4109 Male External
WFA4110 Male External
WFA4111 Male External
WFA4112 Male External
Item # 95 mm D1N D2N D2NB D3N D5N D1T D3T D1Y D5Y C-Mount SM1 SM30 SM2 30 mm 60 mm
XT95RC1(/M) Female
XT95RC2(/M) Female
XT95RC3(/M) Female
XT95RC4(/M) Female
XT95P12(/M) Female
ZFM1020 Female
ZFM1030 Female
ZFM2020 Female
ZFM2030 Female
  • Thorlabs' optical component thread adapters can be used to convert between C-Mount threads, SM1 threads, SM2 threads, and virtually every other optical thread standard.
  • Our cage system size adapters and drop-in adapter can be used to convert between 16 mm, 30 mm, and 60 mm cage systems.
  • C-Mount and CS-Mount standards feature the same 1.00"-32 threads, but C-Mounts have a 5 mm longer flange-to-sensor distance.
  • Our 30 mm cage plates can convert between SM1 lens tubes and 30 mm cage systems.
  • Our 60 mm cage plates can convert between SM2 lens tubes and 60 mm cage systems.
  • Attach to a ZFM focusing module to add a female 95 mm dovetail.
  • The CSA1200 mounting arm is compatible with the CSN1201 and CSN1202 nosepieces.
  • This blank arm is designed for custom DIY machining for non-standard components, threads, and bores..
  • This nosepiece directly accepts M32 x 0.75 objective threads.
  • This nosepiece directly accepts M25 x 0.75 objective threads.
  • This nosepiece directly accepts RMS (0.800"-36) objective threads.

Building a Cerna® Microscope

The Cerna microscopy platform's large working volume and system of dovetails make it straightforward to connect and position the components of the microscope. This flexibility enables simple and stable set up of a preconfigured microscope, and provides easy paths for later upgrades and modification. See below for a couple examples of the assembly of preconfigured and DIY Cerna microscopes.

Preconfigured Microscope Kit Design and Assembly


Walkthrough of Cerna® Microscope Kit 4
This Cerna microscope configuration is equipped with both epi- and trans-illumination modules. All Cerna preconfigured microscope kits enable individual components to be removed or substituted for complete customization.

Microscope Kit 4 Assembly
The D1N and D2N circular dovetails align the sample viewing and epi-illumination apparatus along the optical path. The microscope body's 95 mm linear dovetail is used to secure the objective and condenser mounts, as well as the transmitted light illumination module. The dovetail allows components to slide along the vertical rail prior to lockdown.

DIY Cerna Design and Assembly


Walkthrough of a DIY Microscope Configuration
This DIY microscope uses a CSA3000 Breadboard Top, a CSA2001 Dovetail Adapter, our CSA1001 and CSA1002 Fixed Arms, and other body attachments and extensions. These components provide interfaces to our lens tube and cage construction systems, allowing the rig to incorporate two independent trans-illumination modules, a home-built epi-illumination path, and a custom sample viewing optical path.

DIY Microscope Configuration Assembly
The simplicity of Thorlabs optomechanical interfaces allows a custom DIY microscope to be quickly assembled and reconfigured for custom imaging applications.

The Cerna Mind Map is a visual tool that contains the complete selection of DIY Cerna components and several closely related accessories. Created as a supplement to our website, we have designed it to be printed on a single 11" x 17" sheet.

Click here or on the image below to download a printable PDF. The components shown on this webpage are in Steps 5, 6, 9, and 12 of the mind map.

Cerna Mind Map


Posted Comments:
srubin  (posted 2018-08-28 09:24:17.71)
Can CSN500 and CSN510 be used in a standard opto mech setup (not Cerna). Does it have lens tube or cage interfaces?
YLohia  (posted 2018-08-28 11:09:12.0)
Hello, the CSN500 and CSN510 can indeed be used with standard Thorlabs opto-mech by implementing the CSA1400 mounting arm, which has 60mm cage #4-40 thru holes (for cage system use) as well as M6 counterbores for additional mounting options.
m.c.ashby  (posted 2018-03-22 13:14:53.533)
Do you have any information on the precision of the centering of the objectives when switching between positions on CSN1301?
YLohia  (posted 2018-03-30 04:04:56.0)
Hello, thank you for contacting Thorlabs. Unfortunately, we have yet to do more conclusive testing in order to spec the precision/repeatability of centering the CSN1301 when switching between the positions. We hope to have this information available in the future.

Click on the different parts of the microscope to explore their functions.

Explore the Cerna MicroscopeSample Viewing/RecordingSample MountingIllumination SourcesIllumination SourcesObjectives and MountingEpi-IlluminationEpi-IlluminationTrans-IlluminationMicroscope BodyMicroscope BodyMicroscope BodyMicroscope Body

Elements of a Microscope

This overview was developed to provide a general understanding of a Cerna® microscope. Click on the different portions of the microscope graphic to the right or use the links below to learn how a Cerna microscope visualizes a sample.



Terminology

Arm: Holds components in the optical path of the microscope.

Bayonet Mount: A form of mechanical attachment with tabs on the male end that fit into L-shaped slots on the female end.

Bellows: A tube with accordion-shaped rubber sides for a flexible, light-tight extension between the microscope body and the objective.

Breadboard: A flat structure with regularly spaced tapped holes for DIY construction.

Dovetail: A form of mechanical attachment for many microscopy components. A linear dovetail allows flexible positioning along one dimension before being locked down, while a circular dovetail secures the component in one position. See the Microscope Dovetails tab or here for details.

Epi-Illumination: Illumination on the same side of the sample as the viewing apparatus. Epi-fluorescence, reflected light, and confocal microscopy are some examples of imaging modalities that utilize epi-illumination.

Filter Cube: A cube that holds filters and other optical elements at the correct orientations for microscopy. For example, filter cubes are essential for fluorescence microscopy and reflected light microscopy.

Köhler Illumination: A method of illumination that utilizes various optical elements to defocus and flatten the intensity of light across the field of view in the sample plane. A condenser and light collimator are necessary for this technique.

Nosepiece: A type of arm used to hold the microscope objective in the optical path of the microscope.

Optical Path: The path light follows through the microscope.

Rail Height: The height of the support rail of the microscope body.

Throat Depth: The distance from the vertical portion of the optical path to the edge of the support rail of the microscope body. The size of the throat depth, along with the working height, determine the working space available for microscopy.

Trans-Illumination: Illumination on the opposite side of the sample as the viewing apparatus. Brightfield, differential interference contrast (DIC), Dodt gradient contrast, and darkfield microscopy are some examples of imaging modalities that utilize trans-illumination.

Working Height: The height of the support rail of the microscope body plus the height of the base. The size of the working height, along with the throat depth, determine the working space available for microscopy.



microscope bodyClick to Enlarge
Cerna Microscope Body
Body Height Comparison
Click to Enlarge

Body Details

Microscope Body

The microscope body provides the foundation of any Cerna microscope. The support rail utilizes 95 mm rails machined to a high angular tolerance to ensure an aligned optical path and perpendicularity with the optical table. The support rail height chosen (350 - 600 mm) determines the vertical range available for experiments and microscopy components. The 7.74" throat depth, or distance from the optical path to the support rail, provides a large working space for experiments. Components attach to the body by way of either a linear dovetail on the support rail, or a circular dovetail on the epi-illumination arm (on certain models). Please see the Microscope Dovetails tab or here for further details.



microscope bodyClick to Enlarge
Illumination with a Cerna microscope can come from above (yellow) or below (orange). Illumination sources (green) attach to either.

Illumination

Using the Cerna microscope body, a sample can be illuminated in two directions: from above (epi-illumination, see yellow components to the right) or from below (trans-illumination, see orange components to the right).

Epi-illumination illuminates on the same side of the sample as the viewing apparatus; therefore, the light from the illumination source (green) and the light from the sample plane share a portion of the optical path. It is used in fluorescence, confocal, and reflected light microscopy. Epi-illumination modules, which direct and condition light along the optical path, are attached to the epi-illumination arm of the microscope body via a circular D1N dovetail (see the Microscope Dovetails tab or here for details). Multiple epi-illumination modules are available, as well as breadboard tops, which have regularly spaced tapped holes for custom designs.

Trans-illumination illuminates from the opposite side of the sample as the viewing apparatus. Example imaging modalities include brightfield, differential interference contrast (DIC), Dodt gradient contrast, oblique, and darkfield microscopy. Trans-illumination modules, which condition light (on certain models) and direct it along the optical path, are attached to the support rail of the microscope body via a linear dovetail (see Microscope Dovetails tab or here). Please note that certain imaging modalities will require additional optics to alter the properties of the beam; these optics may be easily incorporated in the optical path via lens tubes and cage systems. In addition, Thorlabs offers condensers, which reshape input collimated light to help create optimal Köhler illumination. These attach to a mounting arm, which holds the condenser at the throat depth, or the distance from the optical path to the support rail. The arm attaches to a focusing module, used for aligning the condenser with respect to the sample and trans-illumination module.



microscope bodyClick to Enlarge
Light from the sample plane is collected through an objective (blue) and viewed using trinocs or other optical ports (pink).

Sample Viewing/Recording

Once illuminated, examining a sample with a microscope requires both focusing on the sample plane (see blue components to the right) and visualizing the resulting image (see pink components).

A microscope objective collects and magnifies light from the sample plane for imaging. On the Cerna microscope, the objective is threaded onto a nosepiece, which holds the objective at the throat depth, or the distance from the optical path to the support rail of the microscope body. This nosepiece is secured to a motorized focusing module, used for focusing the objective as well as for moving it out of the way for sample handling. To ensure a light-tight path from the objective, the microscope body comes with a bellows (not pictured).

Various modules are available for sample viewing and data collection. Trinoculars have three points of vision to view the sample directly as well as with a camera. Double camera ports redirect or split the optical path among two viewing channels. Camera tubes increase or decrease the image magnification. For data collection, Thorlabs offers both cameras and photomultiplier tubes (PMTs), the latter being necessary to detect fluorescence signals for confocal microscopy. Breadboard tops provide functionality for custom-designed data collection setups. Modules are attached to the microscope body via a circular dovetail (see the Microscope Dovetails tab or here for details).



microscope bodyClick to Enlarge
The rigid stand (purple) pictured is one of various sample mounting options available.

Sample/Experiment Mounting

Various sample and equipment mounting options are available to take advantage of the large working space of this microscope system. Large samples and ancillary equipment can be mounted via mounting platforms, which fit around the microscope body and utilize a breadboard design with regularly spaced tapped through holes. Small samples can be mounted on rigid stands (for example, see the purple component to the right), which have holders for different methods of sample preparation and data collection, such as slides, well plates, and petri dishes. For more traditional sample mounting, slides can also be mounted directly onto the microscope body via a manual XY stage. The rigid stands can translate by way of motorized stages (sold separately), while the mounting platforms contain built-in mechanics for motorized or manual translation. Rigid stands can also be mounted on top of the mounting platforms for independent and synchronized movement of multiple instruments, if you are interested in performing experiments simultaneously during microscopy.

Close



For sample viewing, Thorlabs offers trinoculars, double camera ports, and camera tubes. Light from the sample plane can be collected via cameras, photomultiplier tubes (PMTs), or custom setups using breadboard tops. Click here for additional information about viewing samples with a Cerna microscope.

Product Families & Web Presentations
Sample Viewing Breadboards
& Body Attachments
Cameras PMTs

Close



Microscope objectives are held in the optical path of the microscope via a nosepiece. Click here for additional information about viewing a sample with a Cerna microscope.

Close



Large and small experiment mounting options are available to take advantage of the large working space of this microscope. Click here for additional information about mounting a sample for microscopy.

Close



Thorlabs offers various light sources for epi- and trans-illumination. Please see the full web presentation of each to determine its functionality within the Cerna microscopy platform.

Close



Epi-illumination illuminates the sample on the same side as the viewing apparatus. Example imaging modalities include fluorescence, confocal, and reflected light microscopy. Click here for additional information on epi-illumination with Cerna.

Product Families & Web Presentations
Epi-Illumination Web Presentation Body Attachments Light Sources
Epi-Illumination Body Attachments Light Sources

Close



Trans-illumination illuminates from the opposite side of the sample as the viewing apparatus. Example imaging modalities include brightfield, differential interference contrast (DIC), Dodt gradient contrast, oblique, and darkfield microscopy. Click here for additional information on trans-illumination with Cerna.

Product Families & Web Presentations
Brightfield Web Presentation DIC Web Presentation Dodt Web Presentation Condensers Web Presentation Condenser Mounting Web Presentation Illumination Kits Web Presentation Other Light Sources
Brightfield DIC Dodt Condensers Condenser Mounting Illumination Kits Other Light Sources

Close



The microscope body provides the foundation of any Cerna microscope. The 7.74" throat depth provides a large working space for experiments. Click here for additional information about the Cerna microscope body.

Product Families & Web Presentations
Microscope Body Web Presentation Microscope Body Translator
Microscope Bodies Microscope Translator

Fixed Single-Objective Nosepieces

Item # CSN100 CSN1201
Number of Objectives One
Objective Threads M32 x 0.75
Slot for DIC Objective
Prisms
No Yes
Required Mounting Arm None CSA1200 Mounting Arm
Add a ZFM Focusing Module if You Buy a Nosepiece
Single Objective Holder
Click to Enlarge
CSN100 Nosepiece and M32M25S Adapter in a DIY Cerna® System
  • Hold One Objective in a DIY Cerna System
  • CSN100: M32 x 0.75 Internal Threads, 60 mm Cage System Compatibility, and Slim Profile
  • CSN1201: M32 x 0.75 Internal Threads and Slot for DIC
    Objective Prism
  • Attach to Motorized Focusing Module for 1" of Fine Z Travel

These nosepieces hold a single objective at the 7.74" throat depth of a DIY Cerna system. Both are directly compatible with M32 x 0.75-threaded objectives. We also offer microscope thread adapters to convert M32 x 0.75 threads to other industry-standard objective threads.

The CSN100 Single-Objective Nosepiece has a thin 0.38" profile that conserves distance along the optical path, maximizing the space available for other microscope modules. In contrast, the CSN1201 Single-Objective Nosepiece is 2.17" long, but has a slot that accepts a DIC objective prism.

The CSN100 nosepiece has four 4-40 through taps for 60 mm cage system compatibility. It can be directly attached to a motorized focusing module (available below) via six M4 counterbores. Recessed magnets on top of the nosepiece mate to the bellows included with Cerna microscope bodies with epi-illumination arms, creating a light-tight optical path between the nosepiece and the epi-illumination arm.

In comparison, the CSN1201 nosepiece requires the CSA1200 Mounting Arm (sold separately) to attach to a motorized focusing module. Recessed magnets on the CSA1200 arm mate to the bellows included with Cerna microscope bodies with epi-illumination arms, creating a light-tight optical path between the nosepiece and the epi-illumination arm.

 For machining an arm utilizing non-standard nosepiece threading, consider the CSA1500 blank arm, which can also be attached to a motorized focusing module.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CSN100 Support Documentation
CSN100Nosepiece for 1 Objective, M32 x 0.75 Threads, 60 mm Cage Compatible
$109.27
Today
CSN1201 Support Documentation
CSN1201Nosepiece for 1 Objective, M32 x 0.75 Threads, DIC Compatible
$735.84
Today
CSA1200 Support Documentation
CSA1200Mounting Arm for CSN1201 and CSN1202 Nosepieces
$281.14
Today

Sliding Dual-Objective Nosepieces

Item # CSN200 CSN210
Number of Objectives Two
Objective Threads M32 x 0.75a
Objective Changing Mechanism Manual Motorized
Repeatabilityb ±10 µm ±5 µm
Position 1 to 2c -200 µm to 0 ±100 µm
Required Mounting Arm CSA1400 Mounting Arm
  • We offer microscope thread adapters with external M32 x 0.75 threads to convert to other industry-standard objective threads.
  • Maximum deviation of Position 1 after moving from Position 1 to Position 2 then back to Position 1.
  • Maximum deviation from the center of FOV when switching from one position to another.
  • Hold Two Objectives in a DIY Cerna System
  • CSN200: Manual, M32 x 0.75 Internal Threads
  • CSN210: Motorized, M32 x 0.75 Internal Threads
  • Attach to Motorized Focusing Module for 1" of Fine Z Travel

These nosepieces hold two objectives in DIY Cerna systems. They are ideal for constructing systems that use a low-magnification objective to find a region of interest and a high-magnification objective to image.

Each nosepiece includes a D1T dovetail to attach to the CSA1400 Mounting Arm (sold separately). Using the arm, the nosepiece can be mounted to a motorized focusing module. Recessed magnets on the CSA1400 arm mate to the bellows included with Cerna microscope bodies with epi-illumination arms to create a light-tight optical path between the nosepiece and the epi-illumination arm. To switch and secure objectives into position, the CSN200 nosepiece uses a manual slide with detents, whereas the CSN210 nosepiece uses a precision servo motor. Please see the table to the right for more details on the performance specifications.

The motorized objective changer is controlled remotely on a PC (not included) using the included 6 ft USB cable and software; a link to download the software is also provided below. The motorized nosepiece features collision detection and will stop immediately when interference is detected. It must be rehomed before it can resume normal operation after a collision. The positions should only be changed using the motor. If it is moved manually, the nosepiece must be rehomed before it can move to either position again.

The CSN210 nosepiece can be mounted in two orientations, parallel to the epi-illumination path (shown left with the CSN200), or perpendicular to the epi-illumination path (shown right with the CSN210). Each nosepiece attaches to the motorized focusing module via the CSA1400 mounting arm, which is sold separately. Note to mount the CSN210 parallel to the epi-illumination path the ZFM2030 module needs to be used. Objectives are not included with the nosepieces. Note also that the bellows shown here is longer than the standard bellows included with a microscope body.

Motorized Nosepiece
Software

Version 4.0 (August 16, 2018)

This software package contains the installation files for the GUI interface, driver, SDK, and support documentation. The software is compatible with Windows® 7 or 10 (64-bit) systems.

Software Download
Add a ZFM Focusing Module if You Buy a Nosepiece
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CSN200 Support Documentation
CSN200Nosepiece for 2 Objectives, M32 x 0.75 Threads
$1,976.46
Today
CSN210 Support Documentation
CSN210Motorized Nosepiece for 2 Objectives, M32 x 0.75 Threads
$3,753.46
Today
CSA1400 Support Documentation
CSA1400Mounting Arm for CSN200 and CSN500 Series Nosepieces
$312.97
Today

Retracting Dual-Objective Nosepiece

Item # CSN1202
Number of Objectives Two
Objective Threads M25 x 0.75a
Objective Changing Mechanism Manual
Per-Objective Parfocal Adjusters Yes
Slots for DIC Objective Prisms
Yes
Required Mounting Arm CSA1200 Mounting Arm
  • Our RMSA1 thread adapter converts M25 x 0.75 threads to RMS threads. Please take care to not overthread objectives when using this and other ring-type thread adapters.
Add a ZFM Focusing Module if You Buy a Nosepiece
  • Hold Two Objectives in a DIY Cerna System
  • CSN1202: Manual, M25 x 0.75 Internal Threads and Slots for DIC Objective Prisms
  • Attach to Motorized Focusing Module for 1" of Fine Z Travel

This nosepiece holds two objectives in DIY Cerna systems. It is ideal for constructing systems that use a low-magnification objective to find a region of interest and a high-magnification objective to image. This objective holder offers parfocal adjustment for the objectives and each position has a slot that accepts a DIC objective prism

The nosepiece requires the CSA1200 Mounting Arm (sold separately) to attach to a motorized focusing module. The CSN1202 objective holder slides into the CSA1200 arm and can be secured with a side-located locking screw with a 2 mm hex. Recessed magnets on the CSA1200 arm mate to the bellows included with Cerna microscope bodies with epi-illumination arms to create a light-tight optical path between the nosepiece and the epi-illumination arm.

The CSN1202 nosepiece switches between objectives using a manual mechanism that retracts the objective that is not in use to avoid collisions with your sample, as demonstrated in the video below. Additionally, each objective position has an independent adjuster knob that can be used to fine tune the objectives' parfocality. To help ensure the objectives' relative centration, the front objective position has three 2 mm hex adjustment screws, arranged 120° apart, which adjust that objective's transverse position.

CSN1202 Nosepiece
Click to Enlarge
The CSN1202 nosepiece retracts the objective that is not in use. It attaches to the motorized focusing module via the CSA1200 mounting arm, which is sold separately. For clarity, the nosepiece is shown here with objectives and objective prisms installed; these items are not included with the nosepiece.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CSN1202 Support Documentation
CSN1202Nosepiece for 2 Objectives, M25 x 0.75 Threads
$1,982.44
Today
CSA1200 Support Documentation
CSA1200Mounting Arm for CSN1201 and CSN1202 Nosepieces
$281.14
Today

Rotating Quintuple-Objective Nosepieces

Item # CSN500 CSN510
Number of Objectives Five
Objective Threads M25 x 0.75 RMS
Parcentricity, Single Positiona ±10 µm
Parcentricity, All Positionsb ±40 µm
Parfocality, Single Positionc ±2 µm
Parfocality, All Positionsd ±10 µm
Required Mounting Arm CSA1400 Mounting Arm
  • Maximum deviation for a single position after a full rotation of the nosepiece.
    Measured using 40X objective.
  • Maximum deviation from center of FOV when moving from one position to the next. Measured using 4X and 40X objectives. System alignment optimized for 4X and 40X at starting position.
  • Maximum Z axis deviation for a single position after multiple rotations. Measured using 40X objective.
  • Maximum Z axis deviation of all positions compared to position 1. Measured using 40X objective.
Test Target Mount
Click to Enlarge

The CSN510 Nosepiece mounted with the CSA1400 arm in a DIY Cerna System.
  • Hold Five Objectives in a DIY Cerna System with a 7.74" Throat Depth
  • CSN500: M25 x 0.75 Internal Threads
  • CSN510: RMS Internal Threads
  • Attach to Motorized Focusing Module for 1" of Fine Z Travel

These nosepieces hold five objectives in DIY Cerna systems. They are ideal for constructing systems that require multiple low- and high-magnification objectives. The objective turret's housing and threads are made from lead-free bronze, with an aluminum back plate. The precision detent mechanism is designed with a hardened 440C stainless steel ball on a cantilever spring that engages the grooves machined into the bronze housing. The detent mechanism can position the objective lenses with a bi-directional repeatability of ±40 µm. The table to the right gives performance specifications for the turrets when integrated into well aligned systems, where all components are aligned horizontally and vertically to the optical axis. Every nosepiece is tested and shipped with a data sheet.

The CSN500 nosepiece is compatible with M25 x 0.75-threaded objectives, while the CSN510 accepts RMS (0.800"-36)-threaded objectives. We do not recommend using thread adapters with these holders because centricity misalignments may occur.

Each nosepiece has a male D1T dovetail and can be attached to a motorized focusing module via the CSA1400 Mounting Arm (sold separately). Recessed magnets on the CSA1400 arm mate to the bellows included with Cerna microscope bodies with epi-illumination arms, creating a light-tight optical path between the nosepiece and the epi-illumination arm. On a DIY Cerna System, the nosepiece should be mounted with the dovetail facing away, so the nosepiece tilts upward, as shown to the lower right.

Test Target Mount
Click to Enlarge
The objectives can be changed by manually rotating the front face of the nosepiece.
Test Target Mount
Click to Enlarge
The CSN510 is shown with objectives of increasing magnification.
Quintuple Nosepiece
Click to Enlarge

The back of each nosepiece has a D1T dovetail. This dovetail is used to attach to the CSA1400 Mounting Arm.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CSN500 Support Documentation
CSN500Nosepiece for 5 Objectives, M25 x 0.75 Threads
$1,039.68
Today
CSN510 Support Documentation
CSN510Nosepiece for 5 Objectives, RMS Threads
$1,039.68
Today
CSA1400 Support Documentation
CSA1400Mounting Arm for CSN200 and CSN500 Series Nosepieces
$312.97
Today

Piezo Objective Scanner and Paired Controller

Exploded View
Click to Enlarge

Exploded View
Assembled View
Click to Enlarge

Assembled View

The scanner is installed by threading a brass adapter into the microscope's objective holder with the included spanner wrench and tightening a flexure clamp around the adapter with the included 5/64" (2 mm) hex key. The objective is attached to the scanner using a separate brass adapter and flexure clamp.

  • Enables Objective Positioning and Z-Stack Acquisition with Resolution Down
    to 1 nm
  • Travel Range: 600 µm ± 10% in Open Loop; 450 µm in Closed Loop
  • Support for Heavy Objectives up to 500 g
  • Maximum Clear Aperture of Ø29.0 mm Supports Large-Field-of-View Objectives
  • Requires Microscope and Objective Adapters (Sold Separately)

The PFM450E Piezo Objective Positioner is designed for fine focus adjustment and high-speed Z-stack acquisition. Built-in capacitive feedback sensors allow the scanner to provide 1 nm resolution in open-loop operation and 3 nm resolution in closed-loop operation, enabling active compensation for short- and long-term drifts.

In order to permit easy switching between objectives, the piezo stage is attached to the microscope and objective by independent adapters. This design choice allows the objective to be removed without disconnecting the rest of the assembly. Adapters are available for M32 x 0.75, M27 x 0.75, SM1 (1.035"-40), M26 x 0.706, M25 x 0.75, and RMS (0.800"-36) threads. At least one microscope adapter and one objective adapter are required to install the scanner.

Each scanner is shipped with a piezo controller that has been factory calibrated to the specific scanner. Objective positioning is supported through the included standalone Kinesis® and APT™ GUIs, our ThorImage®LS image acquisition software, an externally supplied control voltage, or the MZF001 Joystick Console (sold separately). The controller offers USB and RS-232 interfaces for computer control; a BNC input for sine, sawtooth, and square wave drive signals; a BNC output that gives either positioning feedback from the scanner's built-in capacitive sensors or a signal proportional to the piezo drive voltage; and a connector for the MZF001 joystick. In addition, a DB15 connector provides signals that can be used for synchronization with external equipment.

More details on this scanner are available at its full web presentation. Please note that if installing it on the CSN200 or CSN210 Sliding Dual-Objective Nosepieces, the piezo stage and two adapters will add 11.5 mm of distance to the optical path, which will affect the objectives' parfocality. Also note that this scanner is not compatible with the CSN1202 Dual-Objective Nosepiece, as the flange on the PFMA05 Microscope Adapter will mechanically clash with the neighboring objective.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PFM450E Support Documentation
PFM450EPiezo Objective Scanner and Paired Controller
$9,966.31
Today
PFMA01 Support Documentation
PFMA01Microscope Adapter for Piezo Objective Scanner, External M32 x 0.75 Threads
$88.47
Today
PFMA01E Support Documentation
PFMA01EMicroscope Adapter for Piezo Objective Scanner, External M32 x 0.75 Threads, Extended Flange
$88.47
Today
PFMA03 Support Documentation
PFMA03Microscope Adapter for Piezo Objective Scanner, External M27 x 0.75 Threads
$88.47
Today
PFMA09 Support Documentation
PFMA09Microscope Adapter for Piezo Objective Scanner, External SM1 Threads
$88.47
Today
PFMA11 Support Documentation
PFMA11Customer Inspired! Microscope Adapter for Piezo Objective Scanner, External M26 x 0.706 Threads
$97.39
Today
PFMA05 Support Documentation
PFMA05Microscope Adapter for Piezo Objective Scanner, External M25 x 0.75 Threads
$88.47
Today
PFMA07 Support Documentation
PFMA07Microscope Adapter for Piezo Objective Scanner, External RMS Threads
$88.47
Today
PFMA02 Support Documentation
PFMA02Objective Adapter for Piezo Objective Scanner, Internal M32 x 0.75 Threads
$69.79
Today
PFMA04 Support Documentation
PFMA04Objective Adapter for Piezo Objective Scanner, Internal M27 x 0.75 Threads
$68.45
Today
PFMA10 Support Documentation
PFMA10Objective Adapter for Piezo Objective Scanner, Internal SM1 Threads
$68.45
Today
PFMA12 Support Documentation
PFMA12Customer Inspired! Objective Adapter for Piezo Objective Scanner, Internal M26 x 0.706 Threads
$75.21
Today
PFMA06 Support Documentation
PFMA06Objective Adapter for Piezo Objective Scanner, Internal M25 x 0.75 Threads
$68.45
Today
PFMA08 Support Documentation
PFMA08Objective Adapter for Piezo Objective Scanner, Internal RMS Threads
$68.45
Today

SM2-Threaded Holder for Macro Lenses

Body Height Comparison
Click to Enlarge

In this photo, our SM2NFM Nikon F-Mount Adapter is holding a macro lens for functional imaging.
SM2 Cerna Attachment
Click to Enlarge

When the CSA2100 is attached to the microscope body, the internal SM2 threads and taps for 60 mm cage systems will be centered around the microscope's 7.74" throat depth.
Add a ZFM Focusing Module if You Buy a Nosepiece
  • Nosepiece and Adapter Together Mount Nikon F-Mount Macro Lenses
  • CSA2100: Internal SM2 (2.035"-40) Threads and 4-40 Taps for 60 mm Cage System
  • SM2NFM: Female Nikon F-Mount and External SM2 Threads
  • Attach to Motorized Focusing Module for 1" of Fine Z Travel

The CSA2100 Arm is designed to be mounted in a DIY Cerna system via the motorized focusing modules sold below. When combined with the SM2NFM Nikon F-Mount Adapter, it allows a Nikon F-Mount macro lens, or any camera lens with an F-Mount, to be mounted at the Cerna system's 7.74" throat depth.

This arm offers a slim 0.38" profile, internal SM2 (2.035"-40) threads, and four 4-40 through taps for Thorlabs' 60 mm cage system. The SM2NFM adapter has a female F-Mount that accepts a lens and external SM2 threads that mate to the nosepiece. More details on this adapter and a version with a male F-Mount are available at its full web presentation.

The use of our standard SM2 threads also makes this arm compatible with any custom optical system mounted using our Ø2" lens tubes, as well as the CSA2001 D3N Dovetail Adapter.

To connect multiple macro lenses in tandem, as shown in the image to the right, consider using the M52A1 coupler to secure two M52 x 0.75-threaded lenses together.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CSA2100 Support Documentation
CSA2100Arm, Internal SM2 Threads, 60 mm Cage Compatible
$153.83
Today
SM2NFM Support Documentation
SM2NFMAdapter with External SM2 Threads and Nikon Female F-Mount Ring
$98.75
Today

Motorized Focusing Modules with 1" Travel

Motorized Translation Stage Specificationsa
Travel Range 1" (25.4 mm)
Bidirectional Repeatability 1 µm
Backlash 1 µm
Minimum Achievable
Incremental Movement
100 nm
Minimum Achievable
Repeatable Movement
200 nm
Velocity (Max) 7 mm/s
Acceleration (Max) 11 mm/s2
Cable Length 6' (1.8 m)
Pin Diagram Click to View
Load Capacity
Stage Mounted to
Vertical Railb
Recommended: ≤10 lbs (4.5 kg)
Maximum: 10 lbs (4.5 kg)
Stage Mounted to
Horizontal Rail
Recommended: ≤33.5 lbs (15.2 kg)
Maximum: 42 lbs (19.1 kg)
Stepper Motor Specifications
Thread Screw Pitch 0.3 mm
Step Angle 1.8°
Limit Switches Hall Effect Sensors
Phase Current 0.49 A
Phase Resistance 5.1 Ω
Phase Inductance 1.5 mH
Insulation Resistance 20 MΩ
  • The ZFM2020 and ZFM2030 modules use the same motorized translation stage (Operated by MCM3001, Sold Separately).
  • This is the orientation shown in the pictures below.
  • Provides Motorized Focusing Adjustment over 1" Travel Range
  • 95 mm Dovetail Clamp on Back Connects to Microscope Body
  • Includes Six M4 Cap Screws for Attaching Objective Nosepiece or Mounting Arm
  • Aligns Optical Port of Nosepiece at 7.74" Throat Depth of DIY Cerna System
  • Operated by MCM3001 3-Axis Controller (Sold Separately)

Our Motorized Focusing Modules provide 1" of fine, variable-speed travel along the Z axis for optics in a DIY Cerna system. Each module consists of a 95 mm dovetail clamp that connects to the microscope body, a motorized translation stage, and a mounting bracket with six M4 tapped holes. As shown in the image below, these six M4 taps are spaced to directly mate with the M4 counterbores on our objective nosepieces or mounting arms. A permanently attached 6' (1.8 m) cable connects the module to our MCM3001 3-Axis Controller (sold separately below).

We offer two versions of these stepper motor modules in order to allow the user to mount the nosepiece in whatever manner makes the most efficient use of space. As shown in the drawing below, a nosepiece or arm that is mounted to the ZFM2020 Motorized Module will have one surface in the same plane as the edge of the module. Since this module can be secured to the microscope body in either of two orientations, both of which are shown in the image below, the nosepiece can be positioned at the top or the bottom. In comparison, a nosepiece or arm that is mounted to the ZFM2030 Motorized Module will have one surface in the plane that bisects the module, which is 1.5" away from the module's edge.

If purchasing a motorized focusing module for the CSN200 or CSN210 Sliding Dual-Objective Nosepieces (described above), it is strongly recommended to choose the ZFM2030 module. The CSA1400 Mounting Arm, which is used to attach this nosepiece to the motorized focusing module, will mechanically clash with the ZFM2020 module in most mounting configurations.

When any of the nosepieces available above is used with one of these modules, its optical port will be aligned at the 7.74" throat depth of the DIY Cerna system. The ZFM2020 and ZFM2030 modules use the same motorized translation stage; its specifications are given in the table to the right.

SM2 Attachment
Click to Enlarge

Our motorized focusing modules attach to objective nosepieces using six M4 cap screws.
ZFM2020 in Two Orientations
Click to Enlarge

The ZFM2020 module has two possible orientations, creating space along the optical path for an objective attached to a nosepiece.

When using the ZFM2020 module, the surface of the nosepiece or arm will be flush with the bottom (or top) of the module.

When using the ZFM2030 module, the surface of the nosepiece or arm will be at the middle of the module.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
ZFM2020 Support Documentation
ZFM2020Motorized Module with 1" Travel for Edge-Mounted Arms
$2,010.41
Today
ZFM2030 Support Documentation
ZFM2030Motorized Module with 1" Travel for Middle-Mounted Arms
$2,010.41
Today

Motion Controller for Cerna Components with 1" Travel Range

Motorized Rigid Stand
Click to Enlarge

MCM3001 Being Used to Control Both Axes of the PLS-XY and a ZFM2020 Focusing Module

Controller Specifications
Compatible Motor Specifications
  • Designed for Cerna Components with 1" Motorized Travel
  • Knobs Provide Hand-Operated Control for up to Three Axes
  • Each Axis can be Individually Disabled to Prevent
    Unintended Movements or to Retain a Position
  • Adjust Translation Speed via Top-Located Knob

The MCM3001 3-Axis Controller consists of a hand-operated knob box and a separate controller, as shown in the photo to the right. Each side face of the knob box includes a rotating knob and a push-button switch that are dedicated to a single axis. The push-button switch enables and disables the axis, and is lit in green when the axis is enabled. Disabling the axis lets the user preserve a position or prevent accidental movements. A smaller knob on the top face adjusts the amount of translation per rotation of the knob (see the Controller Specifications table for details).

Since each MCM3001 controller has three channels, you only need to purchase enough channels for each of the modules you intend to drive. For example, a Cerna microscope equipped with a ZFM2020 Motorized Focusing Module (which has one axis) and a PLS-XY Translation Stage (two axes) would only require one MCM3001 controller.

The MCM3001 is compatible with motorized Cerna components that have a travel range of 1", such as our Motorized Focusing Modules and Translation Stages for Rigid Stands; see the Compatible Motor Specifications table for use with alternate motorized products. For components with a 2" travel range, such as our Translating Platforms, the MCM3002 controller should be used instead. If you would like a controller configured to drive more than one type of stage, please contact Tech Support.

SDK and LabVIEW examples are also available by contacting Tech Support.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
MCM3001 Support Documentation
MCM3001Three-Channel Controller and Knob Box for 1" Cerna Travel Stages
$3,368.64
Today
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites:East Coast US | West Coast US | Asia | China | Japan
Copyright 1999-2019 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px:Save this Image
