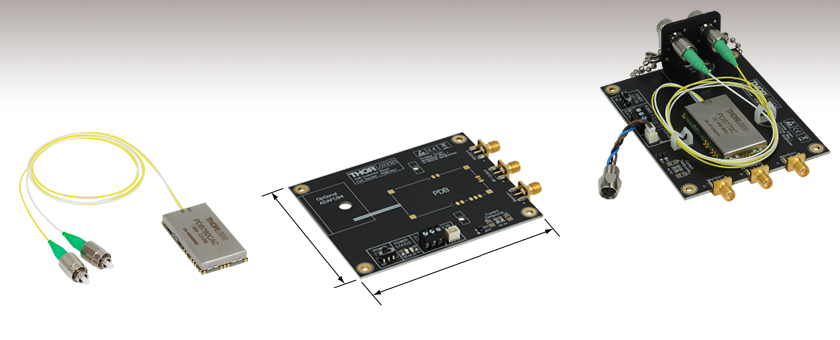

Compact Balanced Amplified Photodetectors


  • 400 MHz or 2.5 GHz Balanced Receivers with Compact Footprints
  • Noise Cancellation by Subtraction of 2 Input Signals
  • >20 dB Common Mode Rejection Ratio
  • Volume Pricing Available for OEMs
  • Customization Options Available

PDB780CAC

2.5 GHz Balanced Amplified Detector with FC/APC Connectors

100.0 mm
(3.93")

80.0 mm
(3.15")

PDBEVAL1

Evaluation Board for the PDB77xC and PDB78xCAC Detectors

Application Idea

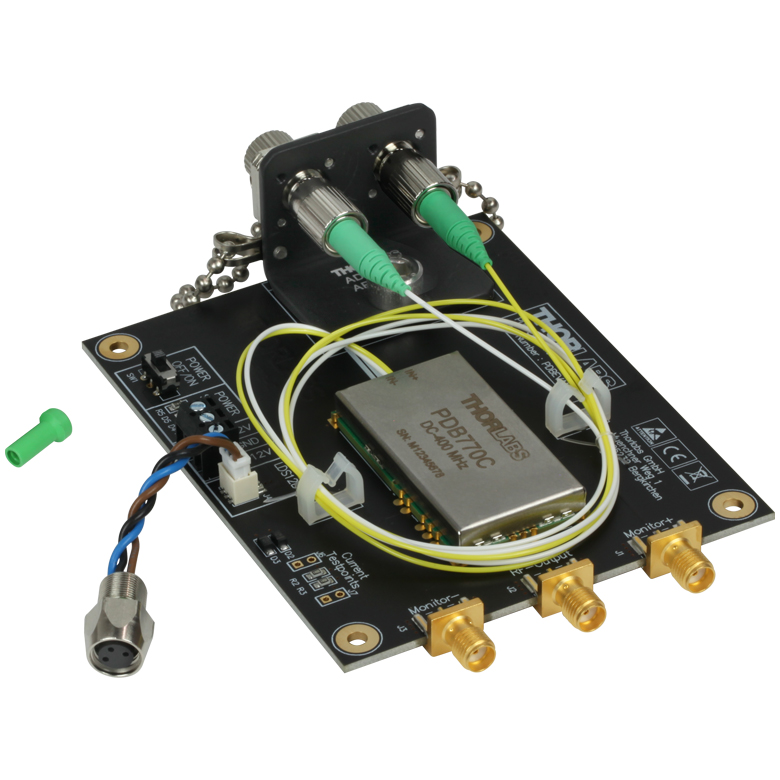

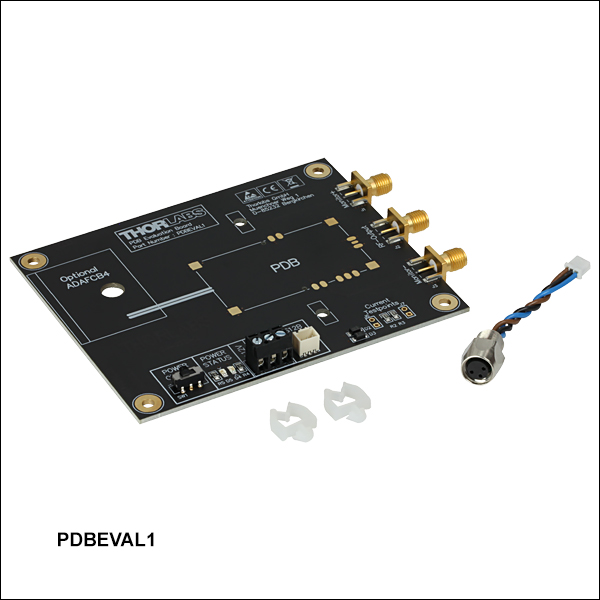

The PDB770C 400 MHz Balanced Detector soldered to the PDBEVAL1 Evaluation Board. An ADAFCB4 Fiber Bracket (not included) is used to hold the detector's FC/APC connectors.

Related Items


Please Wait

Applications

  • OEM Balanced, Amplified Detection
  • LIDAR Systems
  • OCT Systems
  • Optical Frequency Domain Reflectometry

Features

  • InGaAs Balanced Photodetectors with 400 MHz or 2.5 GHz Bandwidth
  • Wavelength Range:
    • PDB771C and PDB781CAC: HI1060 Fiber, 980 - 1625 nm
    • PDB770C and PDB780CAC: SMF-28 Ultra, 1260 - 1625 nm
  • Surface Mount Component (Solders Directly to PCB)
  • Small Footprint: 45.0 mm x 25.0 mm x 7.0 mm
  • Evaluation Board with SMA Outputs Available
  • FC/APC-Terminated Versions Available from Stock
  • Bandwidth, Gain, and Connector Type Customization Options Available; Contact Tech Support for Details

Thorlabs' Compact Balanced Amplified Photodetectors are high-speed InGaAs detectors with a small footprint specifically designed for OEM applications. With a common mode rejection ratio (CMRR) of >20 dB, these detectors are ideal for techniques requiring high sensitivity, such as LIDAR, OCT, and optical frequency domain reflectometry. Detectors operate over the 980 nm to 1625 nm or 1260 nm to 1625 nm wavelength ranges and are available with bandwidths of 400 MHz or 2.5 GHz. Detailed performance specifications can be found by clicking on the blue info icons () in the tables below.

Each detector consists of two well-matched photodiodes and an ultra-low-noise, ultra-low-distortion, high-speed transimpedance amplifier. To act as a balanced receiver, the compact detector subtracts the two optical input signals from each other, which results in the cancellation of common mode noise. This allows small changes in the signal path to be extracted from the interfering noise floor. Each unit also includes two monitor outputs for measuring the individual optical input power levels, as well as low-frequency modulated signals up to 150 kHz. Please see the Operation tab for more details.

Featuring an HI1060 fiber, the PDB771C and PDB781CAC detectors operate over the 980 nm to 1625 nm wavelength range and are optimized for use at 1060 nm. The PDB770C and PDB780CAC compact balanced detectors include an SMF-28 Ultra fiber and are suitable for use in the 1260 nm to 1625 nm wavelength range, with optimized performance at 1310 nm. Each detector module has two fiber leads with Ø900 µm buffer jackets, where one photodiode has a yellow buffer and the second has white for easy identification. The two fibers are 50 cm long and matched in length to <1 mm (with connectors), which ensures the equal optical path lengths needed for common mode noise suppression. Detectors with narrow key FC/APC connectors are available from stock; units with other connector types are available by contacting Tech Support.

Mounting and External Connection
We also offer an evaluation board for mounting and accessing the output signals from these balanced amplified detectors. This board features a pre-defined footprint for soldering the detector in place, SMA connectors for signal output, and connections for a power supply. Included with each PDBEVAL1 board is an RKMF3 connector cable for connecting the Thorlabs LDS12B ±12 VDC Power Supply (not included). Alternatively, each detector's surface mount package can be soldered to a custom PCB; please see the Pin Diagrams tab for more information about the external pin connections. Please refer to the detector's spec sheet for complete instructions on connecting and operating each device.

Please note that the components inside these modules are ESD sensitive. Take all appropriate precautions to discharge personnel and equipment before making any electrical connections to the unit. All soldering must be done by hand; a reflow oven will damage the device.

Packaged Balanced Amplified Photodetectors
Thorlabs also offers balanced amplified photodetectors with fast monitor outputs in shielded aluminum enclosures for out-of-the-box detection solutions. These detectors are available with bandwidths up to 2.5 GHz and have a >20 dB CMRR.

Evaluation Board Connections
Click to Enlarge

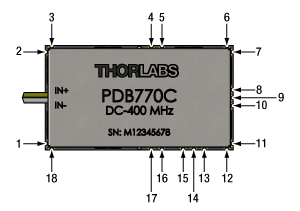

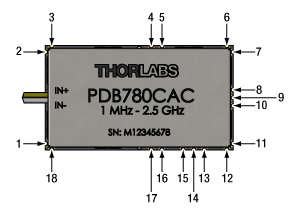

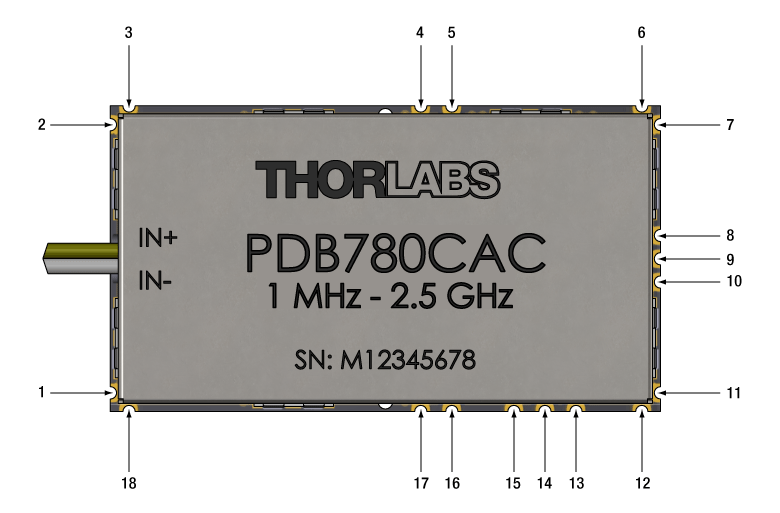

External pin Connections for the PDB780CAC Balanced Detector. The pin connections are the same for all PDB781CAC detectors.

Evaluation Board Connections
Click to Enlarge

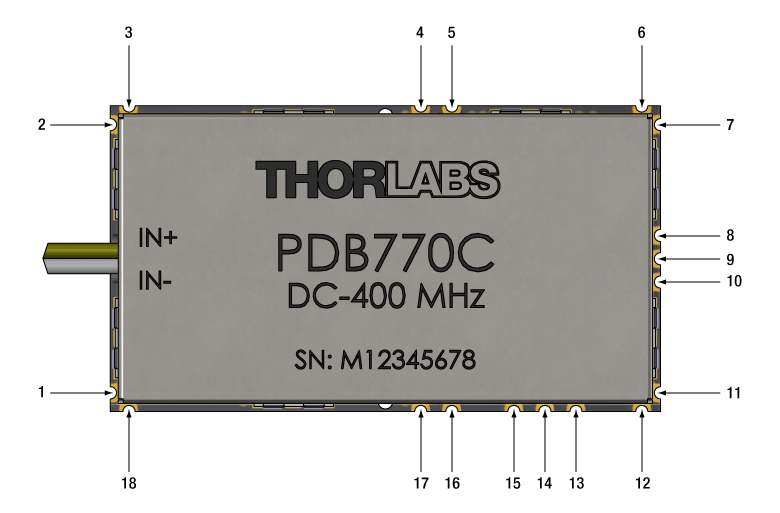

External pin Connections for the PDB770C Balanced Detector. The pin connections are the same for the PDB771C detectors.

Pin Description Pin Description
1 Ground 10 Ground
2 Ground 11 Ground
3 Ground 12 Ground
4 Ground 13 Power Supply (-12 V)
5 Output (Monitor +) 14 Power Supply (+12 V)
6 Ground 15 Ground
7 Ground 16 Output (Monitor -)
8 Ground 17 Ground
9 RF Output 18 Ground
Pin Description Pin Description
1 Ground 10 Ground
2 Ground 11 Ground
3 Ground 12 Ground
4 Ground 13 Power Supply (-9 V to -12 V)
5 Output (Monitor +) 14 Power Supply (+9 V to +12 V)
6 Ground 15 Ground
7 Ground 16 Output (Monitor -)
8 Ground 17 Ground
9 RF Output 18 Ground

Operation

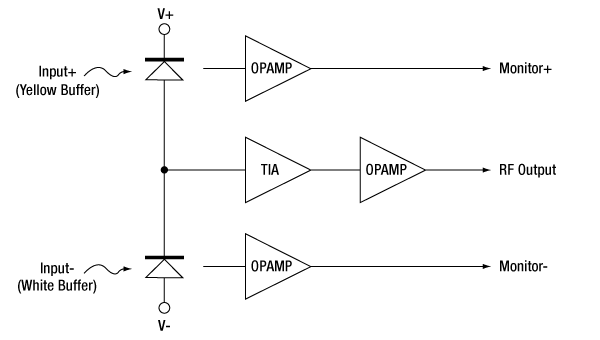

Thorlabs' Balanced Amplified Photodetectors consists of two well-matched photodiodes and an ultra-low-noise, high-speed transimpedance amplifier (TIA) that generates an output voltage (RF OUTPUT) proportional to the difference between the photocurrents in the two photodiodes (i.e., the two optical input signals). Additionally, each unit has two 150 kHz monitor outputs (MONITOR+ and MONITOR-) to observe the optical input power levels at each photodiode separately. These outputs are low-frequency outputs and cannot be used to measure an RF modulation on the signal.

Balanced receiver

PDB770C Dimensions Bottom
Click to Enlarge

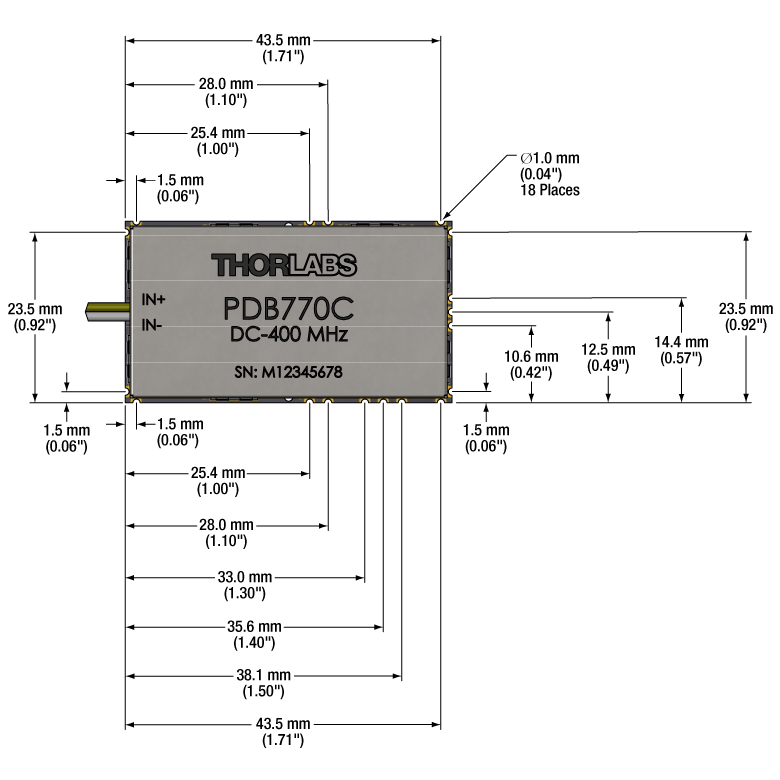

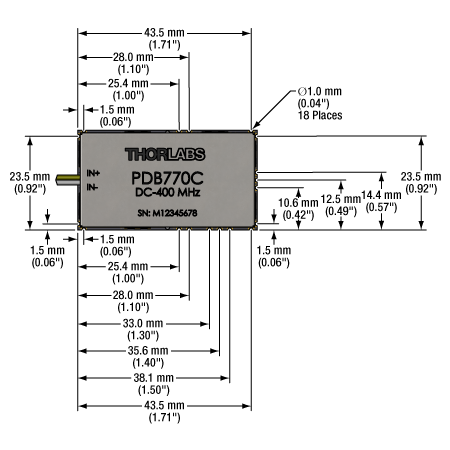

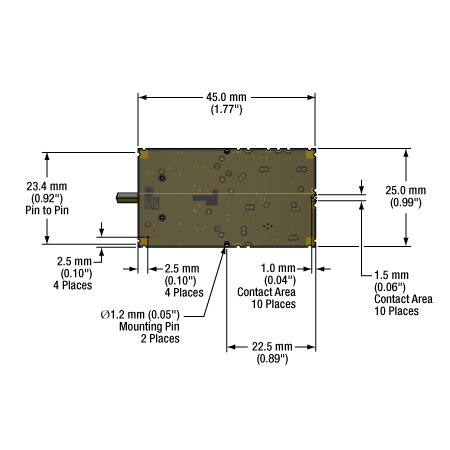

Dimensions for the bottom view of the PDB770C Balanced Amplified Detector. The dimensions are the same for all PDB77xC and PDB78xCAC detectors.
PDB770C Dimensions Top
Click to Enlarge

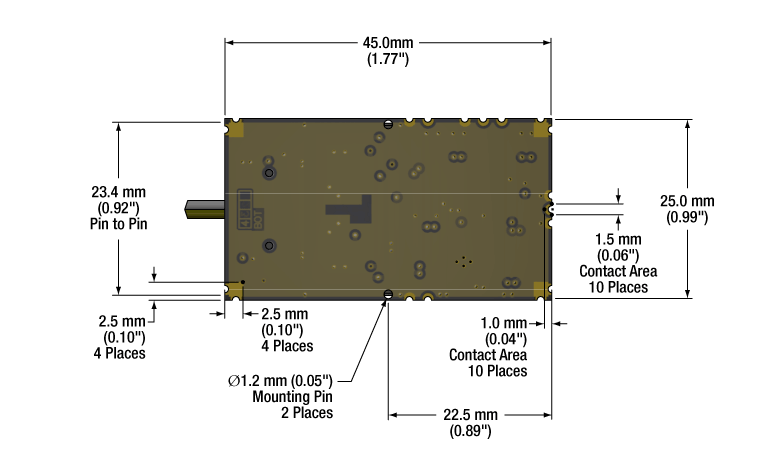

Dimensions for the top view of the PDB770C Balanced Amplified Detector. The dimensions are the same for all PDB77xC and PDB78xCAC detectors.

Posted Comments:
user  (posted 2021-01-18 09:11:18.787)
Is the PDB780CAC (2.5 [GHz]) available in packaged form, similar to the PDB480CAC (1.6 [GHz])? It is for an application at 1550 [nm].
MKiess  (posted 2021-01-19 08:16:02.0)
Thank you for contacting Thorlabs. Unfortunately, this detector, built into such a housing is not available as a standard article. We might be able to manufacture a custom product according to your wishes or we can find a suitable alternative together. If you wish to do so, please contact our technical support at the e-mail address, europe@thorlabs.com.
user  (posted 2020-08-29 00:05:36.357)
Hi, I want to know the damage threshold of PDB770C photo-detector under a pulsed 300fs laser? What is the rough max power or single pulse energy I can apply to this detector? Thanks a lot!
dpossin  (posted 2020-09-01 07:04:02.0)
Dear Customer, Thank you for your feedback! If the PDB770C is suitable for the laser depends on the repetition rate and pulse length. The saturation limit is 440 µW @ 1300nm. I am reaching out to you in order to check with you your laser properties.

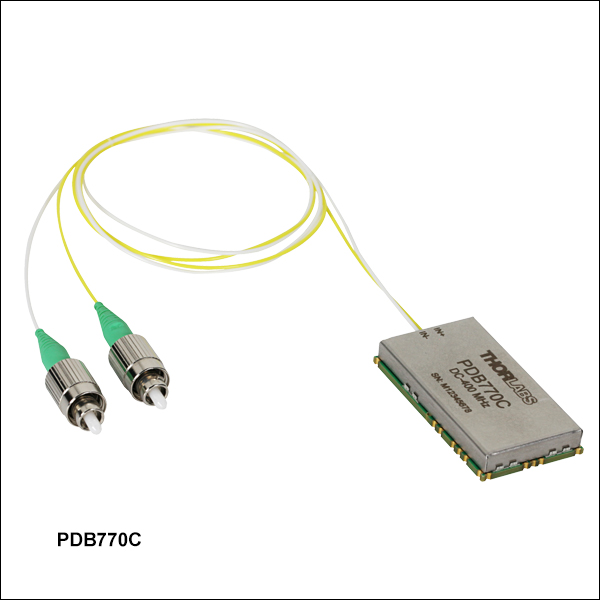

400 MHz Balanced Amplified Photodetectors

Key Specsa,b
Item # Full
Specs
Wavelength Range Typ. Max Responsivity Bandwidth
(3 dB)
CMRRc Transimpedance
Gain
Monitor Output Bandwidth (3 dB) Fiber
Connector
Fiber Type
PDB771C info 980 - 1625 nm 0.70 A/W
at 1050 nm
DC - 400 MHz >25 dB 10 x 103 V/A DC - 150 kHz FC/APCd HI1060
PDB770C info 1260 - 1625 nm 0.85 A/W
at 1310 nm
SMF-28
Ultra
  • For complete specifications, please click the blue info icons () above.
  • All specifications are valid at 23 ± 5 °C and 45 ± 15% rel. humidity (non-condensing).
  • Common Mode Rejection Ratio
  • 2.0 mm Narrow Key FC/APC Connector
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PDB771C Support Documentation
PDB771CBalanced Amplified Detector, Surface Mount, 980 - 1625 nm, DC - 400 MHz, FC/APC
$1,070.00
Volume Pricing
Today
PDB770C Support Documentation
PDB770CBalanced Amplified Detector, Surface Mount, 1260 - 1625 nm, DC - 400 MHz, FC/APC
$946.10
Volume Pricing
Today

2.5 GHz Balanced Amplified Photodetectors

Key Specsa,b
Item # Full
Specs
Wavelength Range Typ. Max Responsivity Bandwidth
(3 dB)
CMRRc Transimpedance
Gain
Monitor Output Bandwidth (3 dB) Fiber
Connector
Fiber Type
PDB781CAC info 980 - 1625 nm 0.70 A/W
at 1050 nm
1 MHz - 2.5 GHz >20 dB
(Typ. >25 dB)
5 x 103 V/A DC - 150 kHz FC/APCd HI1060
PDB780CAC info 1260 - 1625 nm 0.85 A/W
at 1310 nm
SMF-28
Ultra
  • For complete specifications, please click the blue info icons () above.
  • All specifications are valid at 23 ± 5 °C and 45 ± 15% rel. humidity (non-condensing).
  • Common Mode Rejection Ratio
  • 2.0 mm Narrow Key FC/APC Connector
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PDB781CAC Support Documentation
PDB781CACBalanced Amplified Detector, Surface Mount, 980 - 1625 nm, 1 MHz - 2.5 GHz, FC/APC
$1,070.00
Volume Pricing
Today
PDB780CAC Support Documentation
PDB780CACBalanced Amplified Detector, Surface Mount, 1260 - 1625 nm, 1 MHz - 2.5 GHz, FC/APC
$946.10
Volume Pricing
Today

Evaluation Board for Balanced Amplified Detectors

Evaluation Board Connections
Click to Enlarge
A PDB770C balanced amplified detector soldered to a PDBEVAL1 evaluation board. An ADAFCB4 fiber bracket and two plastic clamps are used to mount the fibers.
Evaluation Board Top View
Click to Enlarge

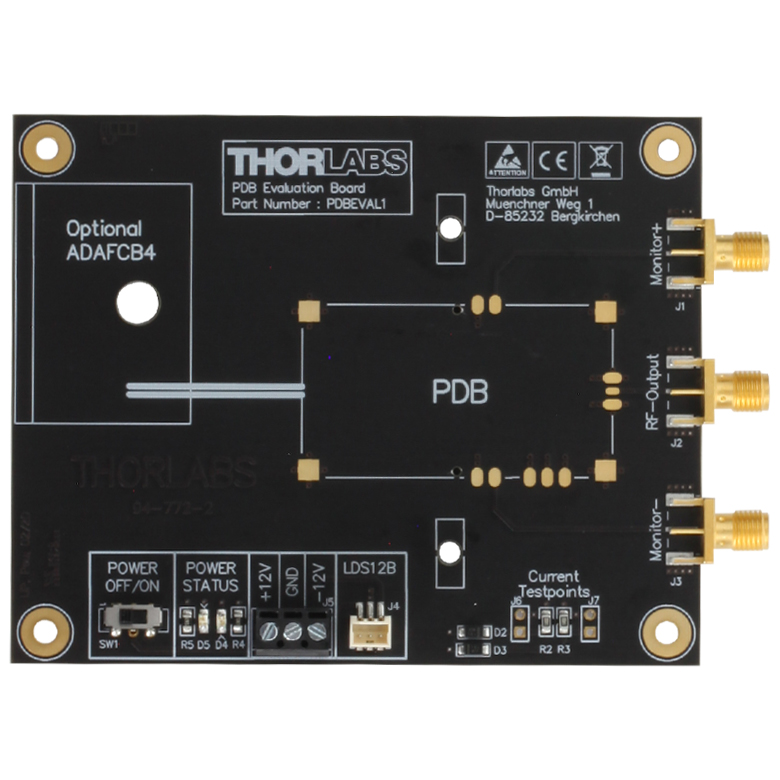

Top View of the PDBEVAL1 Evaluation Board
Key Specs
Full Specsa Power Supply Voltage Power Supply Currentb RF Connectors
info ±(12 V ± 10%) ±50 mA (Typ.)
±200 mA (Max)
SMA up to 5 GHz
  • Click the blue info icon () for complete specifications.
  • Dependent on PDB Module
  • Printed Circuit Board (PCB) for Mounting the PDB77xC and PDB78xCAC Detectors
  • SMA Connectors with Output and Monitor Signals
  • Includes RKMF3 Cable for Connection to Power Supply
  • Footprint: 112.6 mm x 80.0 mm x 13.6 mm

The PDBEVAL1 Evaluation Board allows the user to solder the PDB77xC and PDB78xCAC balanced detectors in place so that power and output connections can be made with common cables and connectors. The half-via contacts around the perimeter of the detector can be soldered to the pre-defined contact points on the evaluation board. The board also features three SMA connectors for the monitor and output signals, as well as a screw terminal block and power cable connector for the power supply. The evaluation board also has a slot for an optional ADAFCB4 fiber mounting bracket.

Included with each evaluation board is an RKMF3 connector cable for connecting the Thorlabs LDS12B Power Supply (not included) and two plastic clamps for fiber mounting. Please refer to the PDBEVAL1 spec sheet for complete instructions on connecting and operating a PDBEVAL1 Evaluation Board.

The components inside the detector modules are ESD sensitive. Take all appropriate precautions to discharge personnel and equipment before making any electrical connections to the unit. All soldering must be done by hand; a reflow oven will damage the device.
