Kinematic Rotation Mounts

Kinematic Rotation Mounts for Ø1/2", Ø1", or Ø2" Optics
Lockable Rotation Ring with Engraved Scale
Internally SM-Threaded for Compatibility with SM05, SM1, or SM2 Lens Tubes

KS1RS

One SM1RR
Retaining Ring Included

KS05RS

One SM05RR
Retaining Ring Included

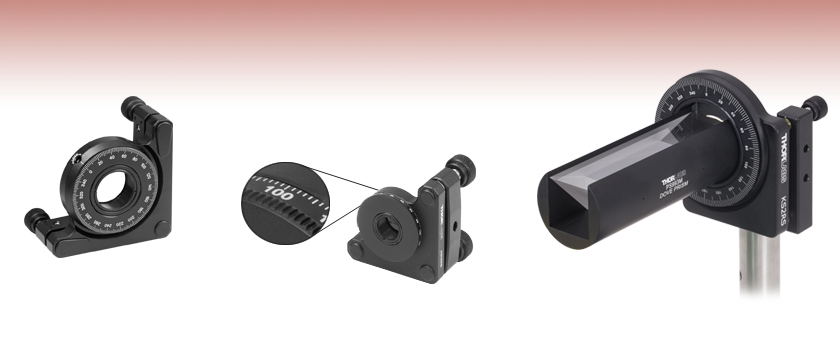

Application Idea

PS993M Dove Prism Mounted in a KS2RS Mount

Please Wait

Overview
Feedback
Rotation Mounts and Stages

Click to Enlarge

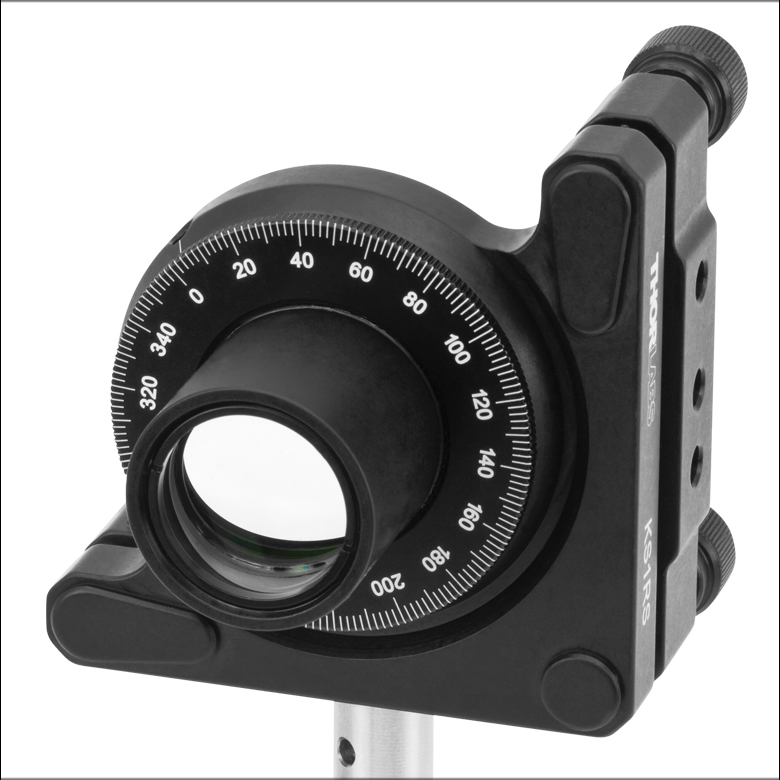

A Cylindrical Achromatic Doublet Mounted in a KS1RS via an SM1 Lens Tube

Features

Combines Kinematic Angular Adjustment with Rotation in One Mount
1/4"-80 Lockable Adjusters Provide ±4° of Angular Adjustment
Engraved Rotation Scale with 2° Graduations Provides 360° Rotation
Fabricated from Black Anodized Aluminum
Compatible with SM05 (0.535"-40), SM1 (1.035"-40), or SM2 (2.035"-40) Lens Tubes

Thorlabs' Kinematic Rotation Mounts combine the features of our Precision Kinematic Mirror Mounts and Manual Rotation Mounts, providing continuous 360° rotational adjustment and ±4° kinematic tip/tilt adjustment. These mounts are therefore ideal for holding optics with rotational asymmetry, such as polarization optics or round cylindrical lenses.

The mounts are available in three sizes for directly mounting Ø1/2", Ø1" or Ø2" optics and are internally SM threaded for compatibility with SM05, SM1, or SM2 lens tubes. For direct mounting, one SM-threaded retaining ring is included. The rotation of the mount and position of the kinematic adjusters may be independently locked in position with locking screws.

If higher adjustment resolution or control is desired, the 1/4"-80 adjusters used in these mounts can be switched with DAS110 or DM22 Differential Adjusters.

Posted Comments:

user (posted 2017-12-06 18:52:12.477)

What is the distance between the center of optics and the bottom of the mount?

nbayconich (posted 2017-12-08 02:49:10.0)

Thank you for contacting Thorlabs. The height from the center of your optic and the base of the KS1RS is 39.6mm. These dimensions can be found under the Auto CAD .pdf files in the product documents.

anthony.phan (posted 2017-08-07 12:47:44.69)

May I suggest this product but with precision rotary control?

tfrisch (posted 2017-08-16 03:26:21.0)

Hello, thank you for contacting Thorlabs. I have posted this in our internal engineering forum, but I will also reach out to you directly about using multiple stock components together to achieve a similar performance.

Rotation Mount and Stage Selection Guide

Thorlabs offers a wide variety of manual and motorized rotation mounts and stages. Rotation mounts are designed with an inner bore to mount a Ø1/2", Ø1", or Ø2" optic, while rotation stages are designed with mounting taps to attach a variety of components or systems. Motorized options are powered by a DC Servo motor, 2 phase stepper motor, piezo inertia motor, or an Elliptec™ resonant piezo motor. Each offers 360° of continuous rotation.

Manual Rotation Mounts

Rotation Mounts for Ø1/2" Optics
Item #	MRM05(/M)	RSP05(/M)	CRM05	PRM05(/M)^a	SRM05	KS05RS	CT104
Click Photo to Enlarge
Features	Mini Series	Standard	External SM1 (1.035"-40) Threads	Micrometer	16 mm Cage-Compatible	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Compatible with 30 mm Cage Translation Stages and 1/4" Translation Stages^b
Additional Details

This mount is available in the PRM05GL5 bundle, which includes the PRM05 rotation mount with the SM05PM5 polarizing prism mount.
The CT104 is complatible with the 1/4" translation stages using our MS103(/M) adapter plate.
The CT104 is compatible with the CT1A(/M) cage translation stage, which is designed for use with 30 mm cage systems.

Rotation Mounts for Ø1" Optics
Item #	RSP1(/M)	LRM1	RSP1D(/M)	DLM1(/M)	CLR1(/M)	RSP1X15(/M)	RSP1X225(/M)	PRM1(/M)^a
Click Photo to Enlarge
Features	Standard	External SM1 (1.035"-40) Threads	Adjustable Zero	Two Independently Rotating Carriages	Rotates Optic Within Fixed Lens Tube System	Continuous 360° Rotation or 15° Increments	Continuous 360° Rotation or 22.5° Increments	Micrometer
Additional Details

This mount is available in the PRM1GL10 bundle, which includes the PRM1 rotation mount with the SM1PM10 polarizing prism mount.

Rotation Mounts for Ø1" Optics
Item #	LM1-A & LM1-B(/M)	CRM1T(/M)	CRM1LT(/M)	CRM1PT(/M)	KS1RS	K6XS
Click Photo to Enlarge
Features	Optic Carriage Rotates Within Mounting Ring	30 mm Cage-Compatible^a	30 mm Cage-Compatible for Thick Optics^a	30 mm Cage-Compatible with Micrometer^a	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Six-Axis Kinematic Mount^a
Additional Details

This mount also features four 4-40 (M3) holes on the rotation dial for use with the K6A1(/M) prism platform.

Rotation Mounts for Ø2" Optics
Item #	RSP2(/M)	RSP2D(/M)	PRM2(/M)	LM2-A & LM2-B(/M)	LCRM2(/M)	KS2RS	K6X2
Click Photo to Enlarge
Features	Standard	Adjustable Zero	Micrometer	Optic Carriage Rotates Within Mounting Ring	60 mm Cage-Compatible	±4° Kinematic Tip/Tilt Adjustment Plus Rotation	Six-Axis Kinematic Mount
Additional Details

Manual Rotation Stages

Manual Rotation Stages
Item #	RP005(/M)	PR005(/M)	MSRP01(/M)	RP01(/M)	RP03(/M)	QRP02(/M)
Click Photo to Enlarge
Features	Standard					Two Hard Stops
Additional Details

Manual Rotation Stages
Item #	XRNR1(/M)	XRR1(/M)	PR01(/M)	CR1(/M)	XYR1(/M)	OCT-XYR1(/M)
Click Photo to Enlarge
Features	Fine Rotation Adjuster and 2" Wide Dovetail Quick Connect	Fine Rotation Adjuster and 3" Wide Dovetail Quick Connect	Fine Rotation Adjuster and SM1-Threaded Central Aperture	Fine Pitch Worm Gear	Rotation and 1/2" Linear XY Translation
Additional Details

The stage profile is higher when it is mounted using the screw slots rather than stacked on another stage or accessory with mating dovetails.
The OCT-XYR1(/M) stage includes the XYR1A solid sample plate. This plate can be detached from the stage to reveal the same mounting features present on the XYR1(/M) stage.

Motorized Rotation Mounts and Stages

Motorized Rotation Mounts and Stages with Central Clear Apertures
Item #	DDR25(/M)	PDR1(/M)	K10CR1(/M)	PRM1Z8(/M)^a	DDR100(/M)	ELL14	HDR50(/M)
Click Photo to Enlarge
Features	Compatible with SM05 Lens Tubes, 16 mm Cage System, 30 mm Cage System	Compatible with SM05 Lens Tubes, 30 mm Cage System, PD1(/M) and PDX1(/M) Linear Stages	Compatible with SM1 Lens Tubes & 30 mm Cage System		Compatible with SM1 Lens Tubes, 16 mm Cage System, 30 mm Cage System	Compatible with SM1 Lens Tubes, Open Frame Design for OEM Applications	Compatible with SM2 Lens Tubes
Additional Details

Motor Type	Brushless DC Servo	Piezo Inertia Drive	2 Phase Stepper Motor with Worm Gear	DC Servo	Brushless DC Servo	Piezo Resonant Motor	2 Phase Stepper Motor with Worm Gear
Rotation Adjustment Range	360° Continuous
Rotating Platform/Carriage
Diameter	Ø1.14" (Ø29.0 mm)	1.34" (34.0 mm)	Ø1.81" (Ø46.0 mm)	Ø1.97" (Ø50.0 mm)	Ø4.37" (111.0 mm)	-	Ø3.86" (Ø98.0 mm)
Height	1.12" (28.5 mm)	0.71" (18.0 mm)	0.84" (21.5 mm)	0.91" (23.0 mm)	1.57" (39.9 mm)	0.59" (15.1 mm)	1.73" (44.0 mm)
Threaded Mounting Holes	Four 4-40 with 16 mm Spacing	Four 8-32 (M4)	Six 4-40 (M3)	Four 6-32 (M4), Four 8-32 (M4), Four 4-40 with 30 mm Spacing	Eight 8-32 (M4), Four 1/4"-20 (M6), Four 4-40 with 16 mm Spacing, Four 4-40 with 30 mm Spacing	-	Four 8-32 (M4)
Center Aperture	SM05 Internal Threads, 1.2" (28.5 mm) Deep	Ø9.0 mm Clear Aperture with SM05 Internal Threads, 2.5 mm Deep	SM1 Internal Threads, 0.84" (21.5 mm) Deep	SM1 Internal Threads, 0.91" (23.0 mm) Deep	SM1 Internal Threads, 0.82" (21.0 mm) Deep	SM1 Internal Threads, 0.58" (14.7 mm) Deep	Ø50.0 mm Clear Aperture with SM1 Internal Threads, 6.9 mm Deep
Speed (Max)	1800°/s	20°/s	10°/s	25°/s	1080°/s	430°/s	50°/s
Platform Adapter Plate(s)	-	-	K10CR1A2(/M)	PRM1SP1(/M)	NR360SP9(/M) NR360SP4(/M)	-	NR360SP9(/M) NR360SP8 NR360SP4(/M)
Base
Dimensions	2.19" x 2.19" (55.6 mm x 55.6 mm)	1.57" x 1.57" (40.0 mm x 40.0 mm)	4.21" x 2.60" (107.0 mm x 66.0 mm)	5.18" x 3.26" (131.5 mm x 82.8 mm)	4.53" x 4.53" (115 mm x 115 mm)	2.60" x 3.25" (66.0 mm x 82.5 mm)	7.46" x 4.55" (189.4 mm x 115.5 mm)
Stage Adapter Plates	-	-	K10CR1A1 K10CR1A3	PRM1SP2 PRM1SP3	-	-	NR360SP2(/M) NR360SP5(/M)
Bottom Surface Mounting Holes	-	Two 8-32 (M4)	-	Two 1/4" (M6) Counterbores	Four 1/4" (M6) Clearance Holes	-	Four 1/4" (M6) Counterbores
Side Holes for Vertical Mounting	Four 8-32 (M4) Eight 4-40	One 8-32 (M4), Two Sides	Three 8-32 (M4)	Four 8-32 (M4)	Eight 1/4"-20 (M6)	-	Six 1/4"-20 (M6)
Cage System Compatibility	Four 4-40 Holes on Back Side with 16 mm Spacing, Four 4-40 Taps on Front Side with 30 mm Spacing	Ø6 mm Holes for ER Cage Rods with 30 mm Spacing	Four 4-40 Holes on Each Side with 30 mm Spacing	-	Four 4-40 Holes on Back Side with 30 mm Spacing	60 mm Cage using Four 0.12 (3.0 mm) Holes for 4-40 Screws, 30 mm Cage using SR025 Cage Rods to Adapt to ER Cage Rods	-

This stage is available in the KPRMTE(/M), which includes the PRMTZ8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.

Motorized Rotation Mounts and Stages with Tapped Platforms
Item #	PRMTZ8(/M)^a	ELL18(/M)^b
Click Photo to Enlarge
Features	Tapped Mounting Platform for Mounting Prisms or Other Optics	Tapped Mounting Platform, Open Frame Design for OEM Applications
Additional Details

This stage is available in the KPRM1E(/M), which includes the PRMT1Z8(/M) Motorized Rotation Stage with the KDC101 K-Cube DC Servo Motor Controller.
This stage is available in the ELL18K(/M), which includes an interface board, mounting brackets, and connectors for PC control.

Ø1/2" Kinematic Rotation Mount

Zoom

Click to Enlarge
KS05RS Shown with a PIAK10 Piezoelectric Inertia Actuator

Three 1/4"-80 Lockable Stainless Steel Adjusters with Removable Knobs and Brass Bushings for Smooth Adjustments
Two #8 (M4) Counterbored Mounting Holes Allow Left-Handed or Right-Handed Orientations
SM05-Threaded (0.535"-40) Rotation Ring with Locking Screw

The KS05RS is designed to hold Ø1/2" (12.7 mm) optics in situations where it is necessary to control the tip/tilt position as well as the rotation of the optic. It is also capable of translation along the z-axis, which is accomplished by turning all three tip/tilt adjusters equally in the same direction. This mount is ideal for polarization optics such as linear polarizers or wave plates. The KS05RS features an SM05-threaded bore capable of mounting Ø1/2" optics up to 0.41" (10.4 mm) thick using the included SM05RR retaining ring. Additionally, SM05 lens tubes may be threaded onto the mount to accomodate thicker optics.

Thorlabs' Kinematic Rotation Mounts combine the features of our Precision Kinematic Mirror Mounts and Manual Rotation Mounts, providing continous 360° rotational adjustment, ±4° kinematic tip/tilt adjustment, and 0.25'' (6.4 mm) of linear Z translation.

The rotation of the mount may be locked in position with a locking screw. The locking screw is activated using a 0.050" (1.3 mm) hex key. The kinematic adjustment is provided by three 1/4"-80 adjusters with brass bushings to provide smooth adjustment. Each adjuster may be locked with a locking screw using a 5/64" (2 mm) hex key.

Please note that while this mount is designed to hold Ø1/2" optics, the mount uses the same form factor as the KS1 Ø1" mirror mount in order to incorporate the rotation ring.

Ø1" Kinematic Rotation Mount

Zoom

Three 1/4"-80 Lockable Stainless Steel Adjusters with Removable Knobs and Brass Bushings for Smooth Adjustments
Six #8 (M4) Counterbored Mounting Holes Allow Left-Handed or Right-Handed Orientations
SM1-Threaded (1.035"-40) Rotation Ring with Locking Screw

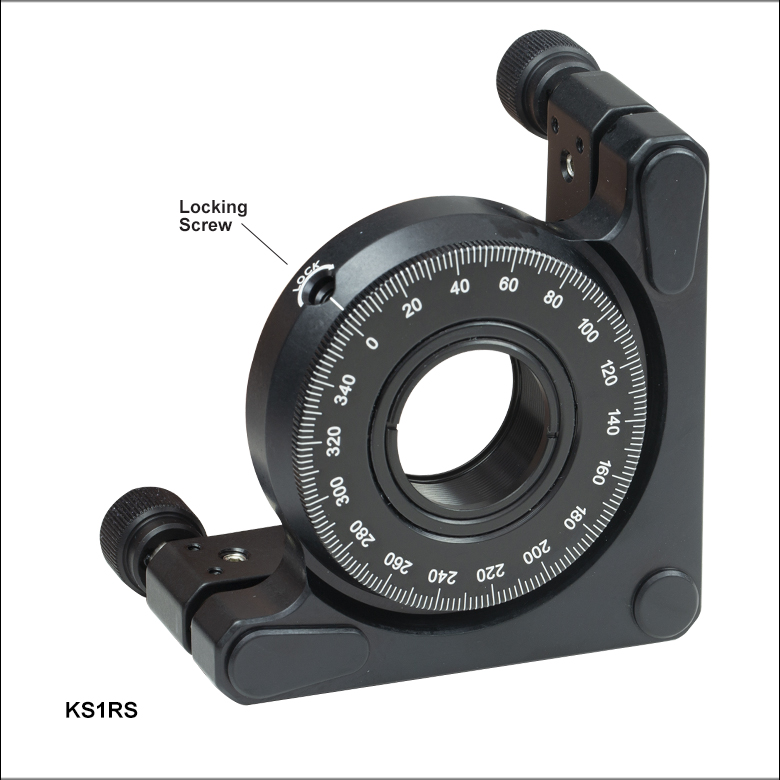

The KS1RS is designed to hold Ø1" (25.4 mm) optics in situations where it is necessary to control the tip/tilt position as well as the rotation of the optic. It is also capable of translation along the z-axis, which is accomplished by turning all three tip/tilt adjusters equally in the same direction. This mount is ideal for polarization optics such as linear polarizers or wave plates. In addition, our Ø1" round cylindrical lenses may also be mounted in the KS1RS when it is necessary to adjust the angle of the line produced at the focal plane. The KS1RS features an SM1-threaded bore capable of mounting Ø1" optics up to 0.47" (11.9 mm) thick using the included SM1RR retaining ring. Additionally, SM1 lens tubes may be threaded onto the mount to accommodate thicker optics.

Thorlabs' Kinematic Rotation Mounts combine the features of our Precision Kinematic Mirror Mounts and Manual Rotation Mounts, providing continuous 360° rotational adjustment, ±4° kinematic tip/tilt adjustment, and 0.25'' (6.4 mm) of linear Z translation.

The rotation of the mount may be locked in position with a locking screw. The locking screw is activated using a 5/64" (2 mm) hex key. The kinematic adjustment is provided by three 1/4"-80 adjusters with brass bushings to provide smooth adjustment. Each adjuster may be locked with a locking screw using a 5/64" (2 mm) hex key.

Please note that while this mount is designed to hold Ø1" optics, the mount uses the same form factor as the KS2 Ø2" mirror mount in order to incorporate the rotation ring.

Ø2" Kinematic Rotation Mount

Zoom

Two 1/4"-80 Lockable Stainless Steel Adjusters with Removable Knobs and Brass Bushings for Smooth Adjustments
Four #8 (M4) Counterbored Mounting Holes Allow Left-Handed or Right-Handed Orientations
SM2-Threaded (2.035"-40) Rotation Ring with Locking Screw

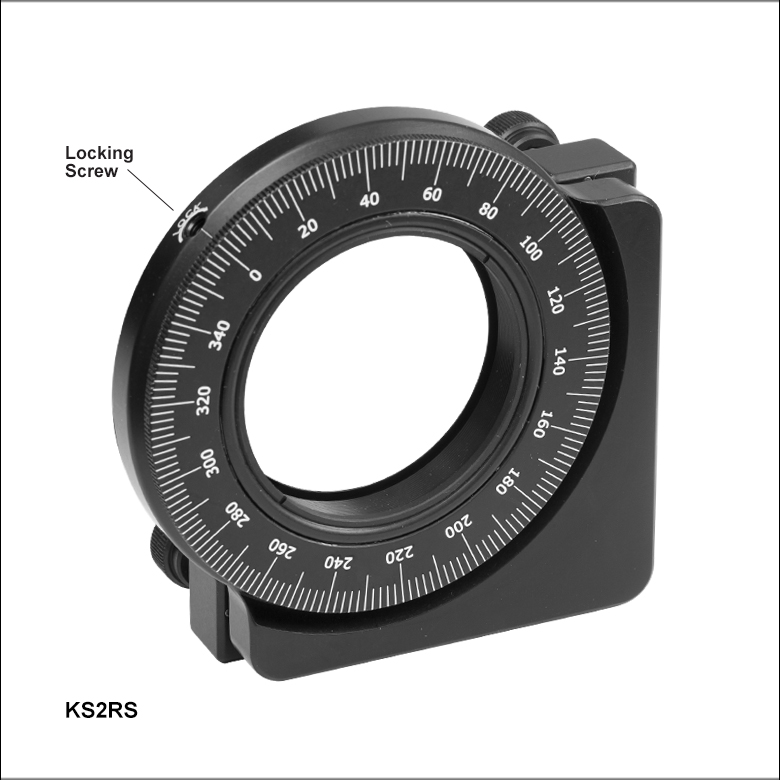

The KS2RS is designed to hold Ø2" (50.8 mm) optics in situations where it is necessary to control the tip/tilt position as well as the rotation of the optic. This mount is ideal for polarization optics such as linear polarizers or wave plates. In addition, our mounted dove prisms with SM2 threading may also be mounted in the KS2RS to change the orientation of the rotated image. The KS2RS features an SM2-threaded bore capable of mounting Ø2" optics up to 0.47" (12.0 mm) thick using the included SM2RR retaining ring. Additionally, SM2 lens tubes may be threaded onto the mount to accomodate thicker optics.

The rotation of the mount may be locked in position with a locking screw. The locking screw is activated using a 5/64" (2 mm) hex key. The kinematic adjustment is provided by two 1/4"-80 adjusters with brass bushings to provide smooth adjustment. Each adjuster may be locked with a locking screw using a 5/64" (2 mm) hex key.

Please note that while this mount is designed to hold Ø2" optics, the mount uses the same form factor as the KS3 Ø3" mirror mount in order to incorporate the rotation ring.

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous			Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°	Manual, 360° Continuous
Optic Mounting	Internally SM05-Threaded Carriage
Maximum Accepted Optic Thickness	0.23" (5.8 mm)	0.23" (5.8 mm)	0.26" (6.5 mm)	0.23" (5.9 mm)	0.24" (6.0 mm)	0.41" (10.4 mm)	0.29" (7.3 mm)
Post Mounting	4-40 (M3) Stud	8-32 (M4) Tap	None	8-32 (M4) Tap	None	Two Counterbores for 8-32 (M4) Cap Screws	Two Counterbores for 4-40 (M3) Cap Screws
Cage System Compatibility	N/A				Four Bores for ∅4 mm Cage Rods with 16 mm Spacing	N/A	N/A^c

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous					Manual, Continuous: 360°; Discrete: 15°	Manual, Continuous: 360°; Discrete: 22.5°	Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°
Optic Mounting	Internally SM1-Threaded Carriage
Maximum Accepted Optic Thickness	0.47" (11.9 mm)	0.34" (8.6 mm)	0.51" (12.9 mm)	0.25" (6.4 mm)	0.27" (6.8 mm)	0.50" (12.7 mm)	0.50" (12.7 mm)	0.50" (12.7 mm)
Post Mounting	8-32 (M4) Tap	N/A	8-32 (M4) Tap
Cage System Compatibility	N/A							Four 4-40 (M3) Taps on Rotation Dial with 30 mm Spacing

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous			Coarse: Manual, 360° Continuous; Fine: Micrometer, ±7°	Manual, 360° Continuous
Optic Mounting	Internal SM1 Threads in LM1-A	Internally SM1-Threaded Carriage	Double-Bore with Setscrew	Internally SM1-Threaded Carriage
Accepted Optic Thickness	Max: 0.37" (9.4 mm)	Max: 0.37" (9.4 mm)	Min: 0.31" (7.9 mm)	Max: 0.37" (9.4 mm)	Max: 0.47" (11.9 mm)	Max: 0.55" (14 mm)
Post Mounting	8-32 (M4) Tap in LM1-B	8-32 (M4) Tap			Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility	N/A	Four Bores for ∅6 mm Cage Rods with 30 mm Spacing			N/A

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous		Coarse: Manual, 360° Continuous; Fine: ±7° Micrometer	Manual, 360° Continuous
Optic Mounting	Internally SM2-Threaded Carriage			Internal SM2 Threads in LM2-A	Internally SM2-Threaded Carriage
Maximum Accepted Optic Thickness	0.51" (13 mm)	0.54" (13.7 mm)	0.48" (12.2 mm)	0.46" (11.7 mm)	0.51" (13 mm)	0.47" (12 mm)	0.53" (13.4 mm)
Post Mounting	8-32 (M4) Tap			8-32 (M4) Tap in LM2-B	8-32 (M4) Tap	Four Counterbores for 8-32 (M4) Cap Screws	Six Counterbores for 8-32 (M4) Cap Screws
Cage System Compatibility	N/A		Four 4-40 (M3) Taps on Rotation Dial with 60 mm Spacing	N/A	Four Bores for Ø6 mm Cage Rods with 60 mm Spacing	N/A	N/A

Rotation Drive Mechanism and Adjustment Range	Manual, 360° Continuous
Mounting Platform
Diameter	Ø1.00" (Ø25.4 mm)	Ø1.00" (Ø25.4 mm)	Ø1.40" (Ø35.6 mm)	Ø2.07" (Ø52.8 mm)	Ø4.29" (Ø109.0 mm)	Ø2.00" (Ø50.8 mm)
Height	0.67" (17.0 mm)	0.75" (19.1 mm)	0.51" (13.1 mm)	0.63" (16.1 mm)	0.70" (17.8 mm)	1.00" (25.4 mm)
Taps	Six 4-40 (M3) One 1/4"-20 (M6)	One 8-32 (M4) Eight 4-40 (M3)	Four 4-40 (M3) One 8-32 (M4)	Four 8-32 (M4) One 1/4"-20 (M6)	Eight 6-32 (M4) Sixteen 8-32 (M4) Thirteen 1/4"-20 (M6)	Four 6-32 (M4) Four 8-32 (M4) Five 1/4"-20 (M6)
Additional Holes	Two Ø0.13" (Ø3.2 mm) Holes for FiberBench Accessories	-	Four Clearance Holes for 4-40 (M3) Cap Screws	-	-	-
Platform Adapter Plate(s)	-	-	-	-	-	-
Base
Dimensions	1.50" x 1.50" (38.1 x 38.1 mm)	1.50" x 1.50" (38.1 x 38.1 mm)	1.78" x 1.40" (45.2 x 35.6 mm)	2.45" x 2.45" (62.2 x 62.2 mm)	4.65" x 4.65" (118.1 x 118.1 mm)	2.55" x 2.55" (64.8 x 64.8 mm)
Mounting Holes	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 4-40 (M3) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Clearance Holes for 1/4"-20 (M6) Cap Screws	Four Counterbores for 1/4"-20 (M6) Cap Screws
Side Taps for Vertical Mounting	-	-	One 4-40 (M3)	One 8-32 (M4)	Three 8-32 (M4)	-
Cage System Compatibility	N/A

Rotation Drive Mechanism and Adjustment Range	Manual: 360° Continuous; Fine: Adjuster Screw, ±5°	Manual: 360° Continuous; Fine: Adjuster Screw, ±5°	Manual: 360° Continuous; Fine: Micrometer, ±5°	Worm Gear, 360° Continuous	Manual, 360° Continuous with 1/2" (13 mm) Linear Travel Along X and Y Axes with Micrometer
Mounting Platform
Diameter	Ø2.21" (Ø56.0 mm)	Ø3.19" (Ø81.0 mm)	Ø2.70" (Ø68.6 mm)	Ø1.70" (Ø43.2 mm)	Ø4.18" (Ø106.0 mm)	Ø4.04" (Ø102.5 mm)
Height	On Breadboard: 0.91" (23.0 mm)^a Dovetail Stacked: 0.83" (21.0 mm)	On Breadboard: 0.91" (23.0 mm)^a Dovetail Stacked: 0.83" (21.1 mm)	1.00" (25.3 mm)	1.00" (25.4 mm)	1.00" (25.4 mm)	1.65" (41.8 mm)
Taps	Thirteen 1/4"-20 (M6) Four 8-32 (M4) Four 6-32 (M4)	Thirteen 1/4"-20 (M6) Four 8-32 (M4) Four 6-32 (M4)	Four 4-40 (M3) Ten 6-32 (M4) Six 1/4"-20 (M6)	Four 4-40 (M3) Eight 6-32 (M4) Four 8-32 (M4)	Eight 4-40 (M3) Twelve 8-32 (M4) Sixteen 1/4"-20 (M6)	-^b
Additional Holes	-	-	Ø0.94" (Ø23.9 mm) Clear Aperture with SM1 Threading	-	Ø0.90" (Ø22.9 mm) Clear Aperture with SM1 Threading	-^b
Platform Adapter Plate(s)	-	-	PR01A(/M) CRA30(/M)	CR1A(/M)	XYR1A	-^b
Base
Dimensions	3.35" x 2.52" (85.0 mm x 63.9 mm)	4.33" x 3.58" (110.0 mm x 91.0 mm)	2.75" x 3.50" (69.9 x 88.9 mm)	2.76" x 2.10" (70.1 x 53.4 mm)	5.50" x 4.42" (139.7 x 112.3 mm) (Not Including Micrometers)
Mounting Holes	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws	Two Mounting Slots for 1/4"-20 (M6) Cap Screws	Four Mounting Slots for 1/4"-20 (M6) Cap Screws
Side Taps for Vertical Mounting	-	-	Two 1/4"-20 (M6)	-	-
Cage System Compatibility	-	N/A	Four 4-40 Taps on Top Surface for 30 mm Cage System	N/A	Four 4-40 Taps on Top Surface for 30 mm Cage System Four 4-40 Taps on Top Surface for 60 mm Cage System Four 4-40 Taps on Bottom Surface for 60 mm Cage System	-^b
