Circular Solid Aluminum Optical Breadboards, Double Density Holes
- Through-Tapped 1/4"-20 or M6 Holes
- Matte Black Anodized Finish Reduces Unwanted Reflections
- Custom Sizes Available

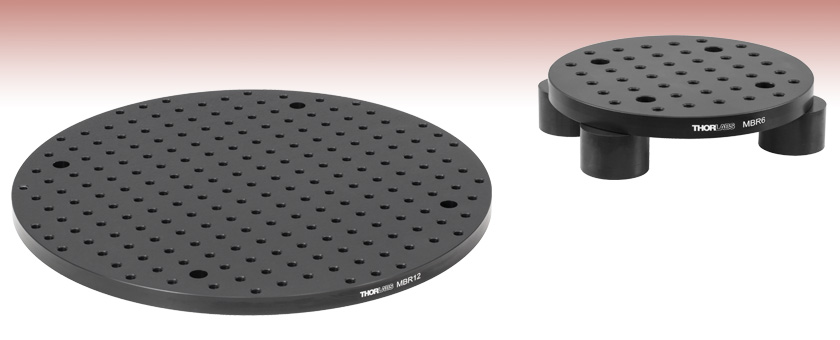

Ø12.00" Aluminum Breadboard
Ø6.00" Circular Optical Breadboard
Mounted on AV2 Vibration-Absorbing Feet
Click for Details
Diagram of the MBR6 Breadboard. For similar diagrams of the other circular breadboards, please see the Weights & Dims tab.
|Specification||Imperial Boards||Metric Boards|
|Material||Solid Aluminum Alloy|
|Finish||Matte Black Anodized|
|Breadboard Thickness||0.5"||12.7 mm|
|Flatness||±0.006" over 1 ft2||±0.15 mm over 0.3 m2|
|Anodization Thickness||0.00015" to 0.00020"||15 μm (Min)|
|Holes||1/4"-20 Taps||M6 Taps|
|Hole Spacing||1" Centers
Double Density Pattern
|25 mm Centers
Double Density Pattern
|Counterbores||Four 1/4" Holes||Four M6 Holes|
- Imperial Sizes: Ø6.00" and Ø12.00"
- Metric Sizes: Ø150.0 mm and Ø300.0 mm
- Circular Geometry Saves Space
- Same Hole Pattern as Our Double-Hole-Density Breadboards
- Low-Reflection Anodized Surface
Thorlabs' circular, double-density breadboards are constructed from a 1/2" (12.7 mm) thick aluminum plate; this thickness is sufficient to maintain flatness over the full area (see the table to the right for flatness specifications). These nonmagnetic breadboards feature 1/4"-20 (M6) tapped holes at twice the density of our standard hole pattern to provide a convenient platform for assembling prototype optical assemblies, conducting experiments, and mounting small subsystems. Please see the Weights & Dims tab for breadboard diagrams that call out the hole spacings. To reduce reflections, these breadboards are finished with a black anodized coating.
Each breadboard offers four 1/4" (M6) counterbored mounting holes for attaching the breadboard to an optical table, another breadboard, mounting posts, brackets, breadboard feet, or other surfaces and mounts. For example, the photograph at the top of the page shows the MBR6 mounted on our AV2 vibration-absorbing feet.
Thorlabs also offers rectangular double-hole-density optical breadboards, as well as rectangular standard-hole-density breadboards and unanodized, vacuum-compatible breadboards. Custom sizes of these breadboards are also available. Please contact Tech Support for more information.
|Item #||Dimensions||Unpackaged||Packaged Shipping|
|Mass (kg)||Weight (lb)||Mass (kg)a||Weight (lb)a|
|MBR6||Ø6.00" x 0.50"||0.56||1.23||0.57||1.26|
|MBR12||Ø12.00" x 0.50"||2.34||5.16||2.59||5.71|
|MBR150/M||Ø150.0 mm x 12.7 mm||0.56||1.23||0.57||1.26|
|MBR300/M||Ø300.0 mm x 12.7 mm||2.27||5.00||2.66||5.86|

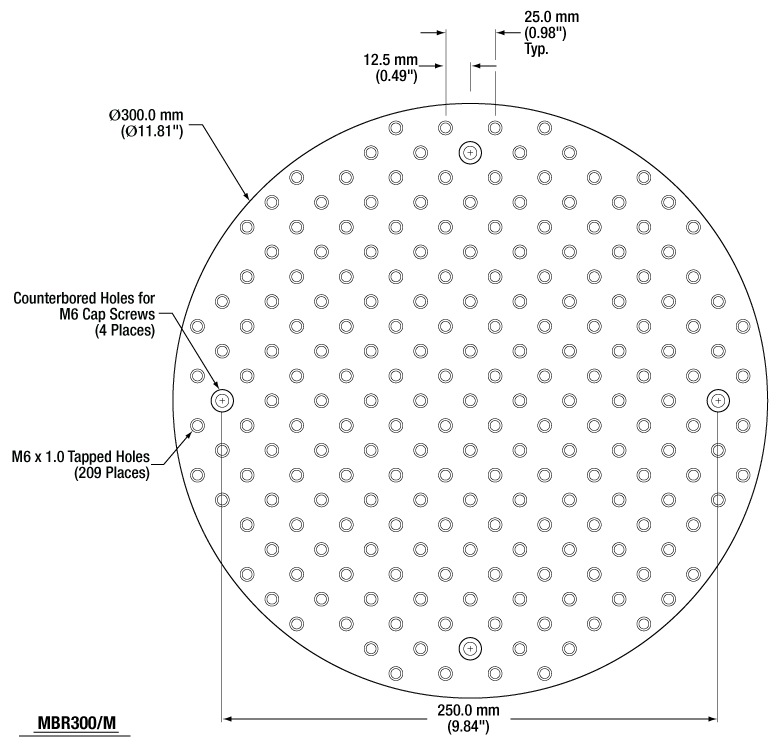

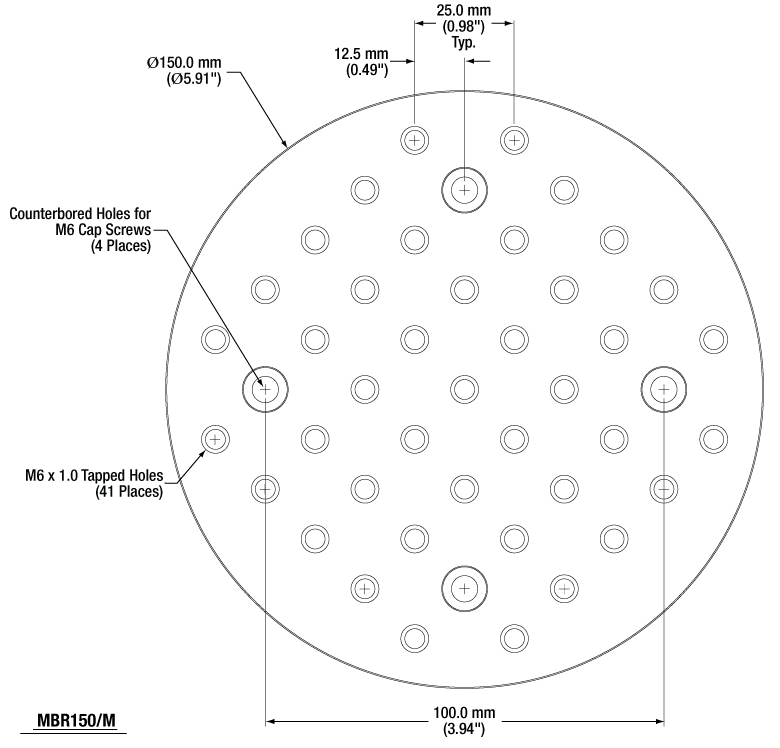

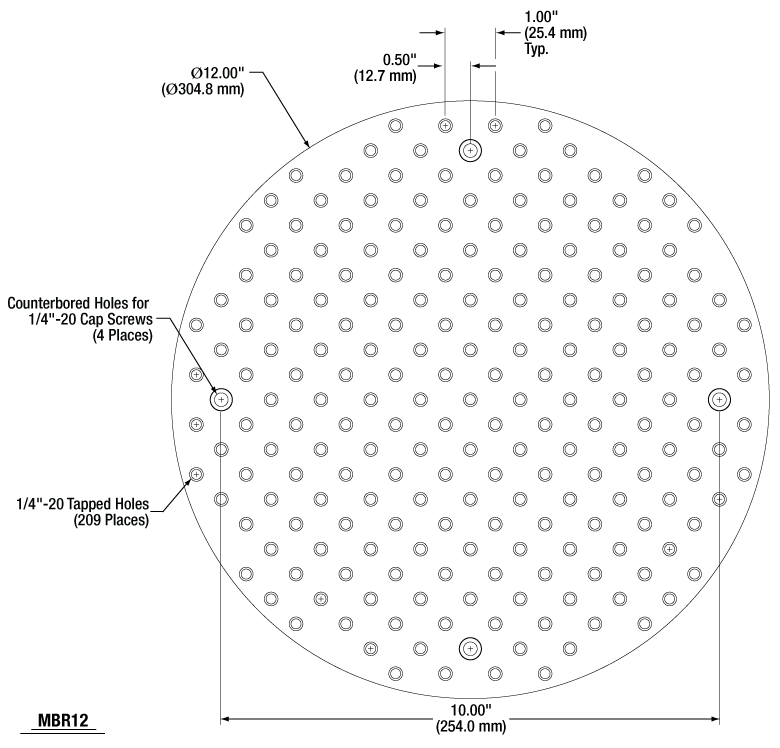

Below are diagrams calling out the dimensions on each breadboard. Please note that the breadboards are not shown proportional to one other.
