C-Band Optical Amplifiers (BOAs and SOAs), 1550 nm


  • Compact Optical Amplifier in Butterfly Package
  • Low Noise, Broad, Flat Optical Bandwidth, High Saturation Power (>15 dB)
  • Polarization-Independent and Polarization-Maintaining Version

SOA/BOA Series

BOA1007C

Actual Size Compared to
a U.S. Penny

Related Items


Please Wait
Other Optical Amplifier Options
1050 nm BOAs
O-Band (1285 - 1350 nm) BOAs
C-Band (1550 nm) BOAs and SOAs
L-Band (1590 - 1625 nm) BOAs
The center wavelength of a BOA can be readily tailored for specific applications. It is quite common to adjust the BOA wavelength spectrum to match the specific laser source. Please contact us if you have custom wavelength requirements for pilot-projects or OEM applications.
Internal Diagram

Features

  • Semiconductor Optical Amplifier (SOA)
    • Polarization Independent: Amplifies All Polarization States
    • SM or PM Fiber Pigtails (1.5 m) with FC/APC Connectors
    • Typical Applications: Inline Amplifier, Detector Pre-Amp, Fast Optical Switch
      (~1 ns Switching Speed)
  • Booster Optical Amplifier (BOA)
    • Polarization Maintaining: Amplifies Only One Polarization State
    • SM or PM Fiber Pigtails (1.5 m) with FC/APC Connectors
    • Typical Applications: Boosting Laser Transmitters, Compensating for Transmit MUX/DeMUX Insertion Loss, Optical Shutter

BOAs and SOAs are single-pass, traveling-wave amplifiers that perform well with both monochromatic and multi-wavelength signals. Since BOAs only amplify one state of polarization, they are best suited for applications where the input polarization of the light is known. For applications where the input polarization is unknown or fluctuates, a Semiconductor Optical Amplifier (SOA) is required. However, the gain, noise, bandwidth, and saturation power specifications of a BOA are superior to that of a SOA because of the design features that make the SOA polarization insensitive.

Thorlabs offers both free space and fiber-coupled versions of its BOAs and SOAs. Free space versions are offered either as a chip on submount (C) or chip on heatsink (H). Fiber-coupled optical amplifiers are offered and exhibit low coupling losses. Losses typically range from 1.5 to 2.5 dB for the fiber-to-chip and chip-to-fiber coupling (each). This affects the total gain, noise figure (NF), and saturation power (Psat). While the gain produced by the amplifier exceeds that of the losses, these losses remain an important factor in determining the device's performance. For instance a 1 dB drop in input coupling efficiency increases the noise figure by 1 dB. Alternatively, a 1 dB drop in output coupling decreases the saturation power by 1 dB.

Driver Option
The CLD1015 butterfly LD/TEC controller is one possible controller for these amplifiers. The LD/TEC controller and mount combination offers full control via a touch screen. When operating the optical amplifiers on this page with the CLD1015, the orientation for type 1 pin configurations should be used.

Center Wavelength Note
The center wavelength (CWL) of the ASE spectrum in broadband semiconductor devices such as optical amplifiers may show variation between lots. Please refer to the Specs tab for the CWL tolerances of each particular model. For applications in which a specific ASE center wavelength is a critical concern, please contact Tech Support for information on the CWL of currently available lots.

Booster Optical Amplifiers

The BOA consists of a highly efficient InP/InGaAsP Multiple Quantum Well (MQW) layer structure. As seen in the schematic to the right, the input and output of the amplifier is coupled to the reliable ridge waveguide on the optical amplifier chip. C-Band BOAs are available in a standard 14-pin butterfly package with either SMF or PMF pigtails that are terminated with FC/APC connectors. The connector key is aligned to the slow axis on all PMF pigtailed models. Optional polarization-maintaining isolators at the input, output, or both input/output are also available (specifications may vary with different configurations). Please contact Tech Support to order such a device. Alternatively, an unpackaged C-Band BOA chip is available on a submount or heatsink.


Click to Enlarge

Our SOA1117S and BOA1004P optical amplifiers are also available in the S7FC1013S and S9FC1004P benchtop optical amplifiers, respectively.

Semiconductor Optical Amplifiers

The Semiconductor Optical Amplifier (SOA) is a polarization insensitive optical amplifier; therefore, all polarization states are amplified. These devices are an ideal in-line amplifier. Advanced epitaxial wafer growth and opto-electronic packaging techniques enable a high output saturation power, low noise figure, and large gain across a broad spectral bandwidth. These devices come in an industry-standard 14-pin butterfly package with either SMF or PMF pigtails that are terminated with FC/APC connectors. The connector key is aligned to the slow axis on all PMF pigtailed models. These come without isolators, but we are able to provide units with polarization-insensitive isolators at the input, output, or both. Please contact Tech Support for help in ordering such a device.

Item #a Center Wavelength 3 dB Bandwidth Saturated Output
Power (@ -3 dB)
Small Signal Gain
(@ Pin = -20 dBm)
Noise Figure
BOA1004S and BOA1004P 1550 nm Typical 85 nm Typical 15 dBm Typical 27 dB Typical 7.5 dB Typical
SOA1013S 1500 nm Typicalb - 14 dBm Typical 13 dB Typical 8.0 dB Typical
SOA1117S and SOA1117P 1550 nm Typical - 9 dBm Typical 20 dB Typical 10.0 dB Typical
BOA1007C and BOA1007H 1550 nm Typical 85 nm Typical 18 dBm Typical 30 dB Typical 6.0 dB Typical
  • For complete specifications, please view the Specs and Graphs tabs.
  • This center wavelength allows an operating wavelength of 1528 - 1562 nm; for details please see the Specs tab.
Item # Symbol BOA1004S and BOA1004P
Min Typical Max
Operating Current IOP - 600 mA 750 mA
Center Wavelength λC 1530 nm 1550 nm 1570 nm
ASE Optical 3 dB Bandwidth BW 80 nm 85 nm -
Saturation Output Powera (@ -3 dB) PSAT 13 dBm 15 dBm -
Small Signal Gain (@ PIN = -20 dBm, λ = 1550 nm) G 23 dB 27 dB -
Gain Ripple (RMS) @ IOP δG - 0.05 dB 0.3 dB
Polarization Extinction Ratio PER - 18 dB -
Noise Figure NF - 7.5 dB 9 dB
Forward Voltage VF - 1.3 V 1.6 V
Chip Length - - 1.5 mm -
Waveguide Refractive Index - - 3.2 -
TEC Operation (Typical/Max @ TCASE = 25/70 °C)
TEC Current ITEC - 0.13 A 1.5 A
TEC Voltage VTEC - 0.28 V 4.0 V
Thermistor Resistance RTH - 10 kΩ -
  • The maximum amount of CW power that can be extracted is approximately 3 dB higher than the saturation power. Please see the Optical Amplifiers tab for more information.
Item # Symbol SOA1013S SOA1117S and SOA1117P
Min Typical Max Min Typical Max
Operating Current IOP - 500 mA 750 mA - 500 mA 600 mA
Operating Wavelength Range   1528 nm - 1562 nm 1528 nm - 1562 nm
Center Wavelength λC - 1500 nma - - 1550 nm -
Saturation Output Powerb (@ -3 dB) PSAT 12 dBm 14 dBm - 6 dBmc 9 dBmc -
Small Signal Gain (Over C-Band @ Pin = -20 dBm) G 10 dB 13 dB - 15 dB 20 dB -
Gain Flatness (Over C-Band @ Pin = -20 dBm) ΔG - 5 dB 7 dB - - -
Gain Ripple (p-p) @ IOP, λC δG - 0.1 dB 0.5 dB - 0.2 dB 0.5 dB
Polarization Dependent Gain PDG - 1.0 dB 1.8 dB - 1 dB 2.5 dB
Noise Figure NF - 8 dB 9.5 dB - 10 dB 11.5 dB
Forward Voltage VF - 1.6 V  1.8 V - 1.4 V 2.0 V
Chip Length - - 1.5 mm - - 1.0 mm -
Waveguide Refractive Index - -  3.2 - - 3.2 -
TEC Operation (Typical/Max @ TCASE = 25/70 °C)
TEC Current ITEC - 0.23 A 1.5 A - 0.2 A 1.5 A
TEC Voltage VTEC - 0.5 V 4.0 V - 0.4 V 4.0 V
Thermistor Resistance RTH - 10 kΩ - - 10 kΩ -
  • The center wavelength of 1500 nm was selected because this center wavelength yields the specified saturation power for the specified operating wavelength range of 1528 - 1562 nm.
  • The maximum amount of CW power that can be extracted is approximately 3 dB higher than the saturation power. Please see the Optical Amplifiers tab for more information.
  • Saturation output power specified across operating wavelength range.
Item # Symbol BOA1007C and BOA1007H
Min Typical Max
Operating Current IOP - 600 mA 750 mA
Central Wavelength λC 1530 nm 1550 nm 1580 nm
Optical 3 dB Bandwidth BW 80 nm 85 nm -
Saturation Output Powera (@ -3 dB) PSAT 15 dBm 18 dBm -
Small Signal Gain (@ PIN = -20 dBm, λ = 1550 nm) G 26 dB 30 dB -
Gain Ripple (RMS) @ IOP δG - 0.05 dB 0.3 dB
Polarization Extinction Ratio PER - 18 dB -
Chip Noise Figure NF - 6.0 dB 8.0 dB
Forward Voltage VF - 1.3 V 1.6 V
Chip Length L - 1.5 mm -
Waveguide Refractive Index   - 3.2 -
Lateral Beam Exit Angle ΘEXT - 19.5° -
Beam Divergence Angle (FWHM)
Transverse ΘT 26° 34° 42°
Lateral ΘL 10° 14° 30°
  • The maximum amount of CW power that can be extracted is approximately 3 dB higher than the saturation power. Please see the Optical Amplifiers tab for more information.
Stabilized Light Source Comparison
Click to Enlarge

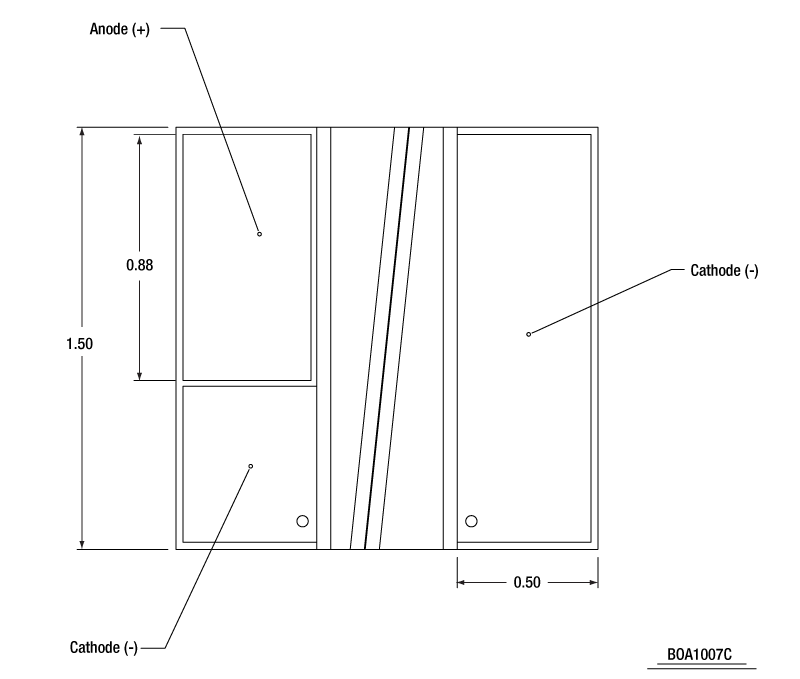

Figure 1: Diagram of the BOA1007C (top down view). The anode and cathode sections of the chip are highlighted here. Please note that the BOA1007H has the same chip structure, and thus, its anode and cathode sections can be similarly determined.

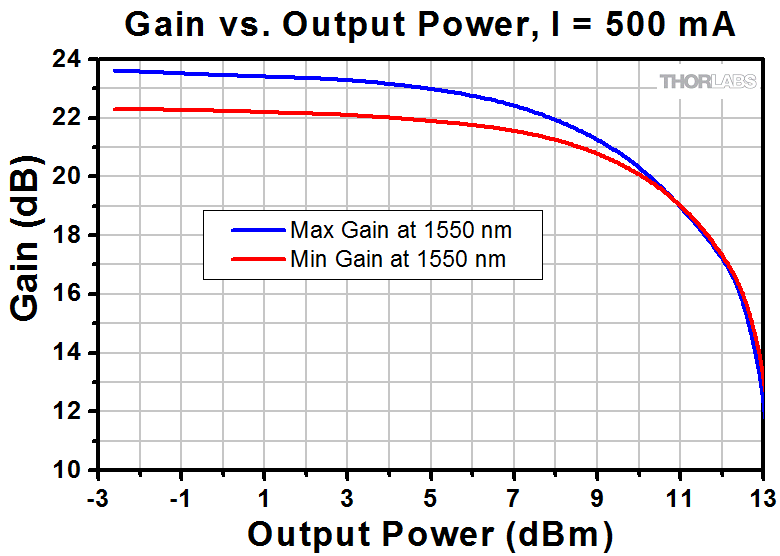

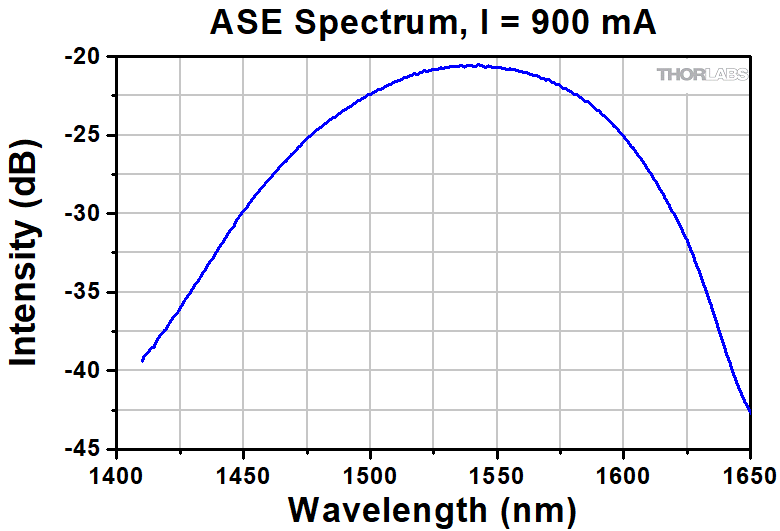

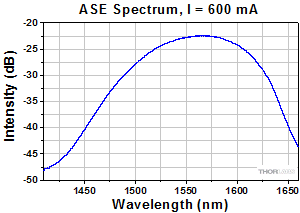

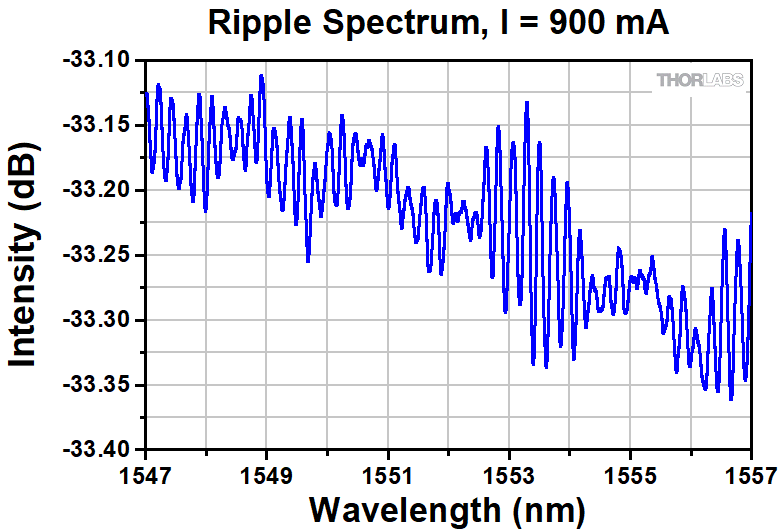

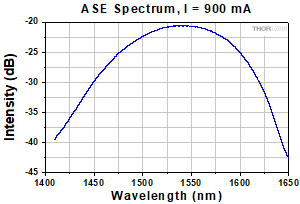

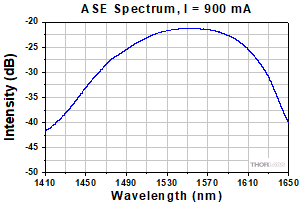

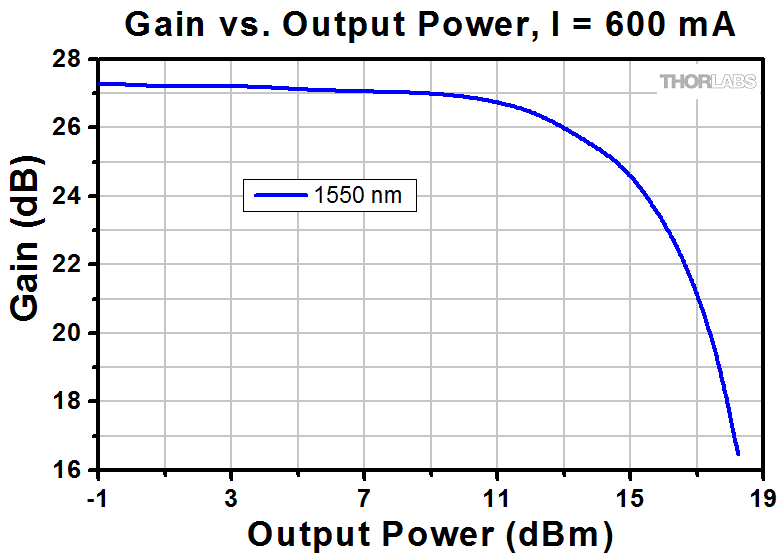

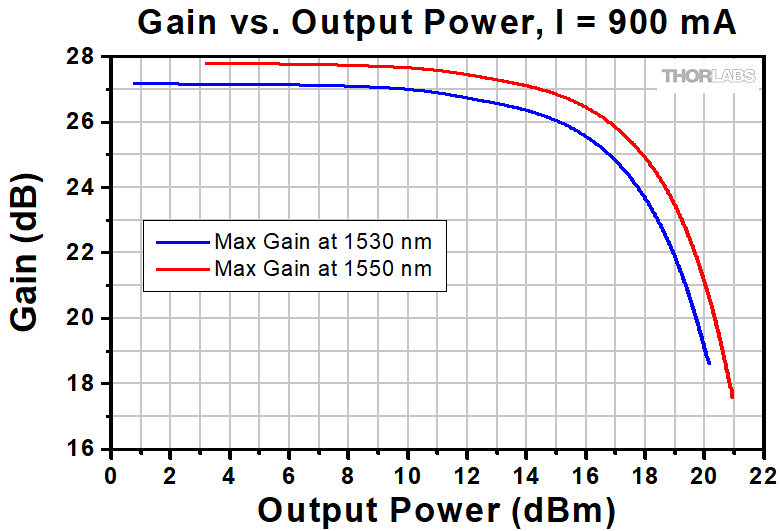

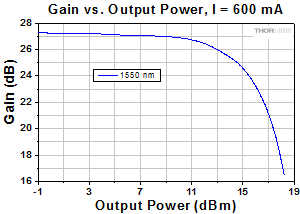

Note: All plots illustrate typical performance, and individual units may have slightly different performance, within the parameters outlined on the Specs tab.

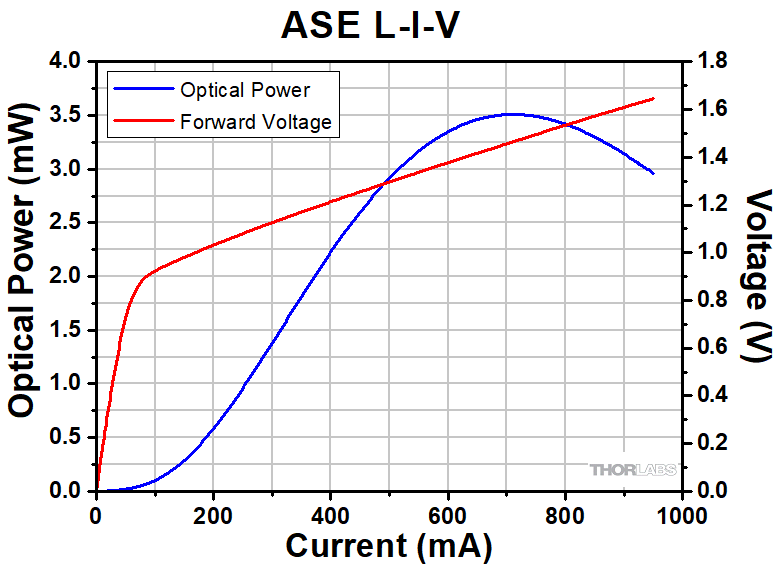

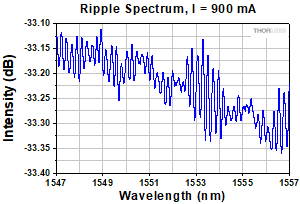

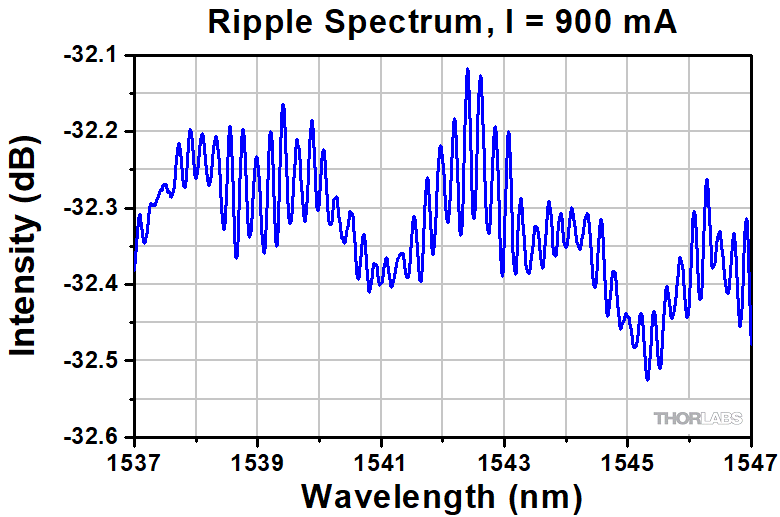

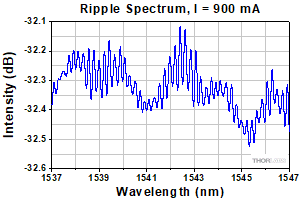

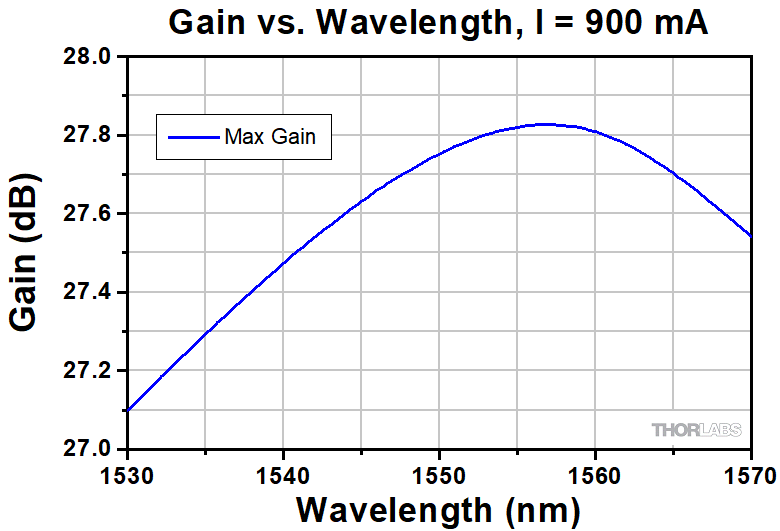

BOA1004S and BOA1004P Graphs

SOA1013S Graphs

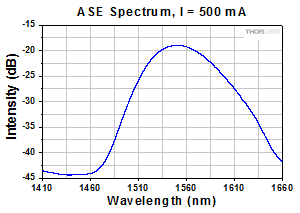

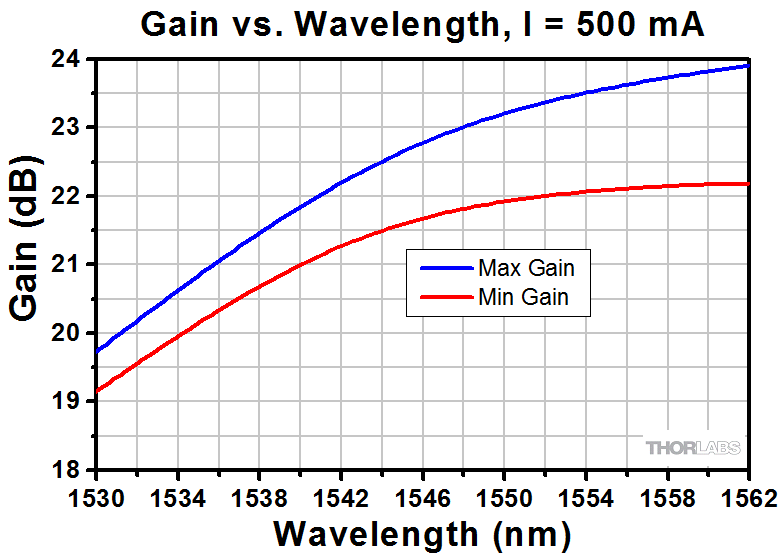

 SOA1117S and SOA1117P Graphs

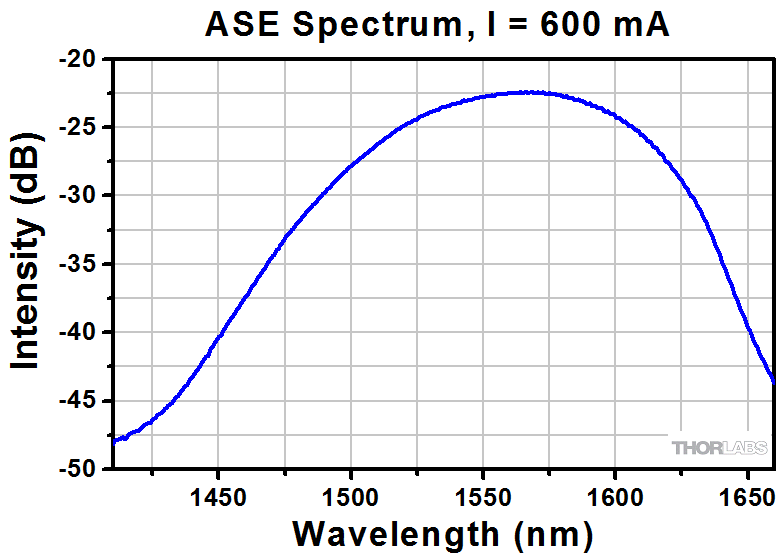

BOA1007C and BOA1007H Graphs

Pin out

Comparison of a SOA to a standard Fabry-Perot Laser Diode

Semiconductor Optical Amplifiers (SOAs and BOAs) are similar in design to Fabry-Perot Laser Diodes. The difference being that Fabry-Perot laser diodes have reflective coatings on both end faces of the semiconductor chip. The optical feedback from the end faces establishes a cavity in which lasing can occur. SOAs and BOAs have an anti-reflection (AR) coating on both end faces of the semiconductor chip. The AR coatings limit the optical feedback into the chip so that lasing does not occur.

As is typical for all amplifiers, SOA/BOAs operate in two regimes: a linear, flat, constant gain regime and a non-linear, saturated output regime. When used to amplify a modulated signal, the linear regime is typically used to eliminate pattern-dependent distortion, multi-channel cross-talk and transient response issues common to EDFAs. The non-linear regime is used to take advantage of the highly non-linear attributes of the semiconductor gain medium (cross-gain modulation, cross phase modulation) to perform wavelength conversion, optical 3R regeneration, header recognition, and other high-speed optical signal processing functions.

For a CW input signal, the maximum amount of power that can be produced by the amplifier while remaining in the linear regime is given by Ppeak. The amount of power produced by the amplifier is determined by the saturation output power, Psat. Note that in the graph below, Ppeak is the maximum output power in the linear regime, and Psat is the saturation output power in the non-linear regime. Psat is defined as the output power at which the small-signal gain has been compressed by 3 dB. The maximum amount of CW power that can be extracted is approximately 3 dB higher than the saturation power.

SOA Linear verse Non-linear Regimes
